Alignment (continued)
Aligning Belt To Miter Gauge Slot
The sanding belt is installed at the factory;
however, check and make sure the belt is
parallel to the miter gauge groove:
1. Use a combination square to check the
distance from the miter gauge groove

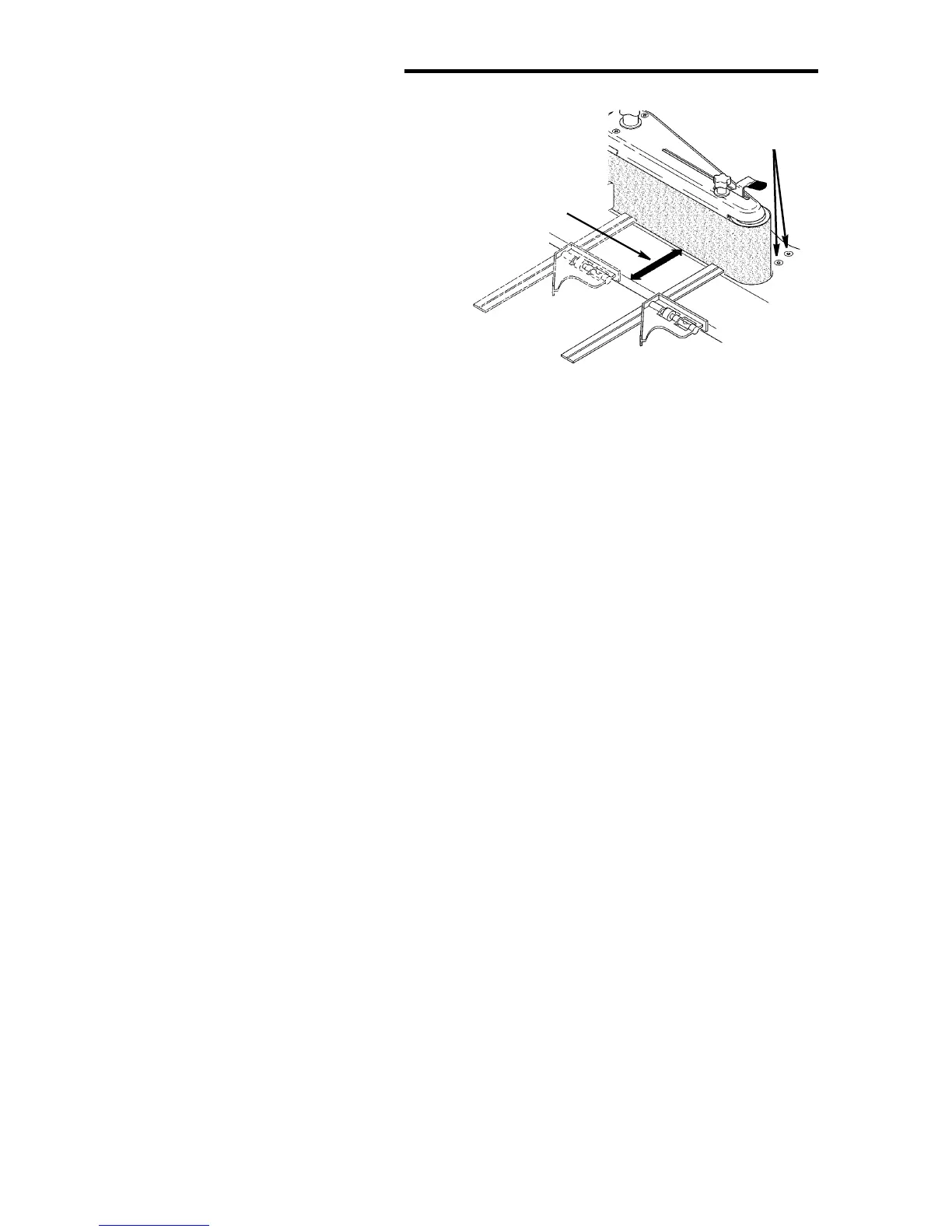

to the belt assembly as shown.
2. If adjustment is required, use a 5/32
inch hex “L” wrench provided with unit
to loosen the two flat head socket
recess screws on the table.
3. Adjust the bed assembly as needed to
make it parallel or same distance to the
miter gauge slot.
4. Tighten two screws.
Adjust Bed
Socket Recess
Screws
Assembly
Parallel to
Miter Gauge
Slot
