Miter Cut

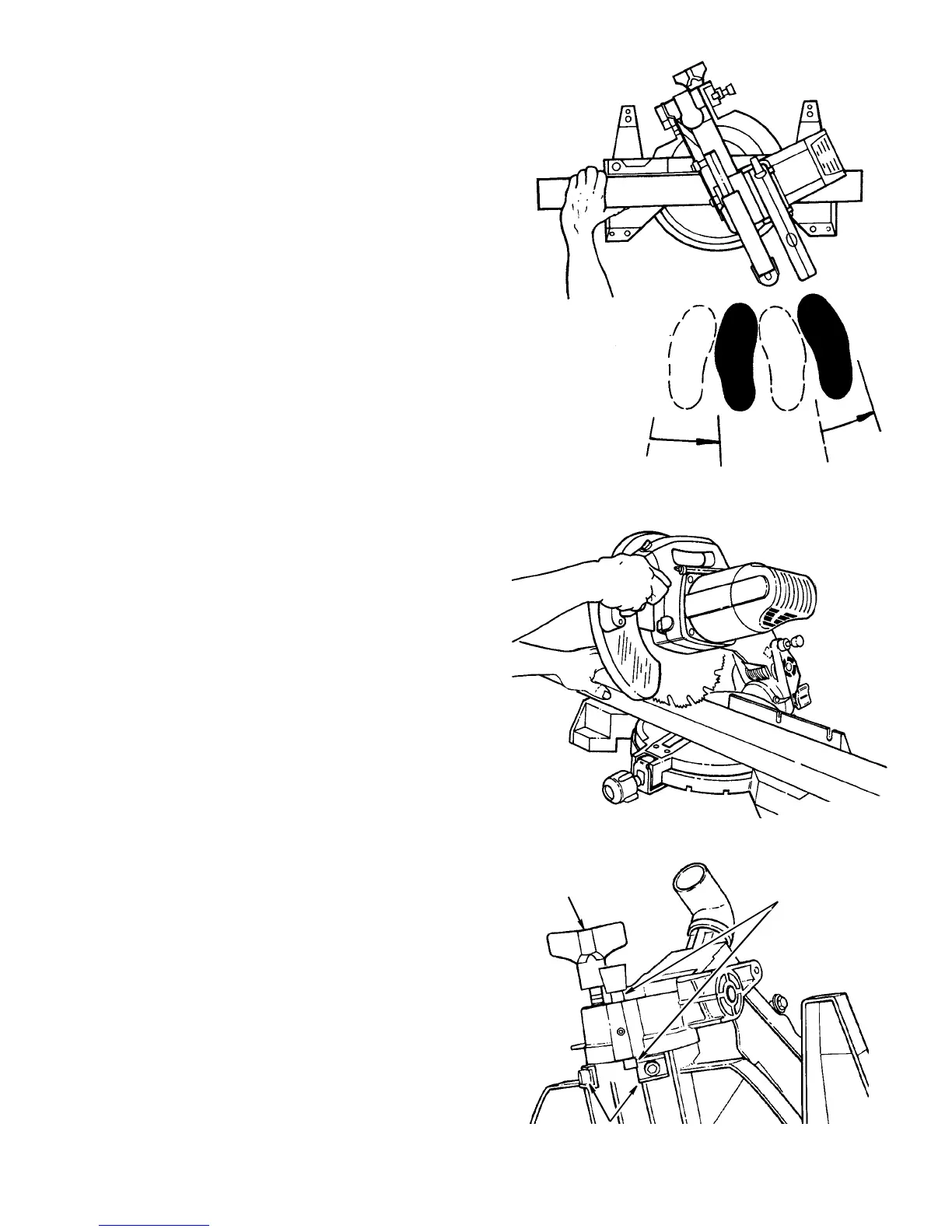

When a miter cut is required, loosen the miter lock knob,
depress the index spring, and move the saw to the
desired angle. Retighten miter lock knob. Do not stand in
front of the saw table. Move with the handle to the miter
angle to make the cut.
Bevel Cut
When a bevel cut is required, loosen bevel lock knob and
tilt the blade to desired bevel angle. Lock the bevel lock
knob. Stand to the left side of the handle to make the cut.
Overriding the Bevel Stops
Use the 0° and 45° bevel stops for precise, repeatable
bevel indexing.
Occasionally, when cutting a bevel or compound cut, you
may need to set the bevel angle a small amount beyond
the 0° or 45° bevel stop. This is very easily done by pull-
ing the bevel index pin out and locking the bevel knob.
Move feet
with
Miter Angle
Bevel Lock
Knob
Bevel Index
Pin
Bevel Index
Stops
Rear, Bottom
View From Back
To Next Page
