RIDGID MS1050 - Repair Parts (continued); Figure 3 - Pivot Assembly

31
Repair Parts
Parts List For RIDGID 10" Compound Miter Saw
Model No. MS10502
RIDGID parts are available on-line at www.ridgidparts.com

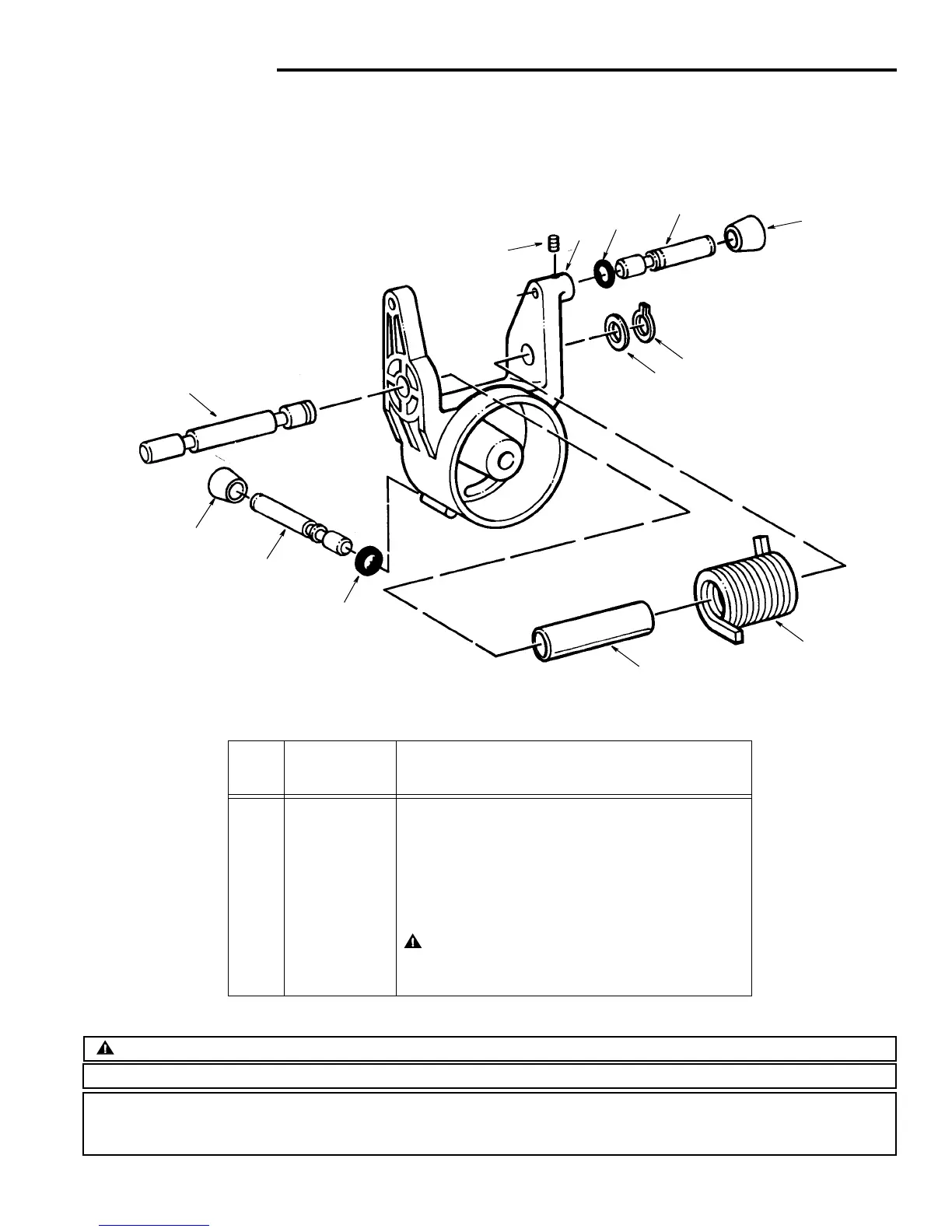

Figure 3 - Pivot Assembly
Always order by Part Number — Not by Key Number
Key
No.
Part No. Description
1
2
3
4
5
6
7
8
9
10
803309-2
828504
821421-2
826058
826357
805606
803899-5
823328
823298-1
823301
Screw Set Hex Soc. Locking 10-32 x 3/8
Pivot
O-Ring
Shaft Stop
Knob
Ring Retaining
Washer Thrust
• ‡ Spring Torsion
Spacer Spring
Shaft Pivot
1
2
3
4
5
6
7
8
10
3
4
9
5
* Standard hardware - may be purchased locally
WARNING: These items are important to the safety of this tool. Do not substitute common parts.
‡ CAUTION: See mechanical assembly caution on page 31.
• WARNING: Uncontrolled spring release or misinstallation of these parts may create a hazard unless
repair is done by a qualified service technician. Repair service is available from authorized RIDGID Ser-
vice Center.
