Repair Parts
Parts List for 13" Thickness Planer
Model No. TP13002
RIDGID parts are available on-line at www.ridgidparts.com

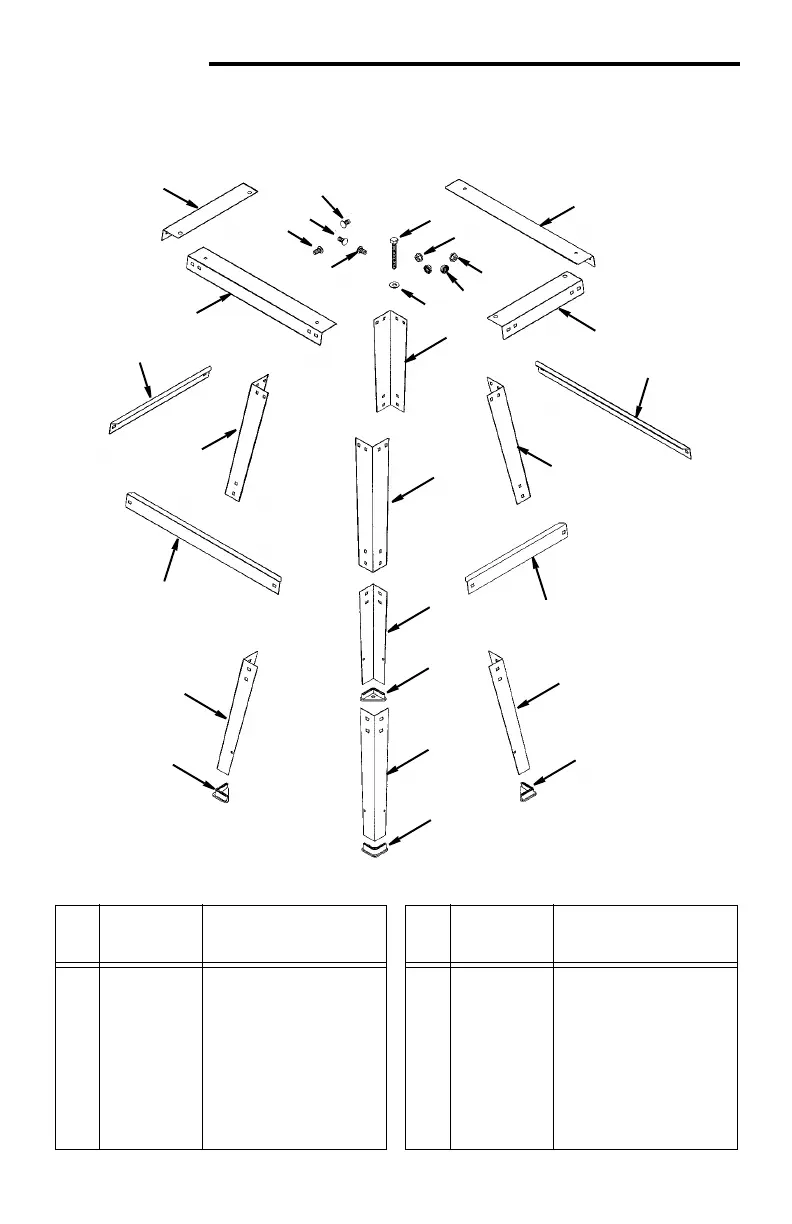

Figure 4 - Legstand
Always order by Part Number - Not by Key Number
* Standard Hardware Item - May be purchased locally
1
2
3
6
7
9
10
11
5
4
8
7
7
7
5
4
3
3
3
6
6
6
1
2
9
9
11
11
11
Key
No.
Part No. Description
1
2
3
4
5
6
7
829635
829636
829634
829637
829638
829633
829632
Stiffener Upper Long
Stiffener Upper Short
Leg Upper
Stiffener Lower Long
Stiffener Lower Short
Leg Lower
Foot
Key
No.
Part No. Description
8
9
10
11
813310-10
829631
821063-2
821103
Screw Hex
M8 x 1.25-65
Nut Hex Flanged
M8 x 1.25
Washer
M8 x 16 x 1.6
Bolt Cup Sq Neck
M8 x 1.25
