COMPLETE ASSEMBLY

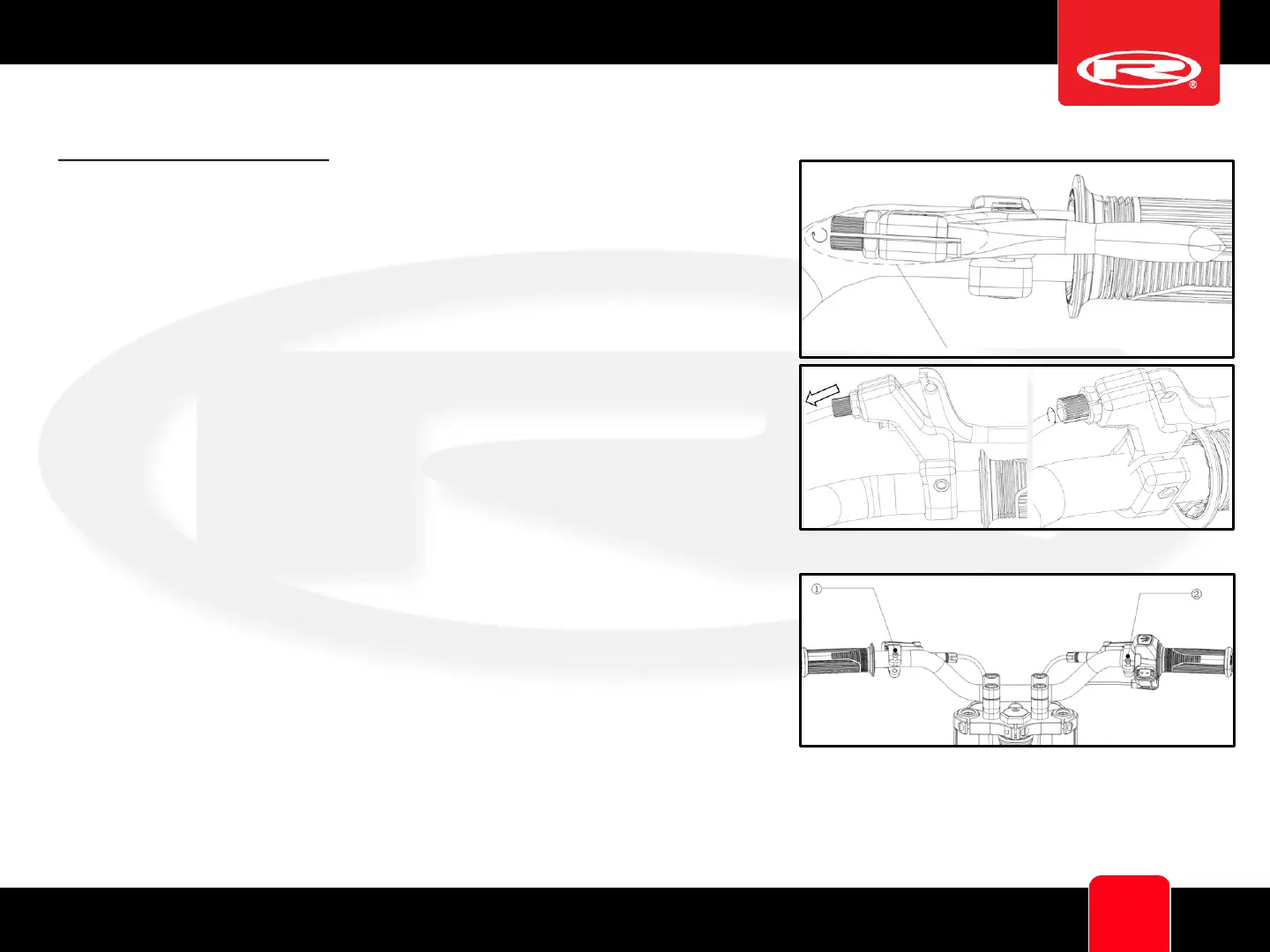

Brake Installation Diagram
Brake Cable Installation
For model MX-12: Rotate the brake lever adjustment screw to align the
opening with the cable outlet. Insert the brake cable head into the cable
head seat of the brake lever. Pull the cable core into the brake lever
outlet with a force. Finally, rotate the opening nut half a turn to misalign.
Left and Right Brake Lever Installation
For model MX-14: Use a tool to remove the brake lever fastening
screws. Install the brake lever as shown in the diagram and pre-
tighten. Move the left brake lever to 20-25 mm from the handlebar
grip and adjust to a suitable angle. Use a tool to tighten screw ① (8-
10 Nm). Move the right brake lever to 10-15 mm from the throttle
grip and adjust to a suitable angle. Use a tool to tighten screw ②(8-
10 Nm).
Outlet
