RIEJU MX - Front Mudguard Installation; Front Wheel Installation

…for everyday adventure
MX
9
COMPLETE ASSEMBLY

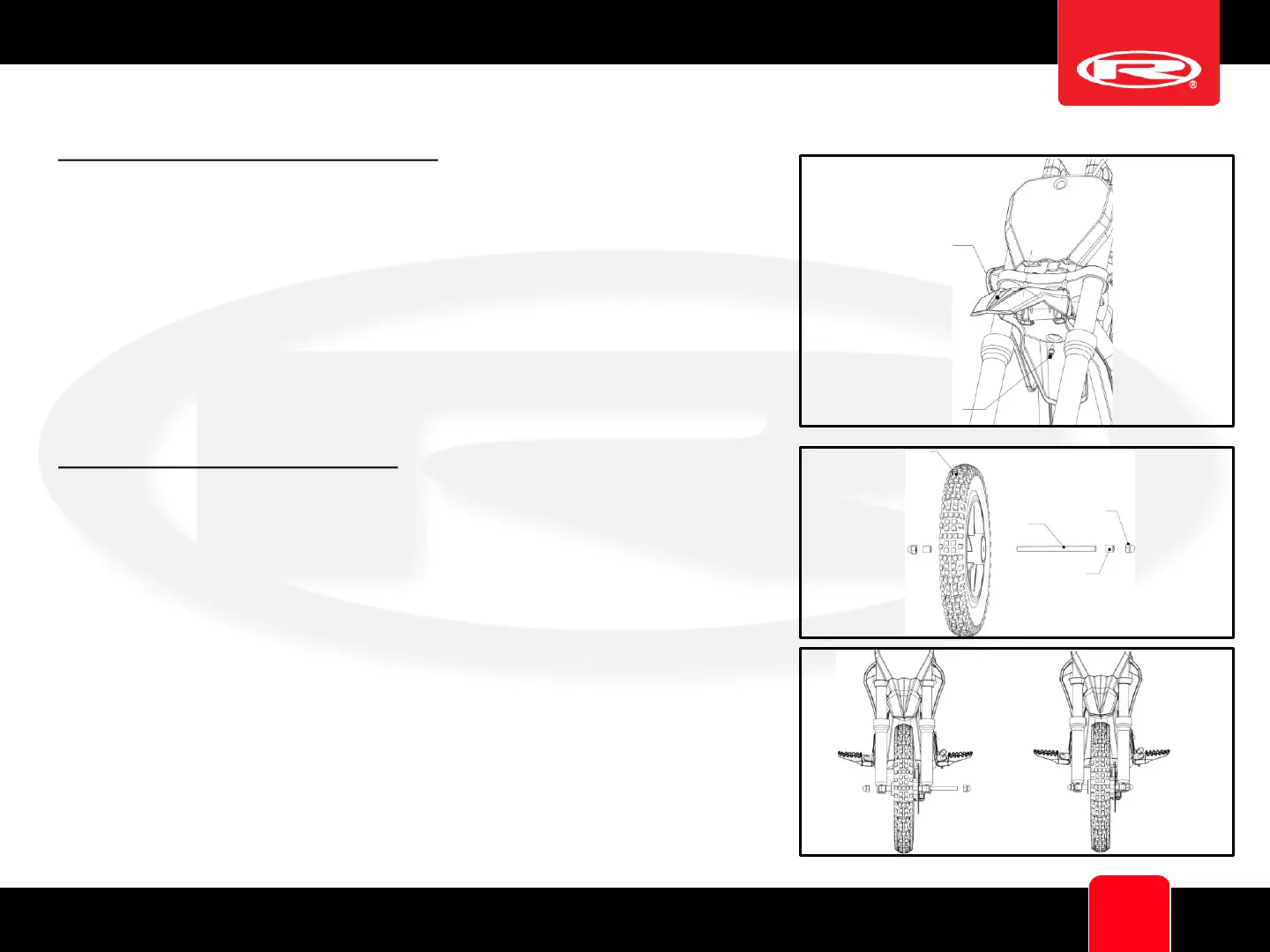

Front Mudguard Installation Diagram
Align the front mudguard limiter buckle towards the back and attach it to
the lower fork board. Insert the limiter post of the front mudguard into
the inner limiter hole of the number plate. Use a tool to tighten the front
mudguard screw into the lower fork board mounting hole (8-10 Nm).
Front Wheel Installation Diagram
Place the front wheel in the middle of the front fork gap as shown in
the diagram. Assemble as shown and use a tool to tighten the
mounting nut onto the front wheel axle (25-30 Nm).
Front Fender
Mountingscrew
Front wheel
Front axle
Capnut
Shaftsleeve
Placement
diagram
Front wheels
are installed
