COMPLETE ASSEMBLY

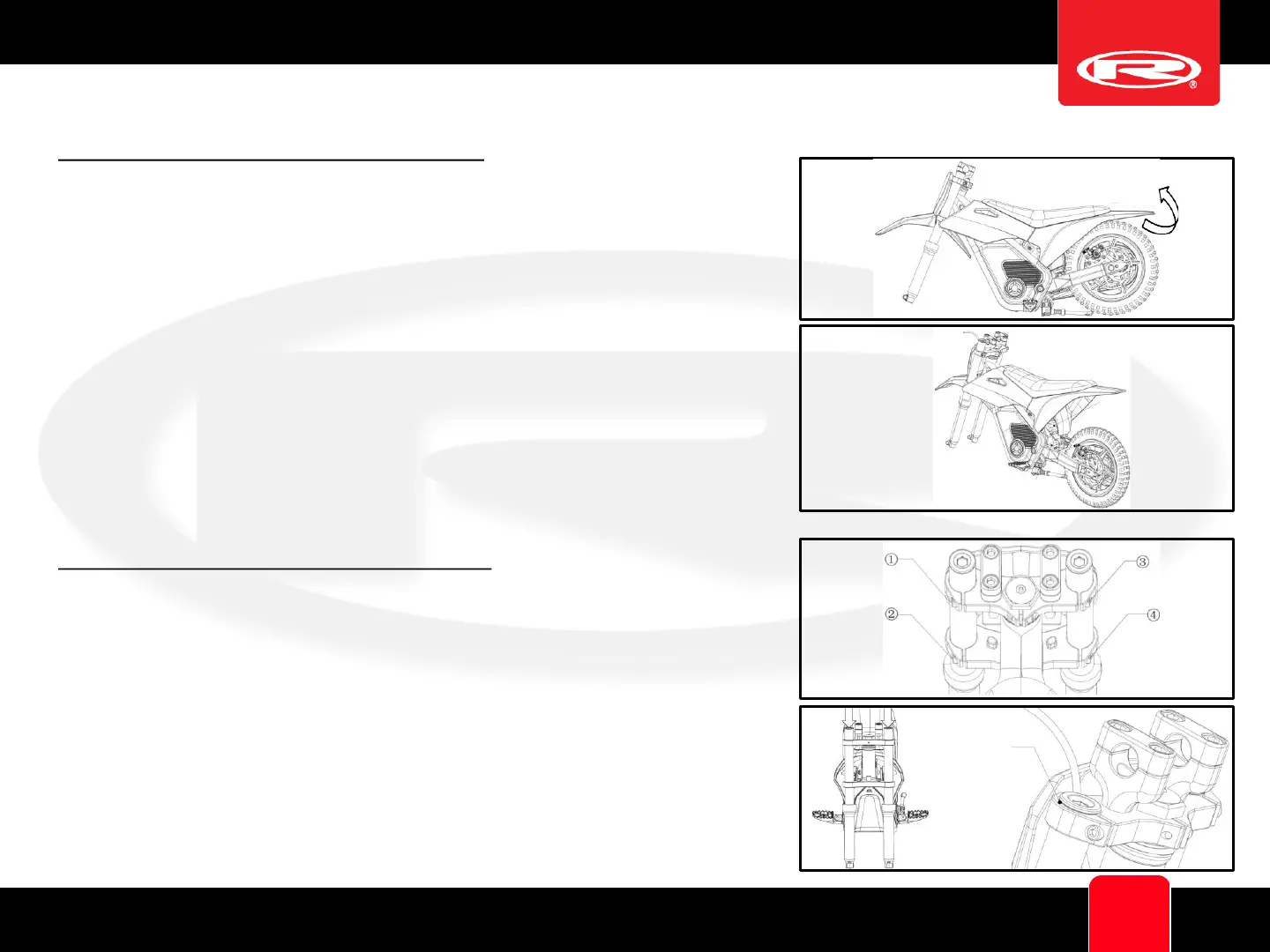

Rear Shock Absorber Installation Diagram
Lift the rear of the bike. Align the lower end of the rear shock absorber
with the mounting hole on the rear fork of the frame. Use a tool to
tighten the rear shock absorber mounting bolt (10-12 Nm).
Front Shock Absorber Installation Diagram
Use a tool to loosen the four fastening screws as shown in the diagram.
Press the front shock absorber down until it is flush with the upper
connecting board. Tighten the four screws(11-13 Nm).
Rearshock
absorber
Rearshock-absorbing
mounting screws
Face flush
