Riello 20034365 - Overall Dimensions; Burner Weight; Technical Data

6
20035512
GB

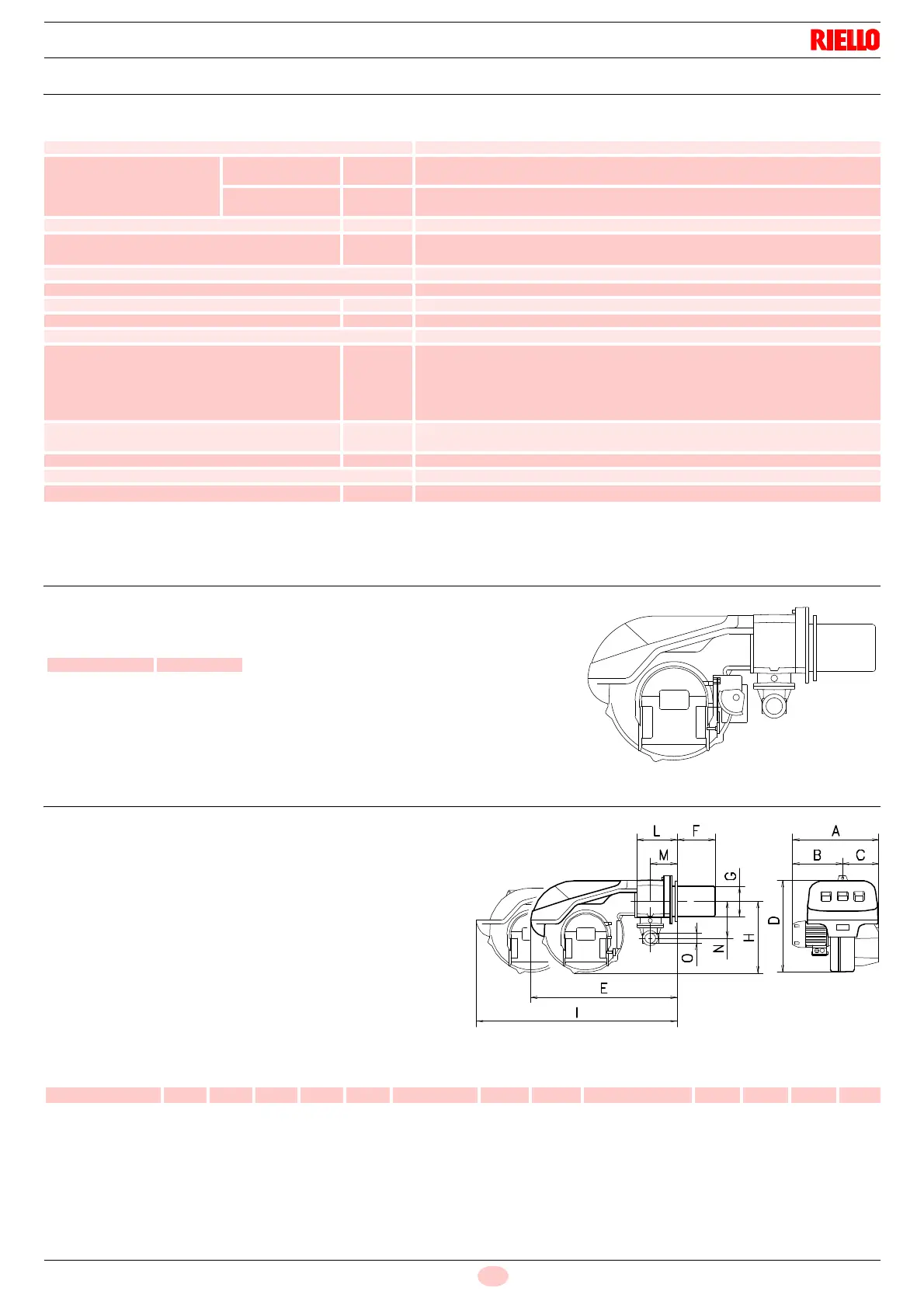

Technical description of the burner
3
3.4 Technical data
(1)
Reference conditions: Ambient temperature 20°C - Gas temperature 15°C - Barometric pressure 1013 mbar - Altitude 0m above sea level.
(2)
Gas pressure on the pipe coupling test point 16) (Fig. 5) with zero pressure in the combustion chamber and at maximum burner output.
(3)
Sound pressure measured in manufacturer's combustion laboratory, with burner operating on test boiler and at maximum output.
3.5 Burner weight
3.6 Overall dimensions
Model RS 100/M
Type 34365X
Output
(1)
maximum
kW
Mcal/h
700 - 1340
602 - 1152
minimum
kW
Mcal/h
150
129
Fuel Natural gas: G20 - G23 - G25
Gas pressure at max. output
(2)
-
Gas: G20/G25
mbar 11,4 - 17,1
Operation Intermittent (min. 1 stop in 24 hours)
Standard applications Boilers: water. steam. diathermic oil
Ambient temperature °C 0 - 40
Combustion air temperature °C max 60
Electrical supply 3 ~ 415 / 240 V 1N ~ 240V +/-10% 50/60 Hz
Fan motor (rating)
Operating current
Acceleration current
rpm
V
kW
A
A
2800
220/240 - 380/415
1,5
5,9 - 3,4
48 - 28
Ignition transformer
V1 - V2
I1 - I2
230 V - 1 x 8 kV
1 A - 20 mA
Absorbed electrical power kW max 1,8
Protection level IP 44
Noise level
(3)
dBA 77
The weight of the burner complete with its packaging is shown in table.
Model kg
RS 100/M 75
Fig. 1
D9078
The dimensions of the burner are shown in Fig. 2.
Bear in mind that inspection of the combustion head requires
the burner to be opened and the rear part drawn back on the
guides.
The dimensions of the open burner are indicated by position I.
D731
(1) Blast tube: short-long
mm ABCDE
F
(1)
GH
I
(1)
LMNO
RS 100/M 527 312 215 555 840 250-385 179 430 1161-1296 214 134 221 2”
Fig. 2
