Riello C9337401 - Electrode Position; Burner Refitting

Installation
21
20026897
GB

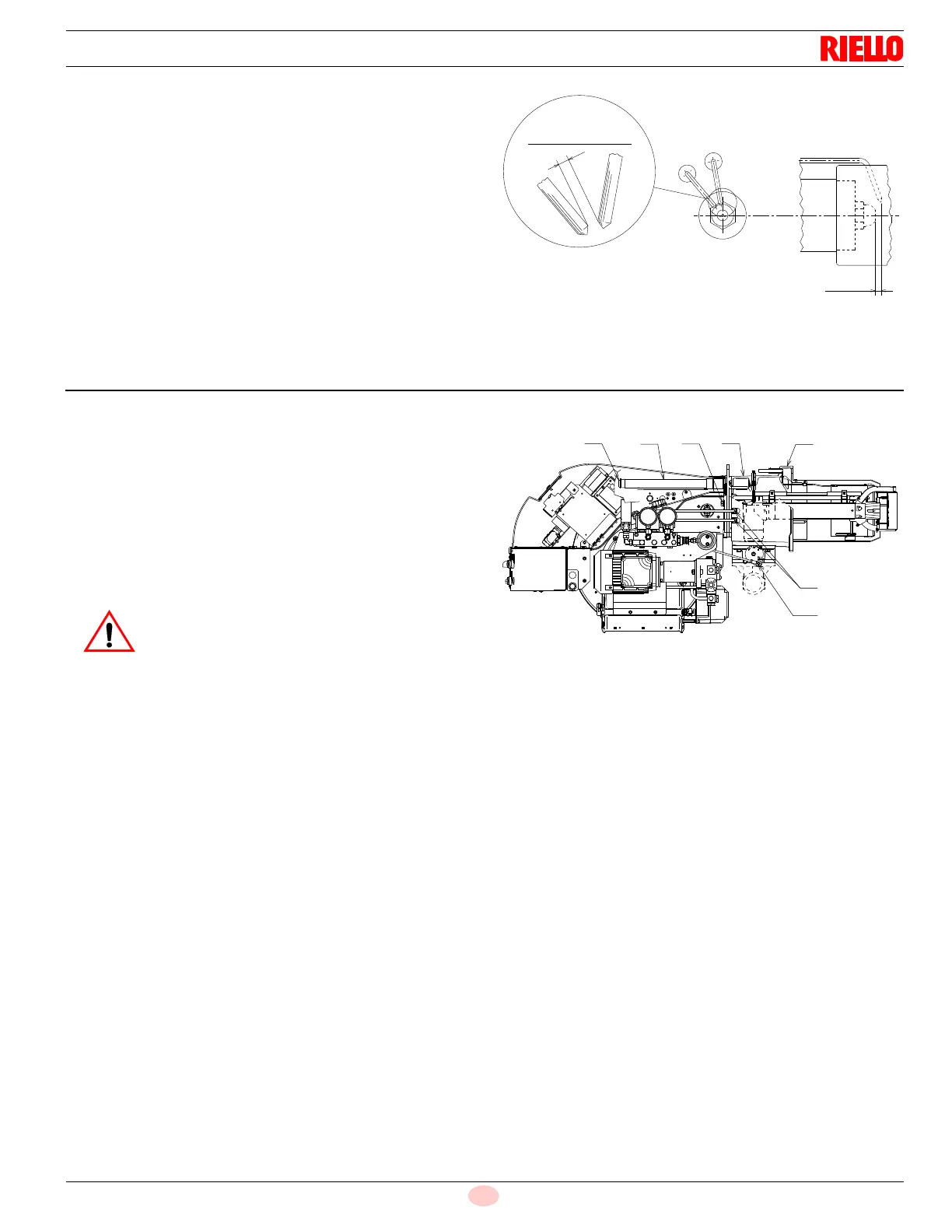

4.8.4 Electrode position
Refer to Fig. 23.
4.9 Burner refitting
 Refit the burner to the slide bars 3) (Fig. 24) at approximately
4” from the sleeve 4) - burner positioned as shown in (Fig. 12,
page 17) - insert the ignition electrode cables.
 Remove the extension bars 31) Fig. 1, page 7.
 Slide the burner up to the sleeve so that it is positioned as
shown in (Fig. 24);
 refit screws 2) (Fig. 24) on slide bars 3) including the safety
plate 15) Fig. 12, page 17;
 secure the burner to the sleeve by tightening screws 1);
 connect the oil pipes again by screwing on the two connectors
6) (Fig. 12, page 17).
3/32"
5
/
3
2
"
t
o
3
/
1
6
"
Fig. 23
D10495
WARNING
When fitting the burner on the two slide bars, it is
advisable to gently draw out the high tension cables
until they are slightly stretched.
2
3
1
4
5
6
14
Fig. 24
D10496
