6.2 Opening the burner
6.2.1 To open the burner
To open the burner proceed sa follows:
 switch off the electrical power;
 loosen screws 1) and withdraw the cover 2);
 disengage the swivel coupling 7) from the graduated sector;
 disconnect the light-oil pipes 8);
 remove screws 3) and pull the burner back by about 4” on the
slide bars. disconnect the electrode leads.
 Install the extension bars 31) Fig. 1, page 7 and re-screw the
2 screws and the safety plate Fig. 12, page 17.
 Pull the burner fully back.
Now extract the internal part 5) after having removed the screw 6).
6.2.2 To close the burner
To close the burner proceed sa follows:
 push the burner until it is about 4” from the sleeve;
 re-connect the leads.
 Remove the extension bars 31) Fig. 1, page 7.
 Slide in the burner until it comes to a stop;
 refit screws 3) and pull the leads gently out until they are
slightly stretched;
 re-couple the swivel coupling 7) to the graduated sector;
 reconnect the light-oil pipes.
 Re-screw the 2 screws and the safery plate Fig. 12, page 17.
2
8
4
1
6
3
7
5

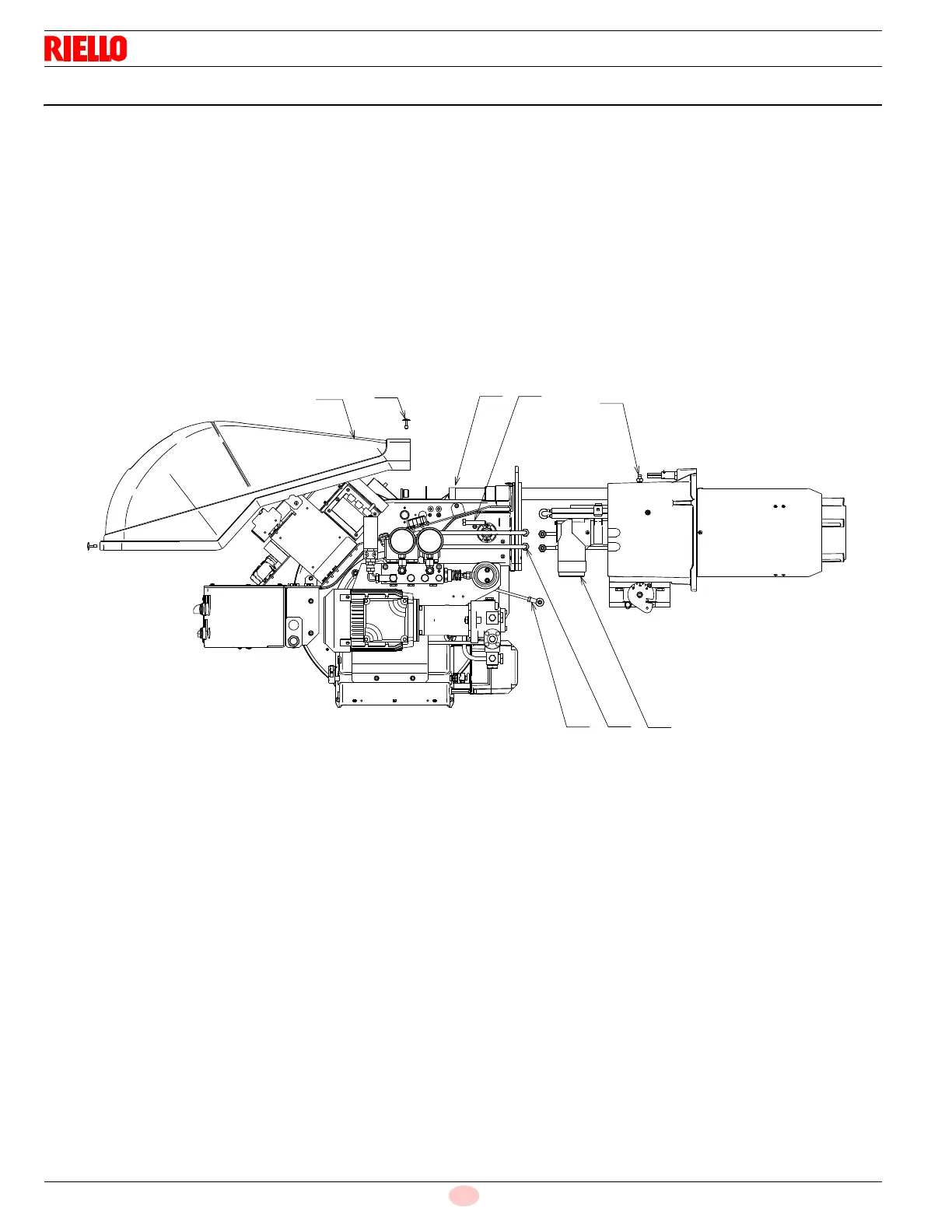

Fig. 48
