Technical description of the burner
4.5 Packaging - Weight
• The burners stands on a wooden base which can be lifted by
fork-lifts. Outer dimensions of packaging are indicated in
Tab. B.
• The weight of the burner complete with packaging is indicat-
ed in Tab. B.
Tab. B

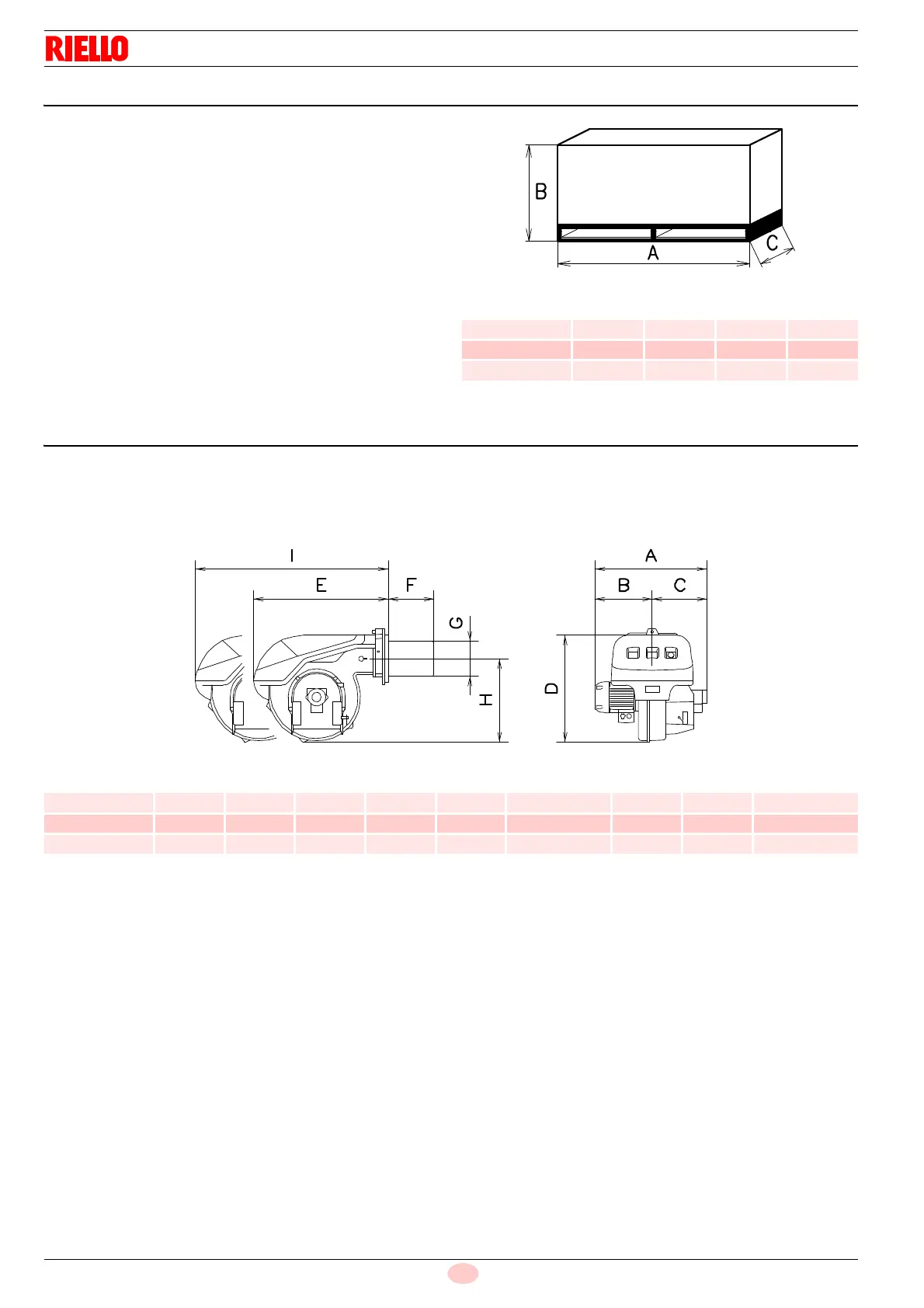

4.6 Overall dimensions
The maximum dimensions of the burner are given in Fig. 2.
Bear in mind that inspection of the combustion head requires the
burner to be opened and the rear part withdrawn on the slide
bars.
The maximum dimension of the burner, without casing, when
open is give by measurement I.
Tab. C
(1)
Blast tube: short - long
mm A B C kg
RL 70/M 1150 600 792 65
RL 100/M 1150 600 792 68
RL 130/M 1150 600 792 71
D36
Fig. 1
mm ABCDE
F
(1)
GH
I
(1)
RL 70/M 663 296 367 555 680 272 - 385 179 430 951 - 1086
RL 100/M 690 312 367 555 680 272 - 385 179 430 951 - 1086
RL 130/M 705 338 367 555 680 272 - 385 189 430 951 - 1086
Fig. 2
D1217
