GB
Installation
4.16 Thermal relay calibration
4.16.1 Electronic thermal relay

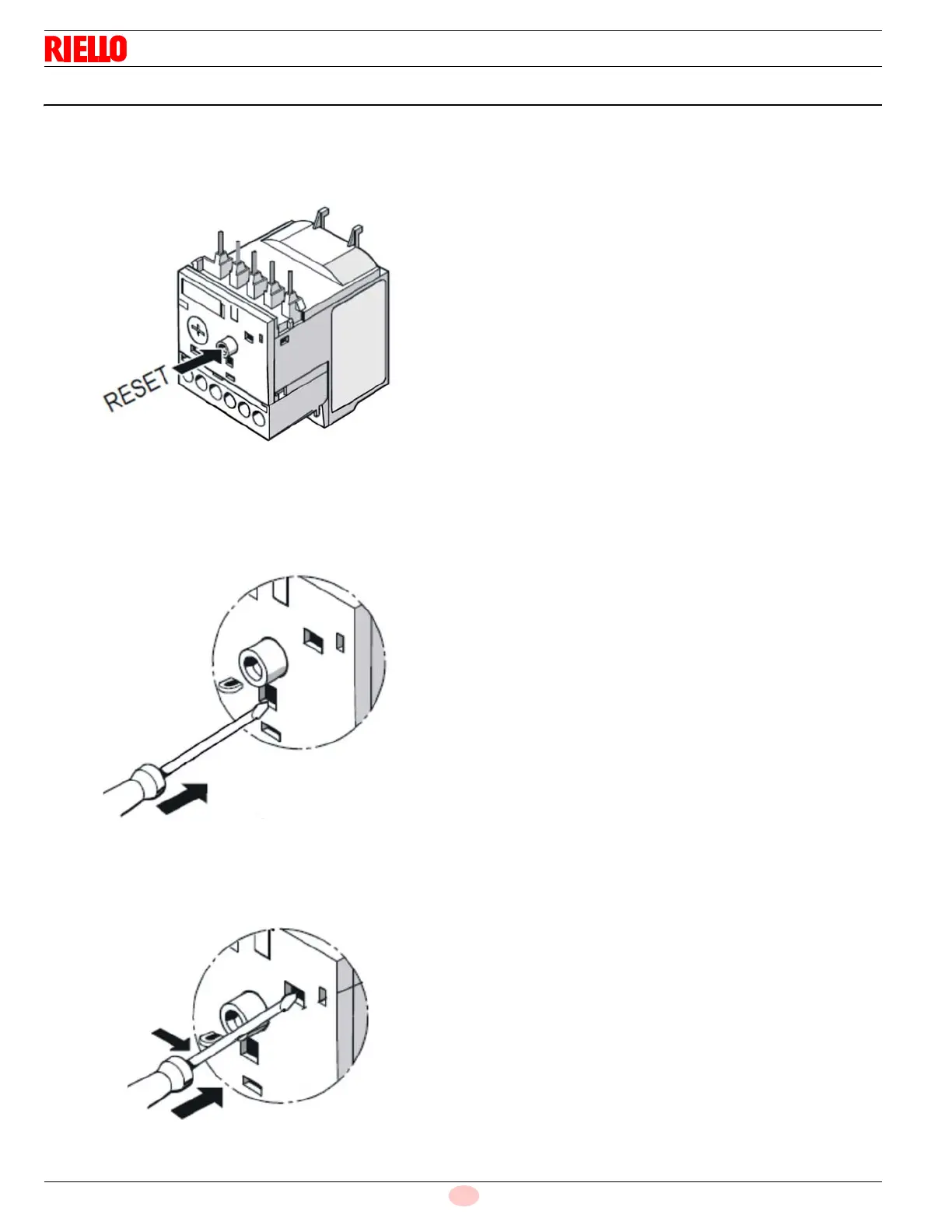

 To reset, in the case of an intervention of the thermal relay,
press the button “RESET” (Fig. 26).
There are two different solution to test the electronic thermal relay:
 Device test (Fig. 22)
Push slowly the button in the window with a little screwdriver.
 Contact test NC (95-96) and NO (97-98)(Fig. 28)
Insert in the window a little screwdriver and move it in the
sense of the arrow.
Fig. 26
S8109
Fig. 27
S8111
S8111
Fig. 28
S8110
