Technical description of the burner

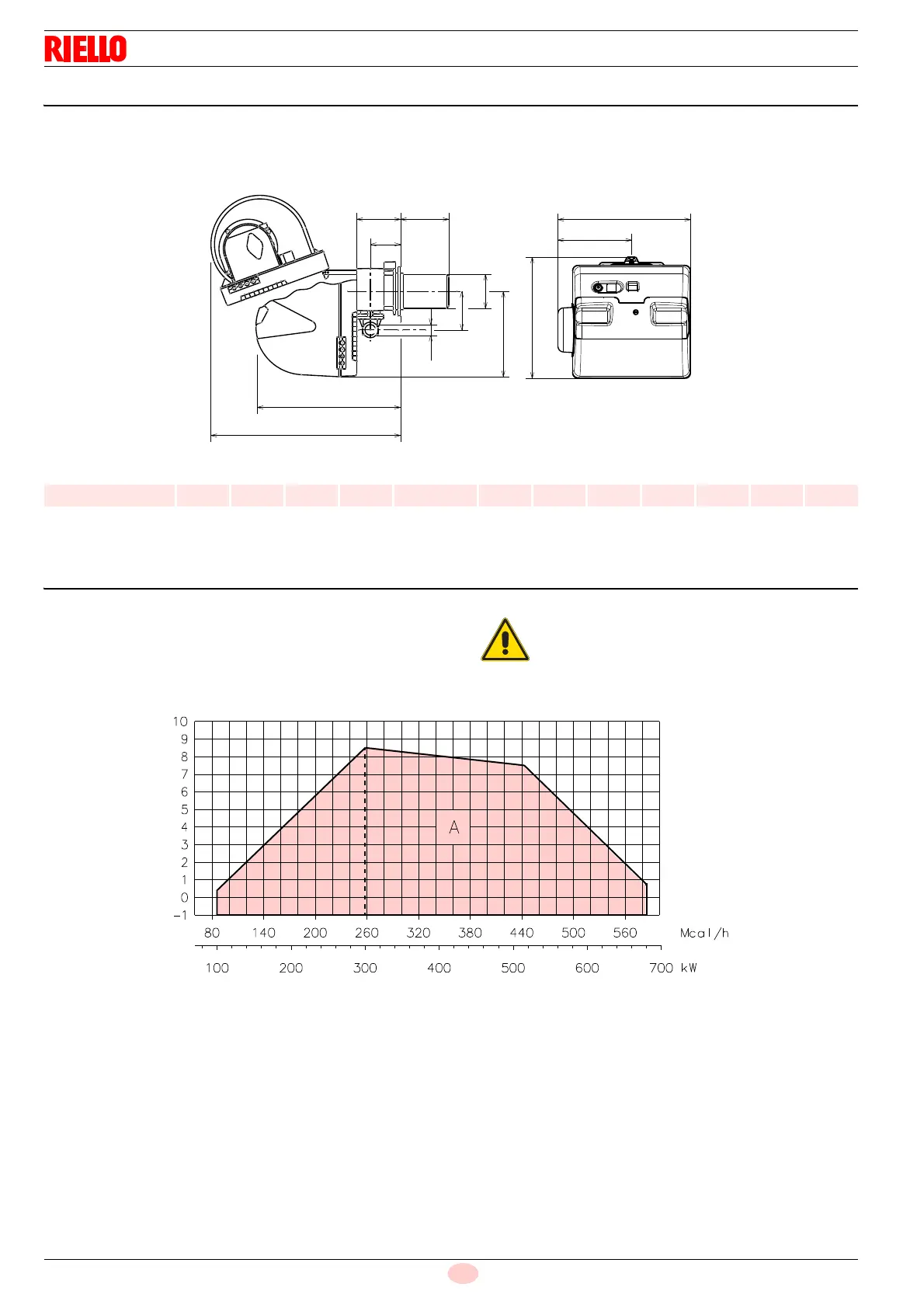

4.6 Maximum dimensions
The dimensions of the burner are shown in Fig. 1.
Bear in mind that inspection of the combustion head requires the
burner to be opened and the rear part drawn back on the guides.
The dimensions of the open burner are indicated by position O.
Tab. E
(1)
Blast tube: short-long
4.7 Firing rate
The maximum output is chosen within area A (Fig. 2).
The minimum output must not be lower than the minimum limit
of the diagram.
mm ABDE F
(1)
HILONVM
RS 55/E BLU 533 300 490 640 255 - 390 189 352 222 870 134 221 2”
A
D
H
I
M
V
E
O
N
L F
B
Fig. 1
D3906
WARNING
The firing rate (Fig. 2) was obtained considering a
room temperature of 20°C and an atmospheric
pressure of 1013 mbar (approx. 0 m above sea
level), with the combustion head adjusted as
shown at page 25.
Fig. 2
D11603
Thermal power
Combustion chamber
pressure - mbar
