Riello RS 55/E BLU - Securing the Burner to the Boiler

20068446
24
GB
Installation
5.7 Securing the burner to the boiler
Separate the combustion head from the rest of the burner, as in
Fig. 17; proceed as follows:
 loosen the screws 3) and remove the cover 1);
 remove the screws 2) from the two guides 5);
 disconnect the plug 14), unscrew the grommet 15);
 remove the screw 4);
 pull back the burner on the guides 5) by about 100 mm;
 disconnect the wires from the probe and the electrode and
then pull the burner completely off the slide bars, after
removing the split pin from the slide bar 5).
 Fix the flange 9) to the boiler plate, interposing the supplied
insulating gasket 8).
 Use the 4 screws supplied, with a tightening torque of 35 -
40 Nm, after protecting their thread with anti-seize products.
Provide an adequate lifting system of the burner.
WARNING
The seal between burner and boiler must be air-
tight; after the start-up, check there is no leakage
of flue gases into the external environment.
14
2
15
12
11
10
8
9
5
13
13
4
3
1
1
0
0
m
m

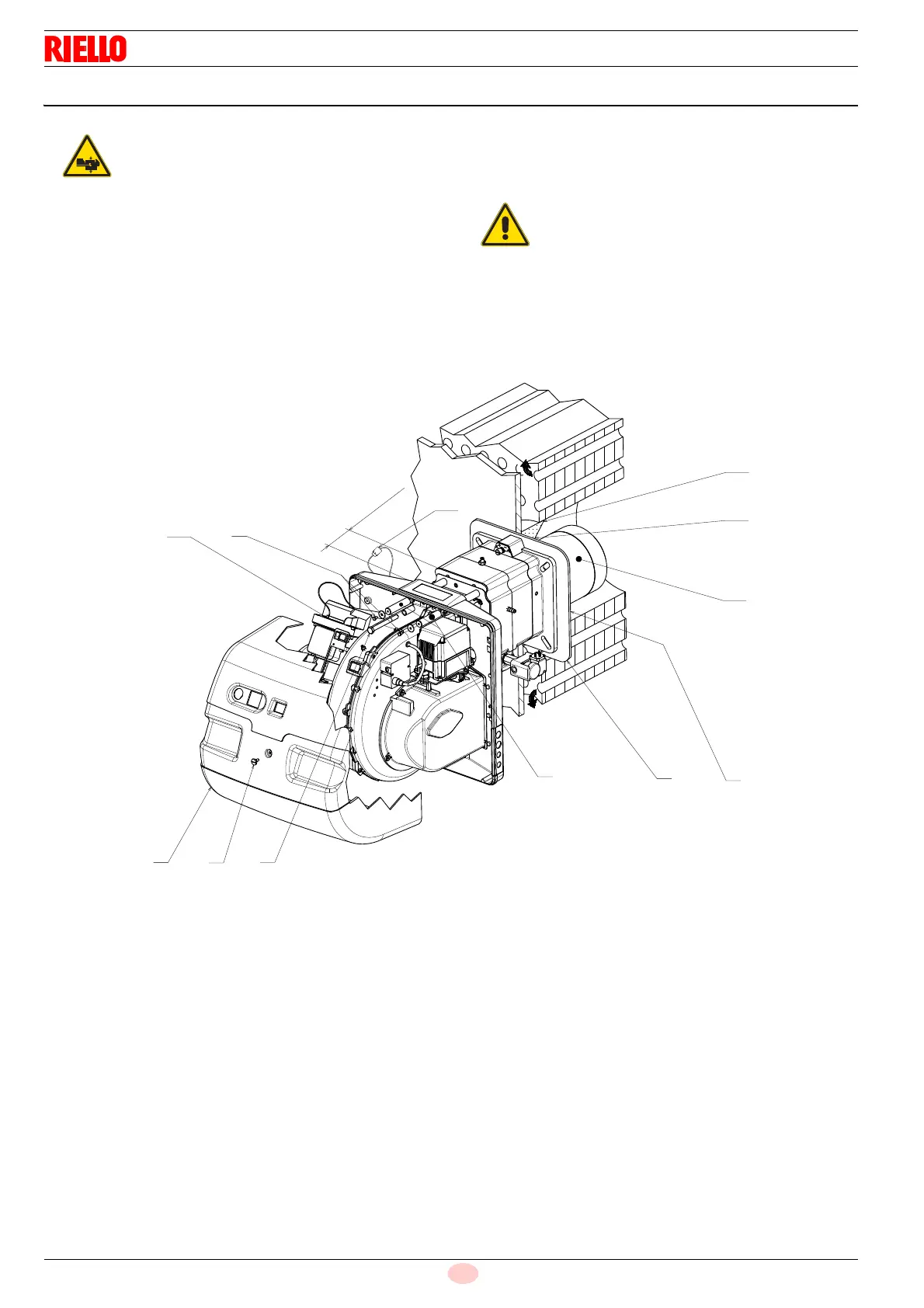

Fig. 17
D8044
