Riello RTQ 91 3S - Door Hinges; Changing the Direction of Door Opening

29
HEATING ENGINEER
The boilers come fitted with 2 hinges that allow the door to open from left to right.
asse
di rotazione
A
A
B
1
2
3
The boiler door hinges are factory fitted on the right of the door. If you need to reverse the direction of opening, remove
the boiler’s side panel and proceed as follows.
1
2
4
5
3
1
6
8
7

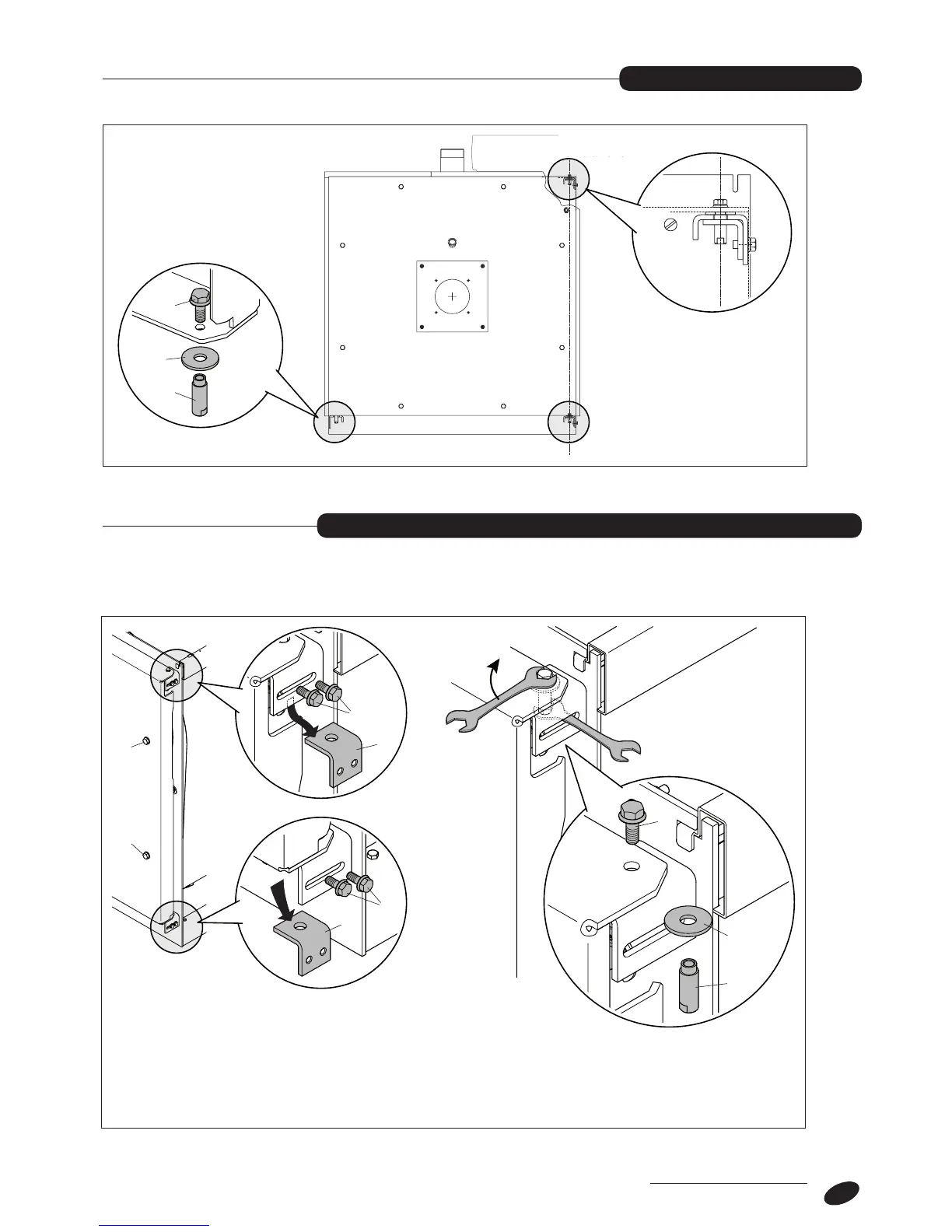

- Make sure that the main door fixing bolts (1) are
securely tightened.
- Remove the top safety bolts (2) and the door stop
bracket (3).
- Remove the bottom safety bolts (4) and the door
stop bracket (5).
- Insert a spanner through the slot in the side of the
top door mounting bracket and hold the bushing (5)
steady.
- Unscrew the top bolt (6), then remove the bushing
(8) and washer (7).
Axis of door
rotation
Changing the direction of door opening
CHANGING THE DIRECTION OF DOOR OPENING
Door hinges
DOOR HINGES
