HEATING ENGINEER
b - Refer to the instruction manuals for the r TECH control panel and for your chosen burner.

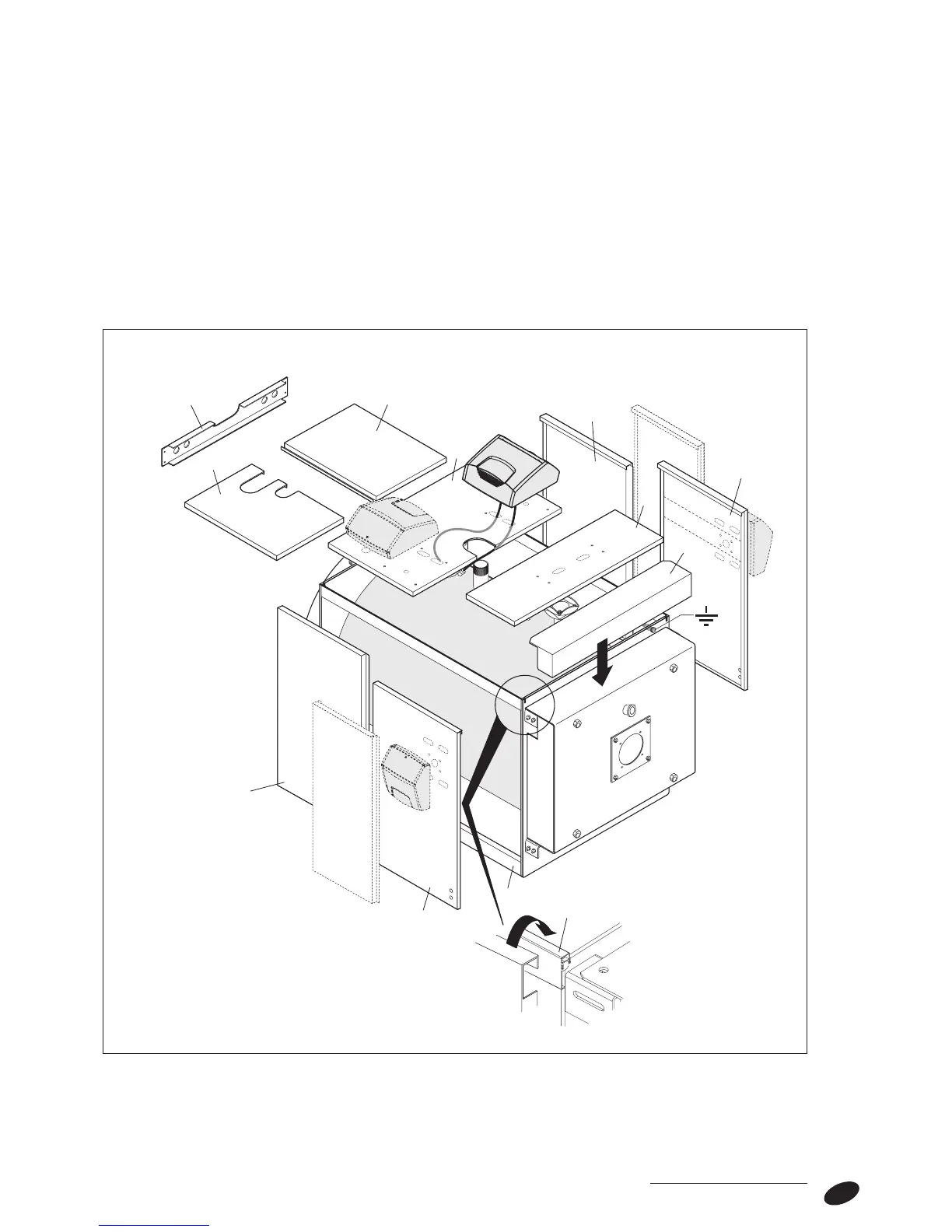

- Engage the bottoms of the rear side (1) and front side
panels (2) in the bottom rails (3), then hook their top lips
over the top rails (4) running between the front and rear
heads.
- Secure the side panels in place with the top cross beam
(5) and the screws provided.
- Fit your chosen control panel to the central top panel (9)
(for models up to RTQ 1600 3S), or on one of the side
panels (2) (for models RTQ 1300-1600-2100-2400 3S), as
instructed in the control panel’s own instruction manual.
- Route the electrical cables and insert the sensors in their
sockets.
- Fit the cable grommets provided into their seats in the
panels.
- Fit, in this order, the rear top panels (7) and (8), then the
central top panel (9) to close the top of the boiler.
- Once all the panels are in place, fit the front cover (10)
over the top of the door.
4
1
2
3
2
1
7
5
8
10
6
9
(*)
(**)
(**)
RTQ 448÷2400 3S
(*) RTQ 766÷2400 3S
(**) RTQ 1100÷2400 3S
