RIGOL Chapter 1 Disassemble and Assemble

1-6

DG4000 Service Guide

Disassemble the Front Panel

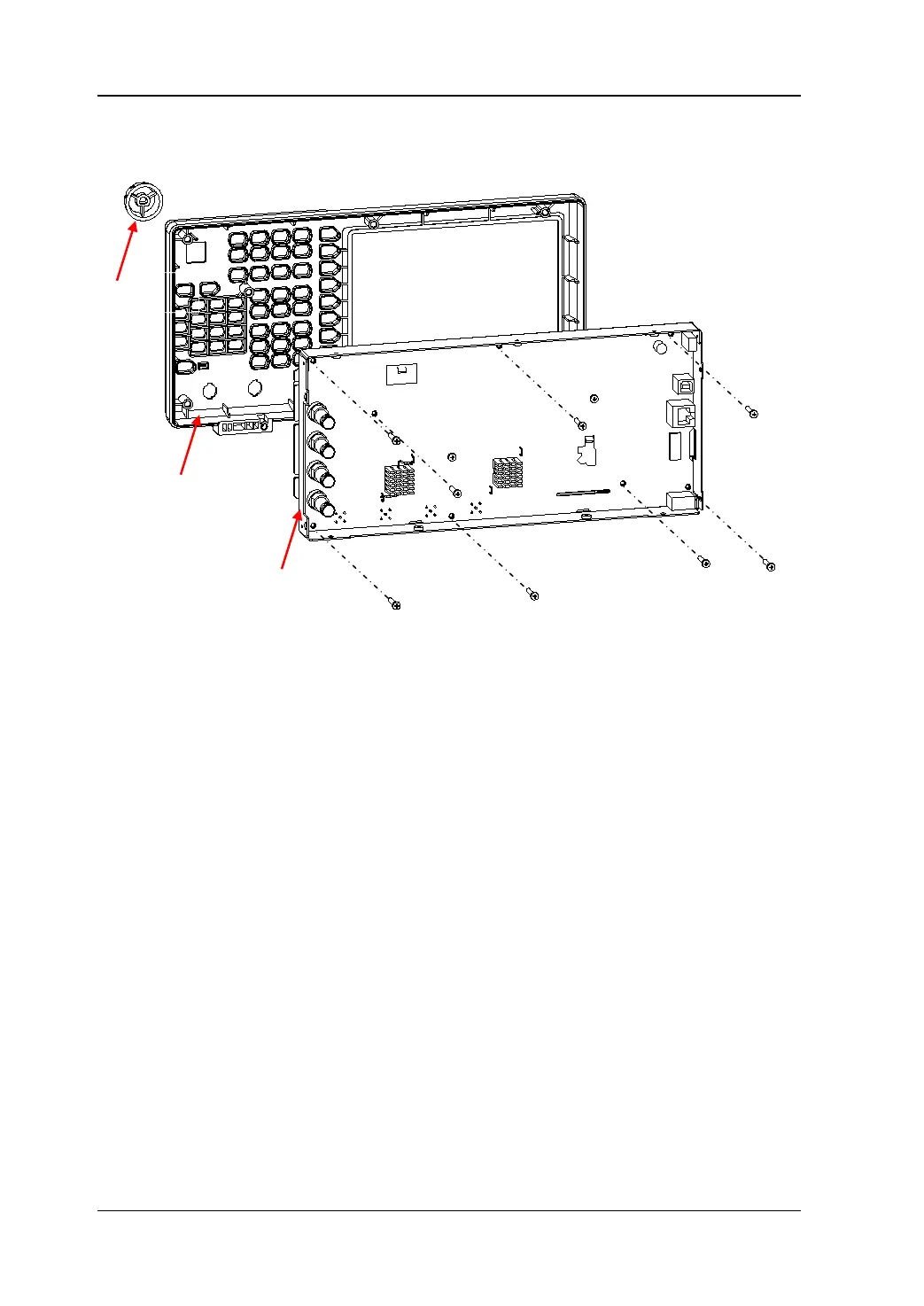

Figure 1-5 Disassemble the Front Panel

Part Explanation:

① 8 screws (M3*18 torx pan head) fixing the front metal panel and the front panel.

Disassemble Steps:

1. Remove the front panel knobs gently.

2. Remove the 8 screws (①) fixing the front metal panel and front panel using the

screw driver (T10).

3. Take off the front panel gently.

Front Panel

Front Metal Panel

①

Knob
