Rigol DP831A User Manual

RIGOL Chapter 3 Remote Control
3-10 DP800 User’s Guide
Remote Control via RS232 (option)
1. Connect the device
Connect the power supply to your LAN using a RS232 cable.
2. Set the RS232 parameters
Press Utility  I/O  RS232 to set the parameters relating to RS232
according to the introduction in "To Set the RS232 Parameters".
3. Add device resource

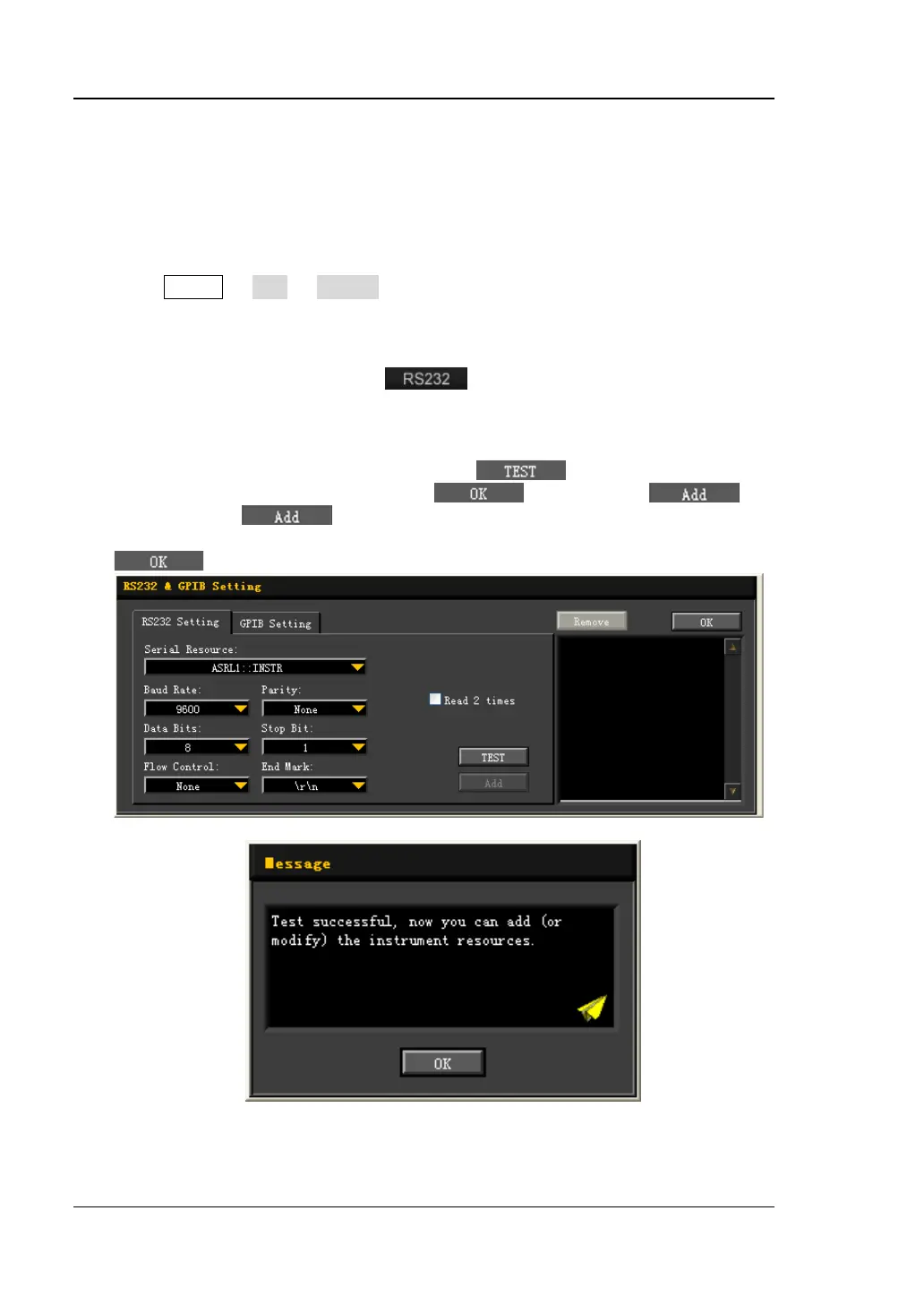

Start up Ultra Sigma and click
to open the window as shown in
figure (a). Select the device resource name to be added and set the
corresponding parameters (such as the baud rate and parity bit) according to
the current RS232 parameter setting of the instrument (Note: \r\n must be
selected as the End Mark). After that, click
and the dialog box as
shown in figure (b) is displayed. Click
; at this point, is
available; click
and the device resource name currently selected will
be displayed at the right of the window (as shown in figure (c)). Click
to add the instrument resource.
(a)
(b)
