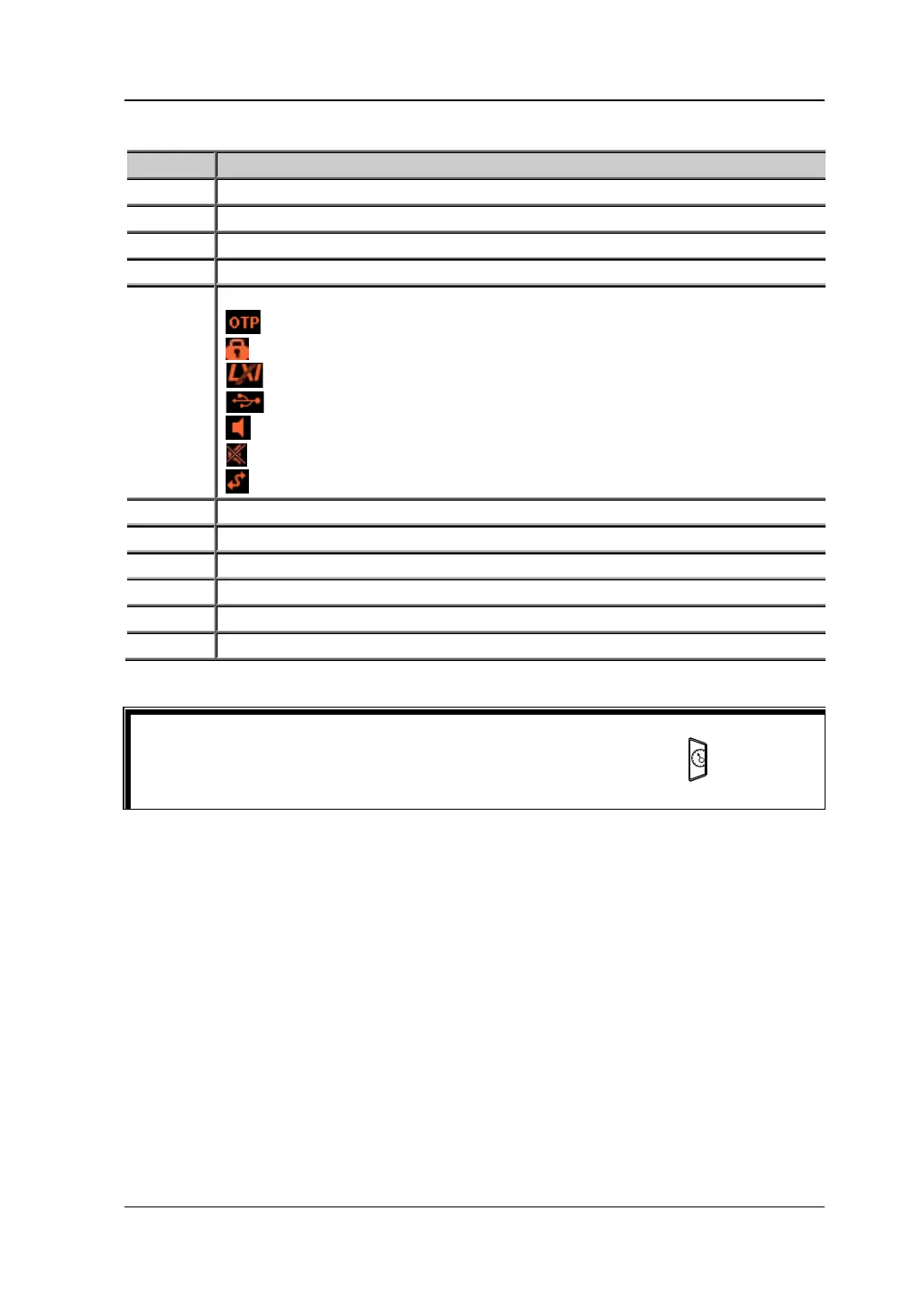

Table 1-4 User Interface Explanation
Channel output voltage/current
3 Channel output status
4 Channel output mode
5 Status bar. Display the system status labels.
: over-temperature protection is enabled
: the front panel is locked.
: the network is connected.
: USB device is recognized.
: the beeper is enabled.
: the beeper is disabled.
: the instrument is in remote mode.
6 Actual output voltage
7 Actual output current
8 Actual output power
9 Voltage and current setting values
10 Overvoltage and overcurrent protection setting values
11 Menu bar
When the current display mode is "Normal" or "Waveform", press at the front
panel to quickly switch between the current display mode and dial display mode.
