The instrument only supports the flash memory USB storage device of FAT32

format.

10. Power Switch Key

Press this key to power on or off the instrument.

4.4 Rear Panel

This section introduces the rear panel of DP900 series by taking DP932A (as shown in

the figure below) as an example.

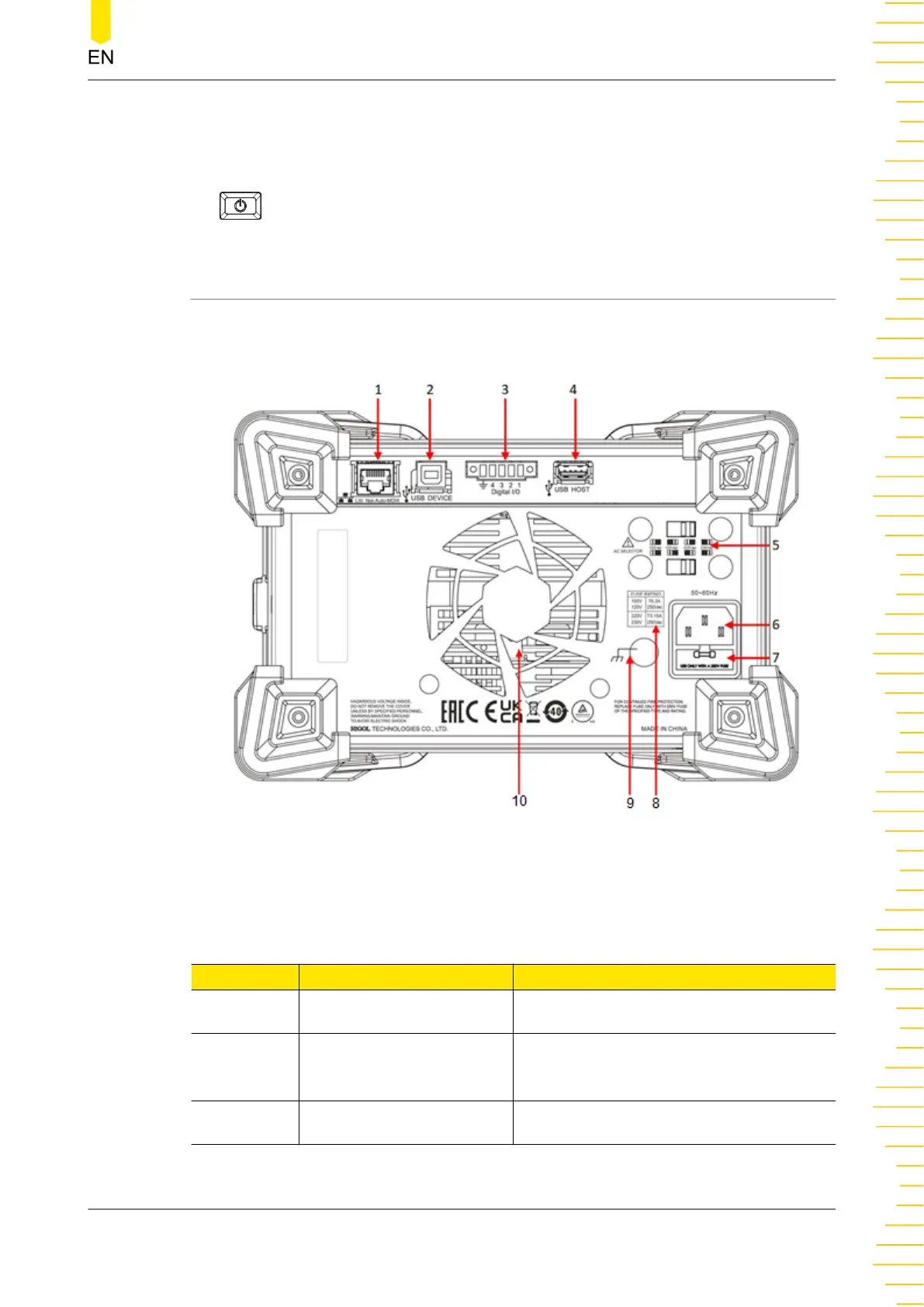

Figure 4.5 DP900 Rear Panel

Table 4.1 DP900 Rear Panel Description

No. Name Description

1 LAN port

The instrument is connected to the LAN

network via RJ45 interface.

2 USB DEVICE

Connect the instrument (as "slave" device)

to external USB device (such as PC).

Digital I/O

[1]

Digital I/O port

Quick Start

DP900 User Guide
