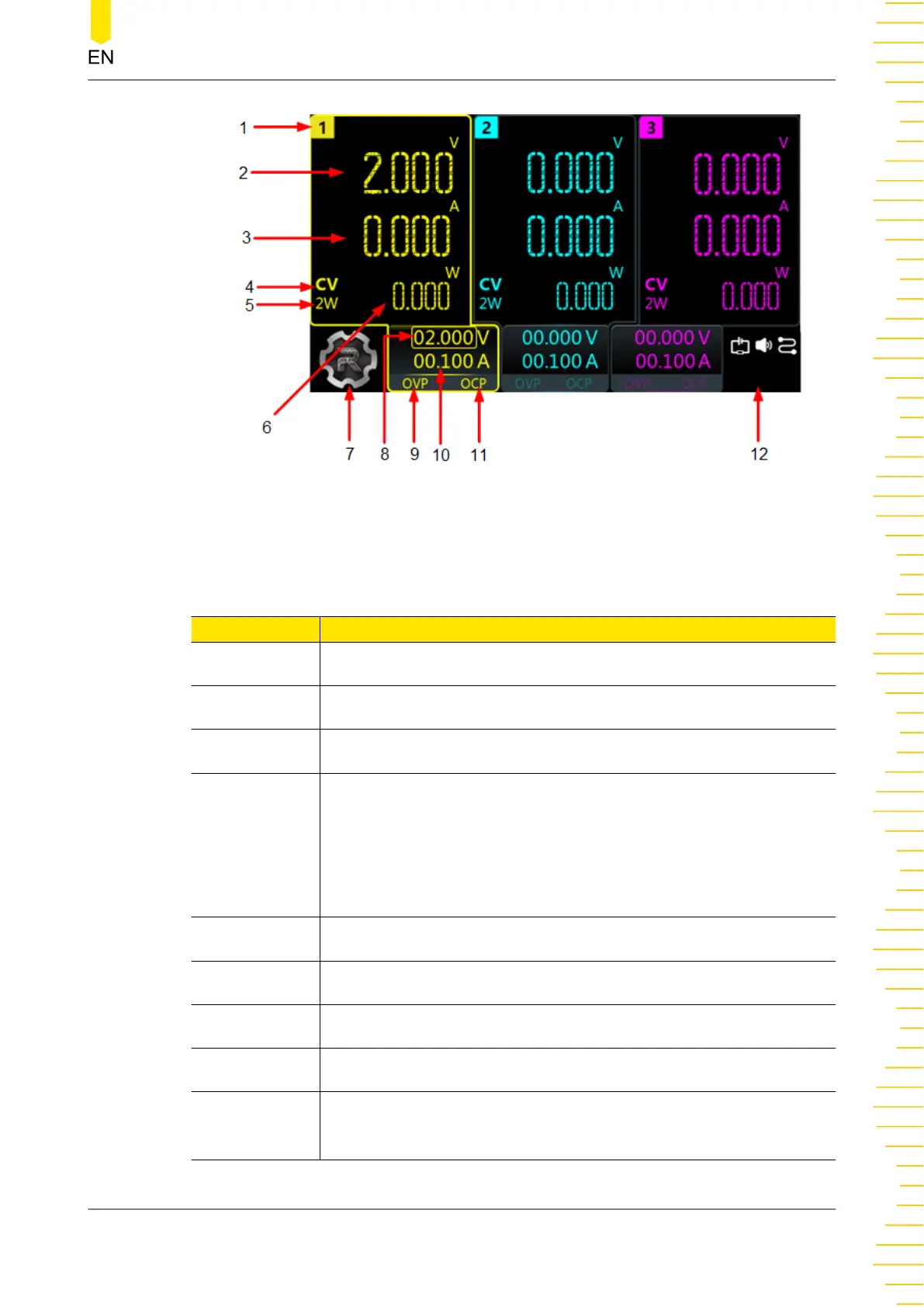

Figure 4.6 User Interface

Table 4.2 User Interface Description

No. Description

1 Channel identifier

2 Actual output voltage

3 Actual output current

Output mode

CV: The output is in constant voltage mode.

CC: The output is in constant current mode.

UR: The output is unregulated.

2-Wire sense connection

6 Actual output power

7 Navigation icon

8 Voltage setting value

9 Over-voltage protection (OVP) status indicator, indicating the

present OVP on/off state
