Figure 10.5 Pulse Current Analysis Interface

10.3 Data Logging

The data logging function allows you to record waveform data collected in real time.

The data is stored to a *.ROF file in the predefined target folder.

After entering the quick setup interface, you can tap Log to enter the interface as

shown in the figure below. You can enable/disable the data logging function and set

the target location to save the data.

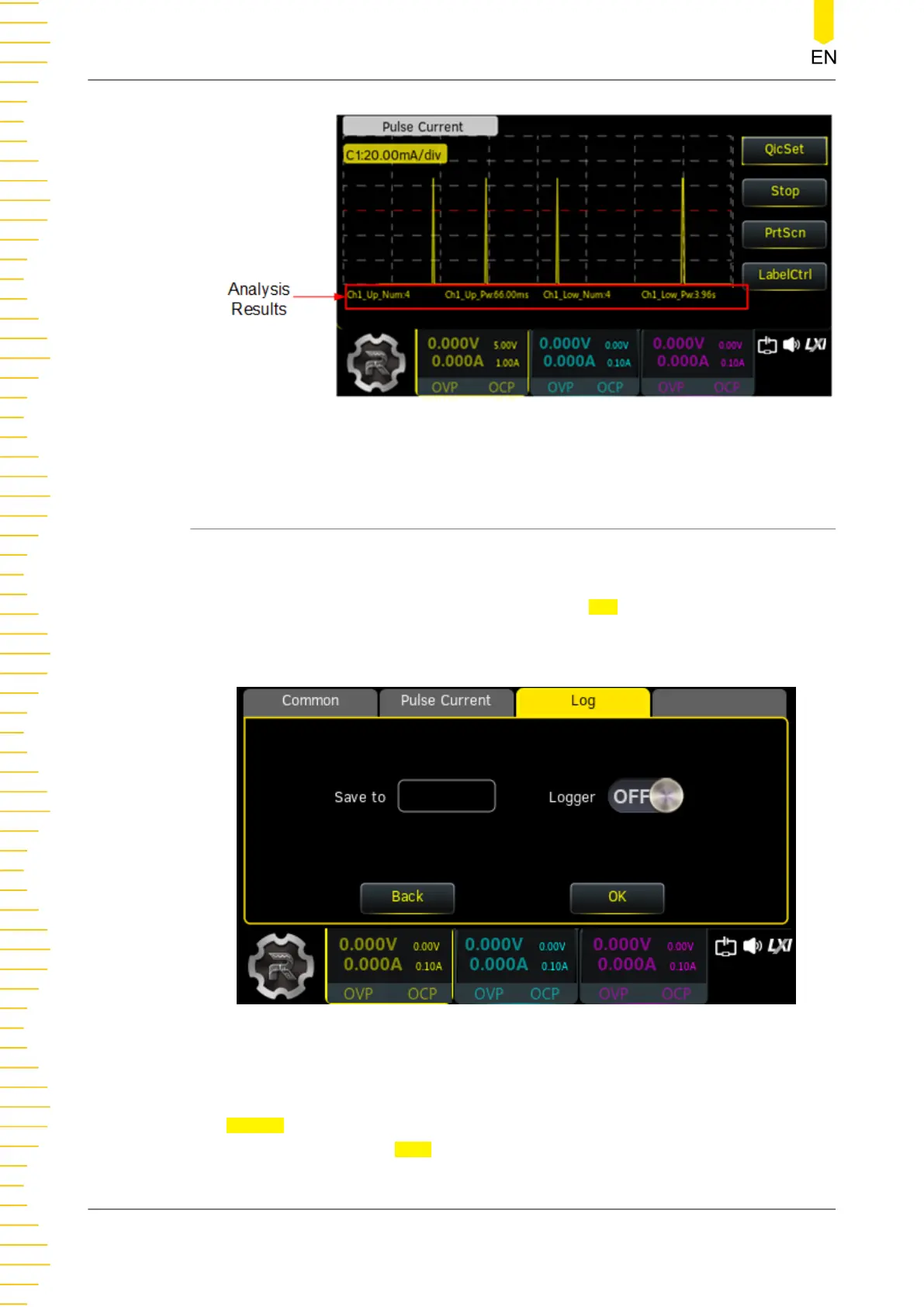

Figure 10.6 Log Setting Interface

Storage Path

Tap Save to input field to access the Store and Recall interface. Select the desired

storage path and then tap

Save. Set the filename in the pop-up filename input field.

The data is stored to a file with .ROF extension.
