13.3 Interface Settings

DP900 series supports remote interface communication over interfaces including USB

and LAN. You can control the instrument remotely via those interfaces.

Press > Interface or tap > Utility > Interface to enter the interface and

set the I/O parameters for remote operations.

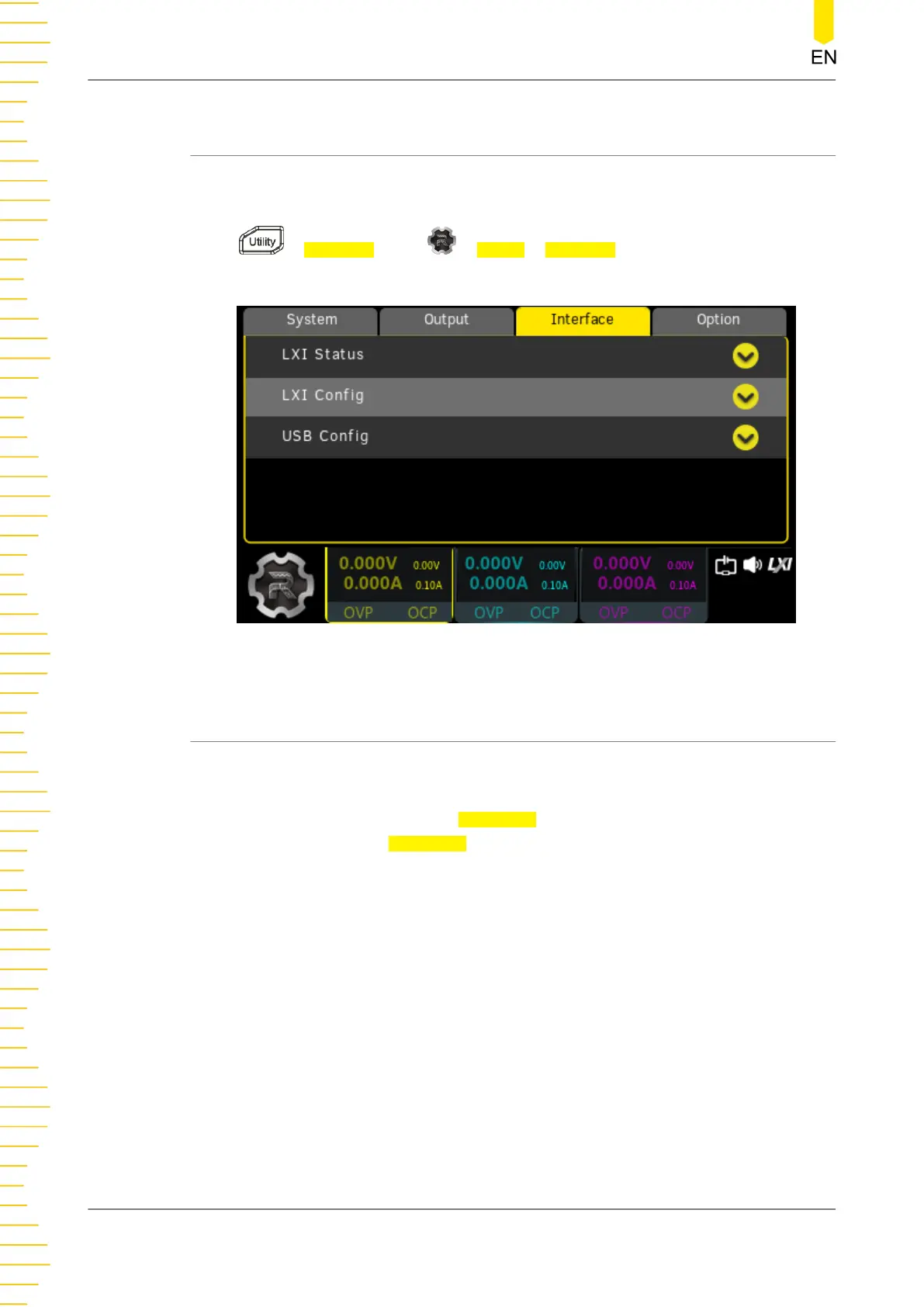

Figure 13.5 Interface Settings

13.3.1 LXI Status

Before using the LAN interface, please use the network cable to connect the

instrument to your PC or to the network of the PC.

In the Interface Settings menu, tap LXI Status to access the interface as shown in the

figure below. You can tap LXI Status again to collapse the current menu to revert to

the Interface Settings menu.
