TIP

If you want to power on the instrument again after powering it off, please make sure that the

time interval between the two power-on operations is greater than 5 s.

4.8 Connecting the Outputs

This series power supply provides three-channel outputs, which share the same

connection method. Please follow the instructions below to connect the outputs.

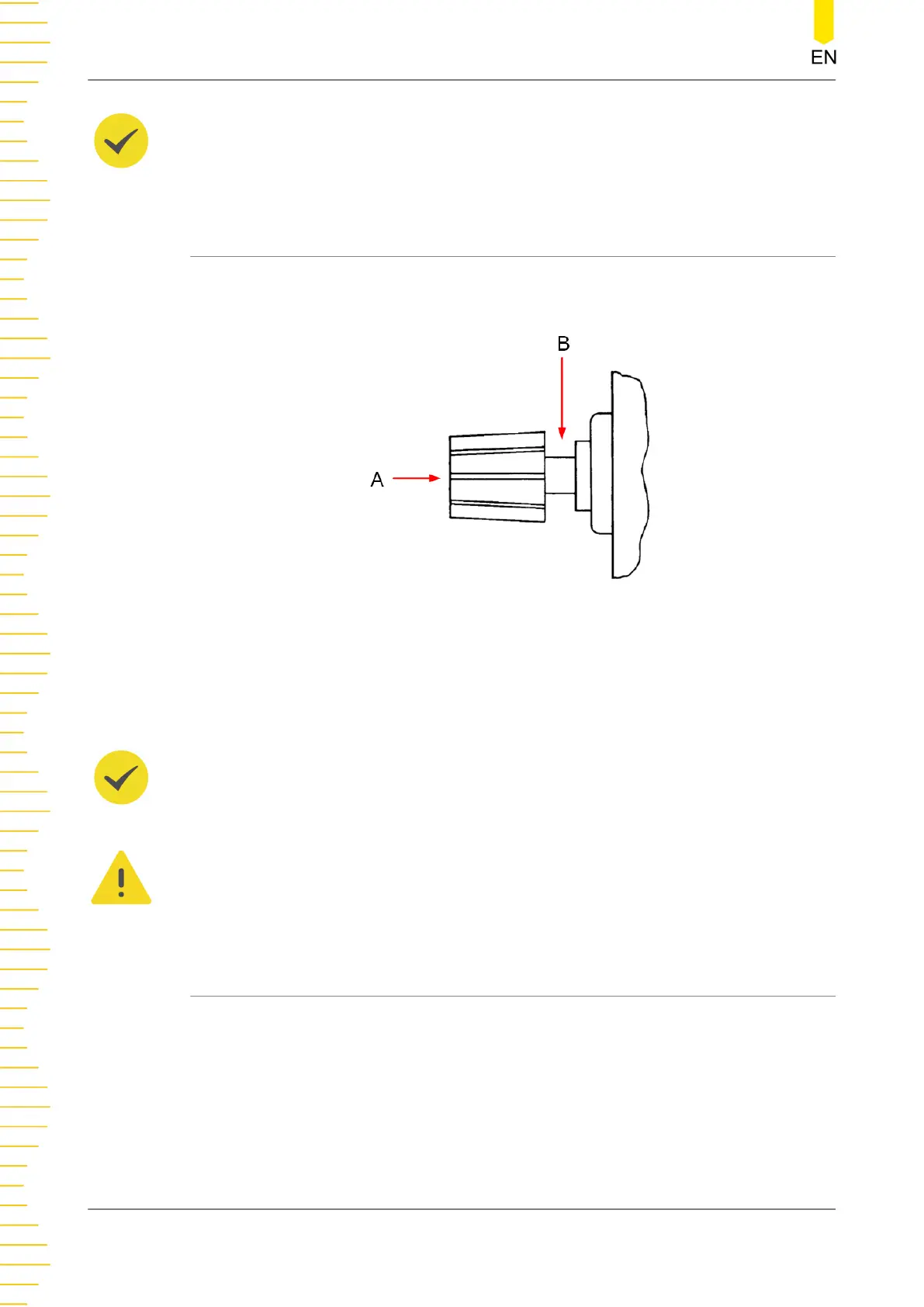

Method 1: Connect wires to the front of the terminals as shown in (A).

Method 2: Rotate the terminal block screws counter-clockwise and connect wires to

the terminals in location (B). Then rotate the screws clockwise to tighten the wires.

This method can help avoid errors caused by the terminal resistance.

TIP

As the output terminals of DP932U are safety sockets, “Method 2” is not supported.

CAUTION

Turn off AC power before making front panel connections. All wires and straps must be

properly connected to prevent currents from damaging the loads.

4.9 Replacing the Fuse

The fuse rating required depends on the instrument model and actual input voltage,

as shown in the table below. You can also refer to

Table 4.3 AC input power

specifications (including AC selector setting)
