Rigol DS1000B Series Programming Guide

Programming Examples RIGOL
Programming Guide for DS1000B Series
3-11

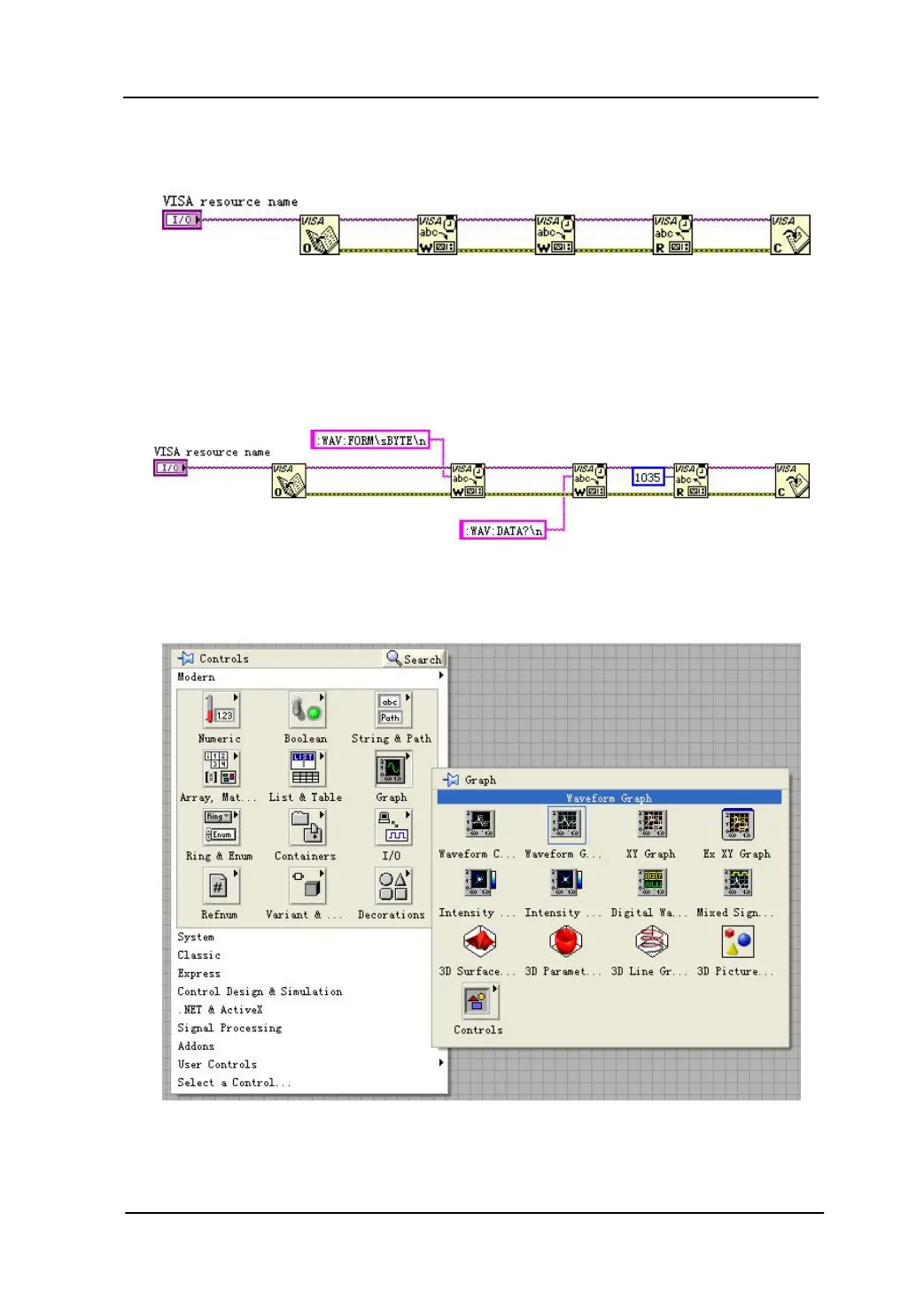

3. Separately connect “VISA resource name” with “VISA resource name
out” and “error out” with “error in” of all the functions. See the figure below.
4. Add a textbox written with “:WAV:FORM\sBYTE\n” to “write buffer” on
one of the “VISA Write” control, and “:WAV:DATA?\n” on the other one.
The former is to set the format of waveform reading to be “BYTE”, while the
latter reads the waveform data shown on the screen.
5. Open the Front Panel; choose Modern→Graph→Waveform Graph to add
a Waveform Graph control. See the figure below.
6. open Block Diagram; right-click and choose Programming → String →
