RIGOL Chapter 2 Prepare for Use
Service Guide for DS1000E, DS1000D Series
2-6

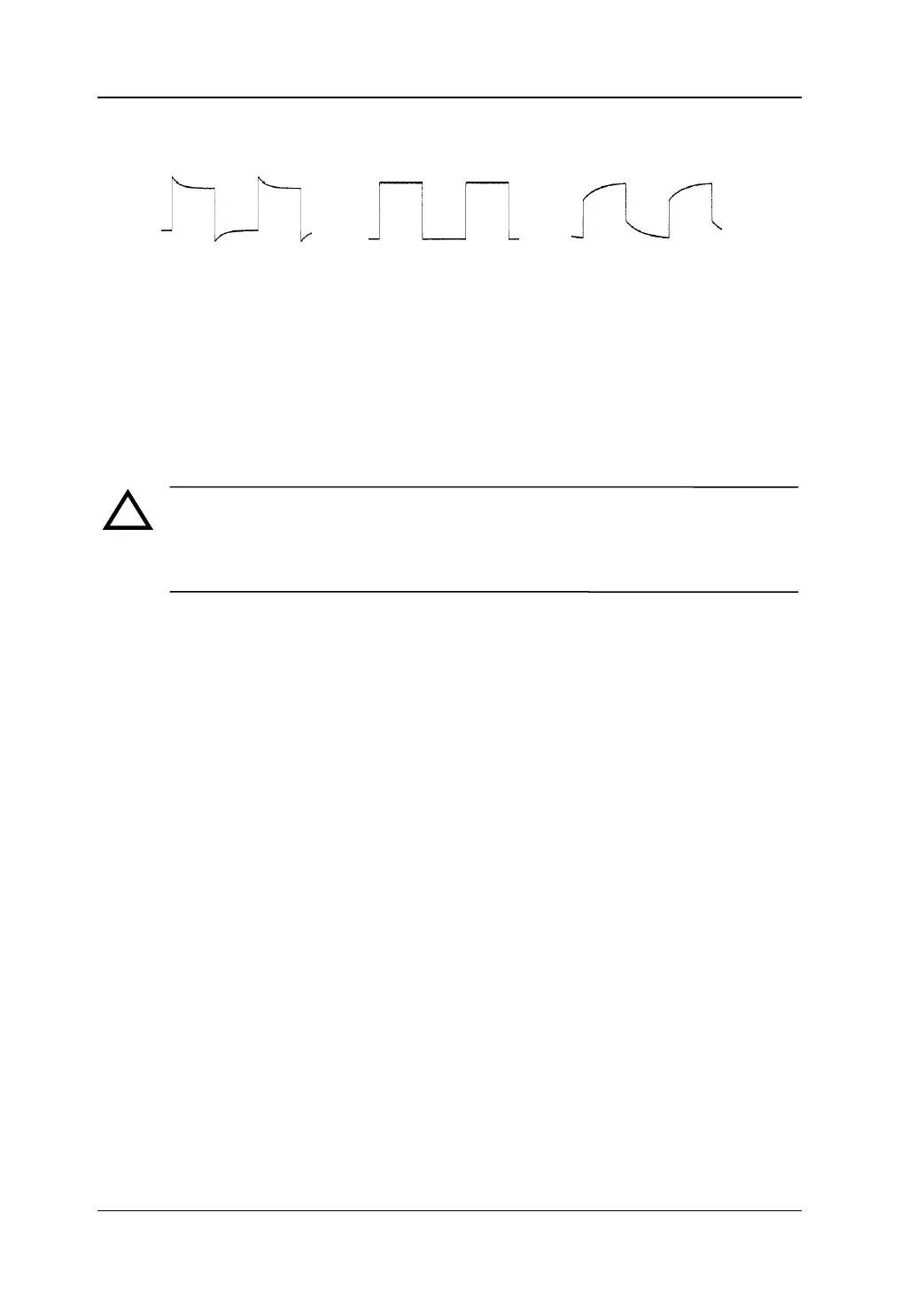

correct in accordance with the shape of waveform.
Over compensation Correct Compensation Under Compensation
Figure 2-7 Waveform compensation
4. If necessary, use a non-metallic screwdriver to adjust the variable capacitor of the
probe until a “Correct Compensation” wave displayed on the screen.
5. Continue in the same way to check CH2.
WARNING
To avoid electric shock while using the probe, be sure the perfection of the
insulated cable, and do not touch the metallic portions of the probe head
while it is connected with a high-voltage power supply.
!
