Chapter 3 Performance Test RIGOL
Service Guide for DS1000E, DS1000D Series
3-7

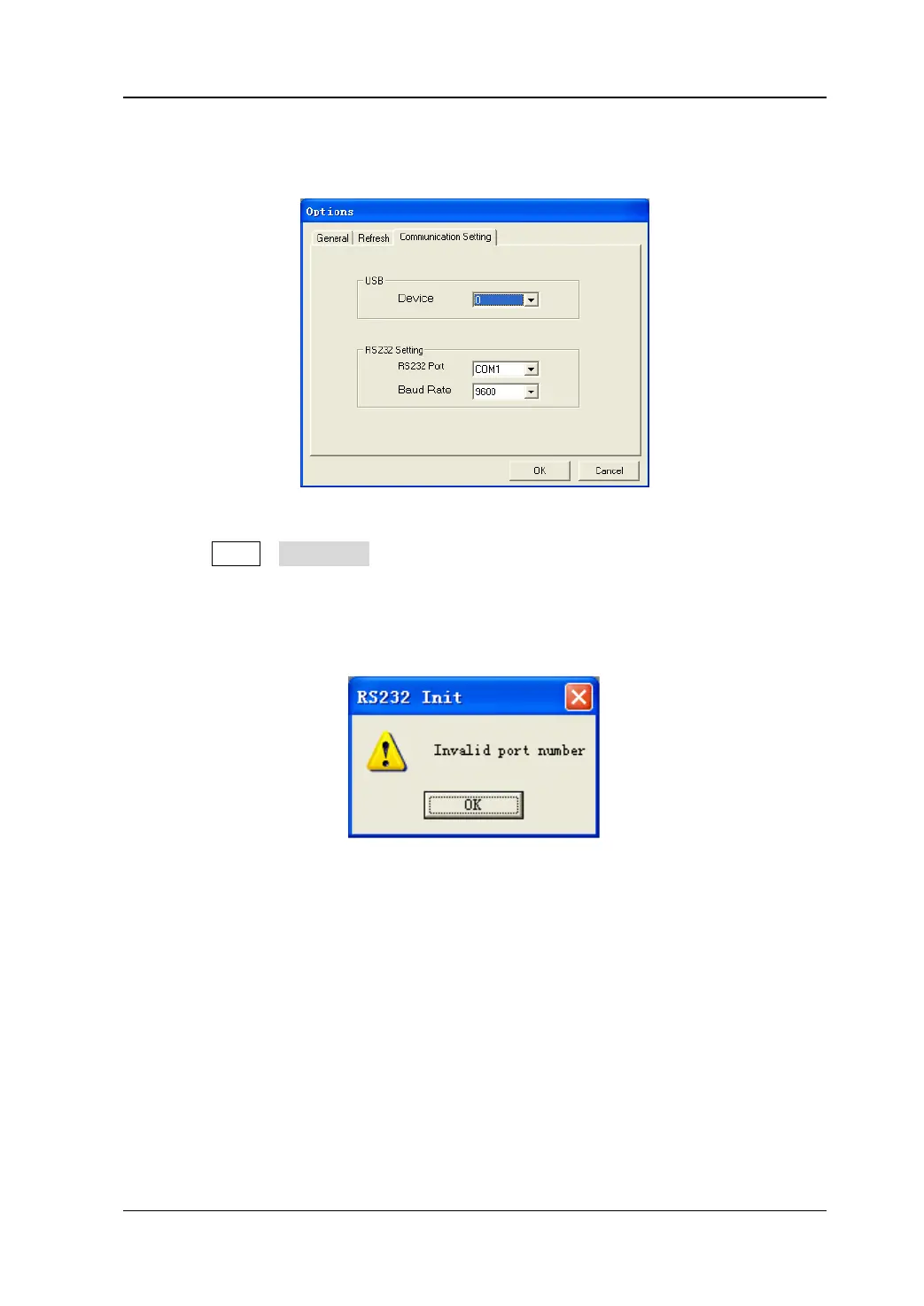

4. Click Communication Setting and setup the communication interface under
using and the baud rate.
Figure 3-8 RS-232 interface setting
5. Press Utility→I/O Setting and set the baud rate as the same value in Ultrascope.
6. Click Tools→Connect to Oscilloscope; If successful, the corresponding
reminder light at the upper right corner of the software will be changed from red
to blue; otherwise, a prompting message will be appeared as below.
Figure 3-9 Fail prompt of RS-232 interface connection
