Rigol DS1074Z Plus User Manual

Chapter 6 MATH and Measurement RIGOL
MSO1000Z/DS1000Z User’s Guide 6-29
Voltage Parameters

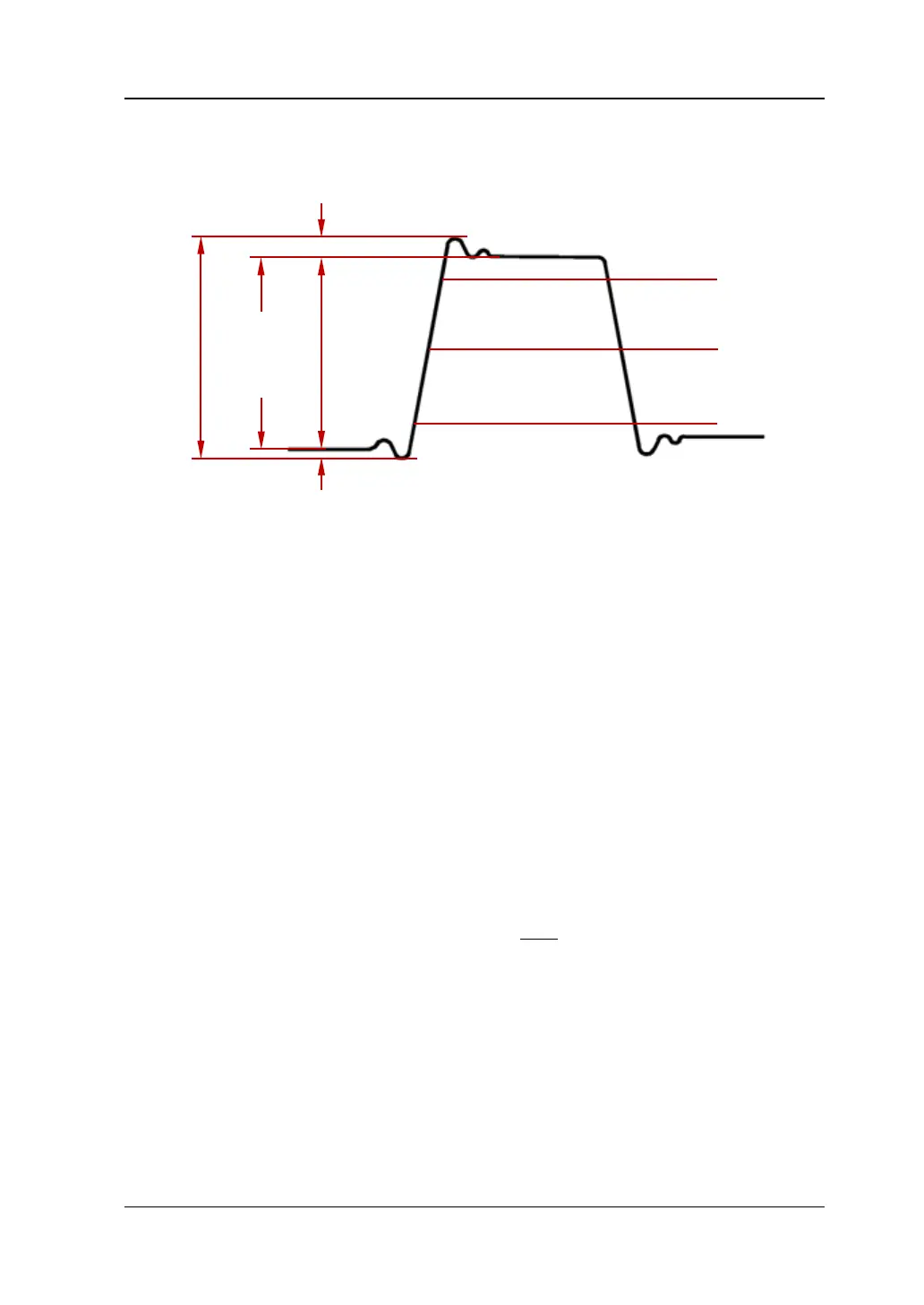

Figure 6-5 Voltage Parameters
1. Vmax: the voltage value from the highest point of the waveform to the GND.
2. Vmin: the voltage value from the lowest point of the waveform to the GND.
3. Vpp: the voltage value from the highest point to the lowest point of the
waveform.
4. Vtop: the voltage value from the flat top of the waveform to the GND.
5. Vbase: the voltage value from the flat base of the waveform to the GND.
6. Vamp: the voltage value from the top of the waveform to the base of the
waveform.
7. Vupper: the actual voltage value corresponding to the threshold maximum
value.
8. Vmid: the actual voltage value corresponding to the threshold middle value.
9. Vlower: the actual voltage value corresponding to the threshold minimum
value.
10. Vavg: the arithmetic average value on the whole waveform or on the gating
area. The calculation formula is as follows:
i
x
Average =
n
∑
(6-2)
Wherein,
i
x
is the measurement result of the
i
th point,
n
is the number of
points being measured.
11. Vrms: the root mean square value on the whole waveform or the gating area.
The calculation formula is as follows.
Preshoot
Overshoot
Vamp
Vbase
Vmax
Vmin
Vpp
Vtop
Vupper
Vmid
Vlower
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com

Rigol DS1074Z Plus Specifications

General

Type	Tabletop
Product type	-
Certification	UL 61010-1:2004; CAN/CSA-C22.2 NO. 61010-1-2004; EN 61010-1:2001; IEC 61010-1:2001
Bandwidth	70 MHz
Sampling rate	- MS/s
Channels quantity	4 channels
Minimum time base setting (per division)	5 ns
Power consumption (max)	50 W
Display diagonal	7 \
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	122.4 mm
Width	313.1 mm
Height	160.8 mm
