RIGOL Chapter 13 Signal Source
13-4 MSO1000Z/DS1000Z User’s Guide
To Output Ramp
Press Src1Conf to open the waveform setting menu. Press Wave and select
"Ramp". At this point, you can set the ramp parameters. For the detailed setting
method, refer to the introduction in "
To Output Sine". This section only introduces
"Symmetry".

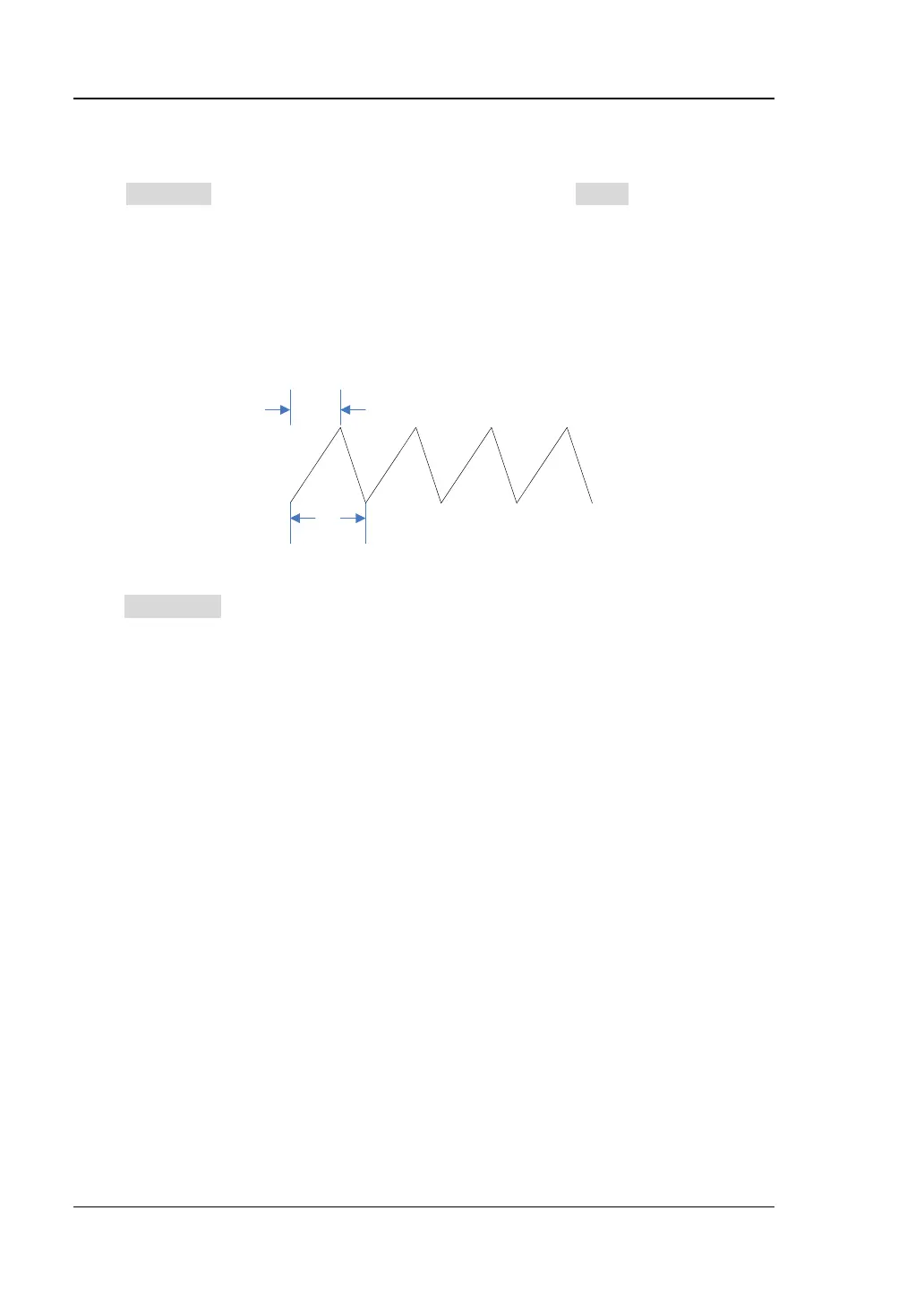

Symmetry is defined as the percentage that the rising period of the ramp takes up in
the whole period.
T
t
Symmetry=t/T*100%
Figure 13-1 Symmetry Definition
Press Symmetry to set the symmetry of the ramp waveform. For the setting method,
please refer to the introduction in "
Parameter Setting Method". The range is from
0% to 100%.
