Rigol DS1202Z-E Quick Guide

RIGOL
4 DS1000Z-E Quick Guide
Turn-on Checkout
When the oscilloscope is connected to power, press the Power key at the
lower-left corner of the front panel to start the oscilloscope. During the start-up
process, the oscilloscope performs a series of self-test items. After the self-test, the
welcome screen is displayed. The instrument is installed with the trial versions of the
options before leaving factory and the remaining time is about 2,000 minutes. The
"Installed Options" dialog box will be displayed if your instrument has currently
installed the trial versions of options. From this dialog box you can view the name,
detail, version and remaining trial time of the option currently installed.
To Connect the Probe
RIGOL provides passive probe for DS1000Z-E series. For the model of the probes,
please refer to DS1000Z-E Series Datasheet . For detailed technical information of the
probes, please refer to corresponding Probe User’s Guide.
Connect the Probe:
1. Connect the BNC terminal of the probe to an analog channel input of the
oscilloscope on the front panel.
2. Connect the ground alligator clip of the probe to the circuit ground terminal and
then connect the probe tip to the circuit point under test.

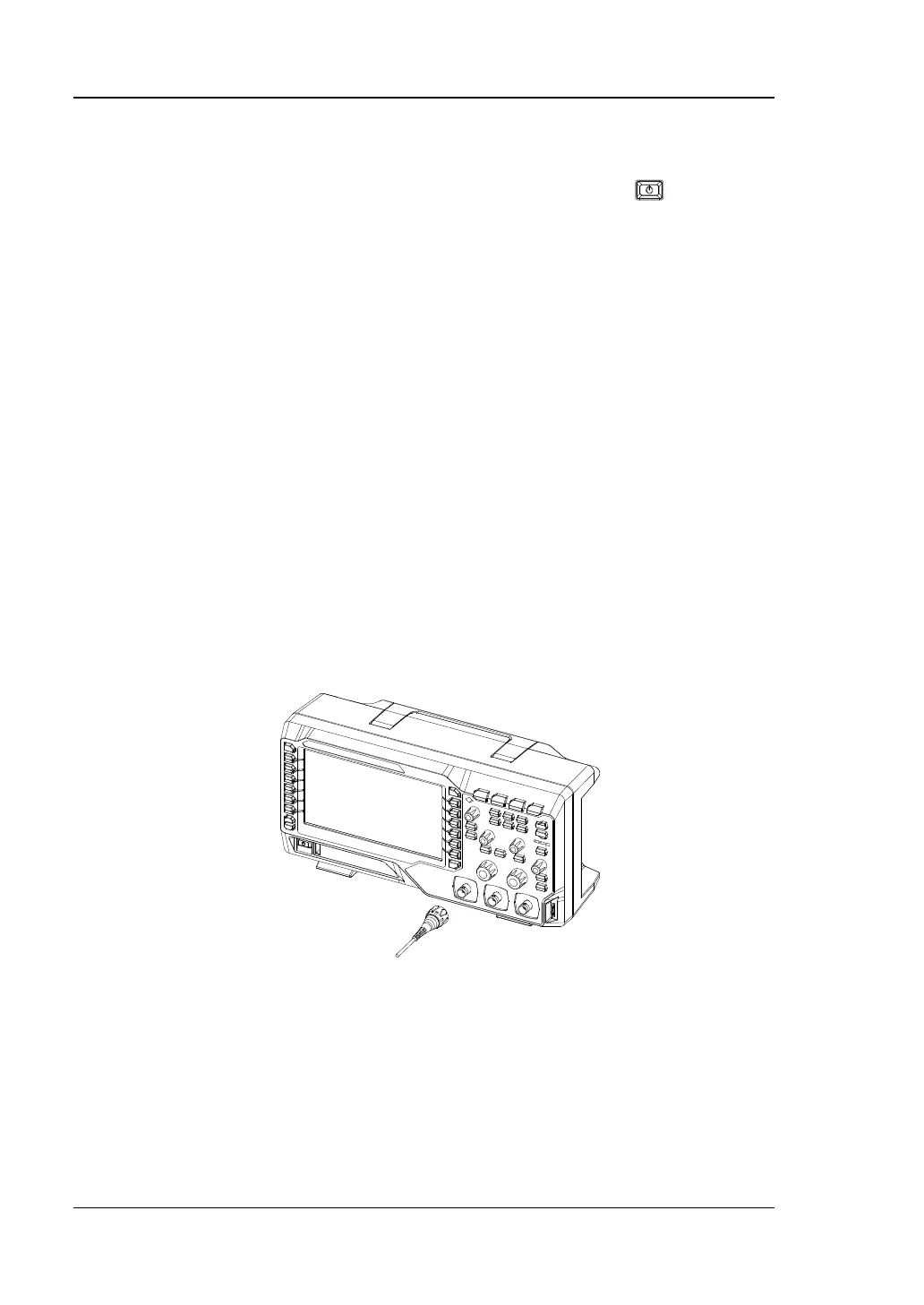

Figure 5 To Connect the Passive Probe
After you connect the passive probe, check the probe function and probe
compensation adjustment before making measurements. For detailed procedures,
refer to "Function Inspection" and "Probe Compensation" sections in this
manual.

Rigol DS1202Z-E Specifications

General

Type	Tabletop
Product type	Digital sampling oscilloscope
Bandwidth	200 MHz
Sampling rate	500 MS/s
Frequency range	0 - 0.001 MHz
Channels quantity	2 channels
Vertical resolution	8 bit
Minimum time base setting (per division)	4 ns
Minimum vertical sensitivity (per division)	1 mV
Display type	LCD
Display diagonal	7 \
Display resolution	800 x 480 pixels
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	50 W
Operating temperature (T-T)	0 - 50 °C
Package weight	3500 g

Weight and Dimensions

Depth	122.4 mm
Width	313.1 mm
Height	160.8 mm
Weight	2900 g
