Rigol DS1202Z-E Quick Guide

RIGOL
DS1000Z-E Quick Guide
5

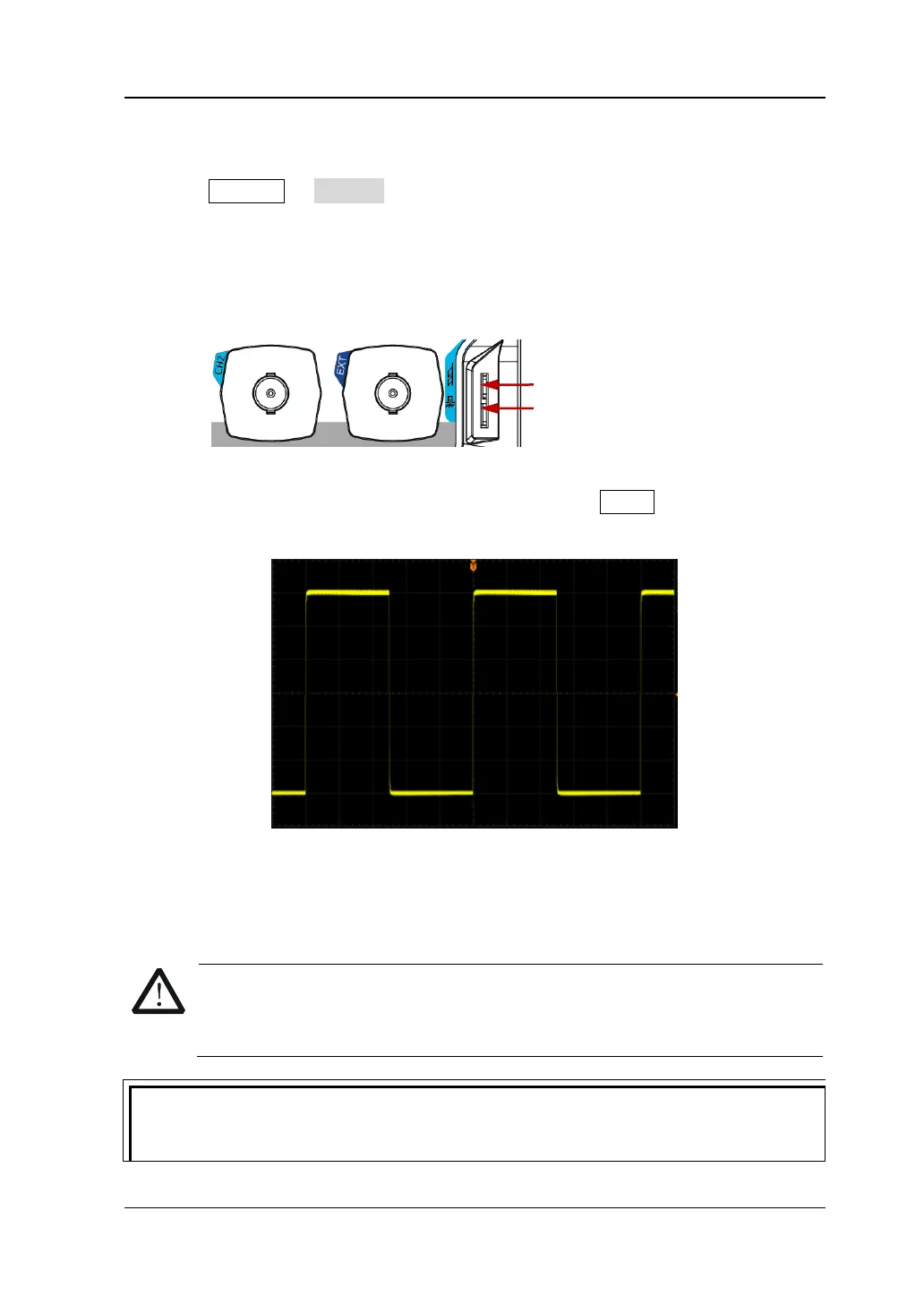

Function Inspection
1. Press Storage  Default to restore the oscilloscope to its default
configuration.
2. Connect the ground alligator clip of the probe to the "Ground Terminal" as shown
in the figure below.
3. Use the probe to connect the input terminal of CH1 and the "Compensation
Signal Output Terminal" of the oscilloscope.
Figure 6 To Use the Compensation Signal
4. Set the attenuation on the probe to 10X. Then press AUTO.
5. Observe the waveform on the display. In normal condition, the display should be
a square waveform as shown in the figure below:
Figure 7 Square Waveform
6. Use the same method to test the other channels. If the square waveforms
actually shown do not match that in the figure above, please perform "Probe
Compensation".
WARNING
To avoid electric shock during the use of probe, please make sure that the
insulated wire of the probe is in good condition. Do not touch the metallic
part of the probe when the probe is connected to high voltage source.
Tip
The signal output from the probe compensation connector can only be used for
probe compensation adjustment and cannot be used for calibration.
Compensation Signal Output Terminal
Ground Terminal

Rigol DS1202Z-E Specifications

General

Type	Tabletop
Product type	Digital sampling oscilloscope
Bandwidth	200 MHz
Sampling rate	500 MS/s
Frequency range	0 - 0.001 MHz
Channels quantity	2 channels
Vertical resolution	8 bit
Minimum time base setting (per division)	4 ns
Minimum vertical sensitivity (per division)	1 mV
Display type	LCD
Display diagonal	7 \
Display resolution	800 x 480 pixels
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	50 W
Operating temperature (T-T)	0 - 50 °C
Package weight	3500 g

Weight and Dimensions

Depth	122.4 mm
Width	313.1 mm
Height	160.8 mm
Weight	2900 g
