6 DS1000Z-E Quick Guide
Probe Compensation
When the probes are used for the first time, you should compensate the probes to
match the input channels of the oscilloscope. Non-compensated or poorly
compensated probes may cause measurement inaccuracy or errors. The probe
compensation procedures are as follows:
1. Perform Step 1, 2, 3 and 4 specified in "Function Inspection".
2. Check the displayed waveforms and compare them with the waveforms in the
following figure.

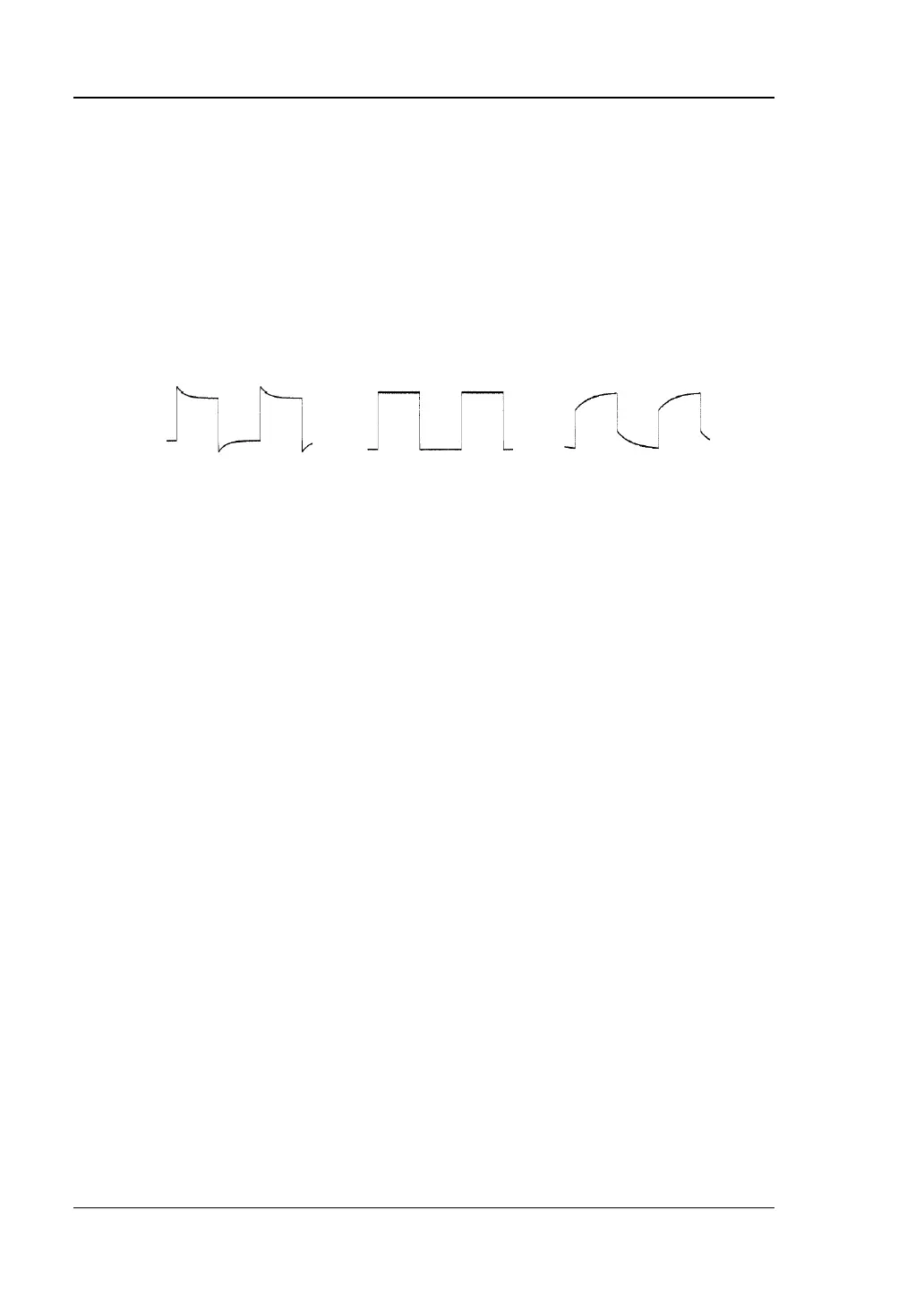

Figure 8 Probe Compensation
3. Use a nonmetallic driver to adjust the low-frequency compensation adjustment
hole on the probe until the displayed waveform is displayed as "Perfectly
compensated" in the figure above.
Over compensated Perfectly compensated Under compensated

Rigol DS1202Z-E Specifications

General

Type	Tabletop
Product type	Digital sampling oscilloscope
Bandwidth	200 MHz
Sampling rate	500 MS/s
Frequency range	0 - 0.001 MHz
Channels quantity	2 channels
Vertical resolution	8 bit
Minimum time base setting (per division)	4 ns
Minimum vertical sensitivity (per division)	1 mV
Display type	LCD
Display diagonal	7 \
Display resolution	800 x 480 pixels
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	50 W
Operating temperature (T-T)	0 - 50 °C
Package weight	3500 g

Weight and Dimensions

Depth	122.4 mm
Width	313.1 mm
Height	160.8 mm
Weight	2900 g
