Rigol DS1202Z-E Quick Guide

RIGOL
DS1000Z-E Quick Guide
11

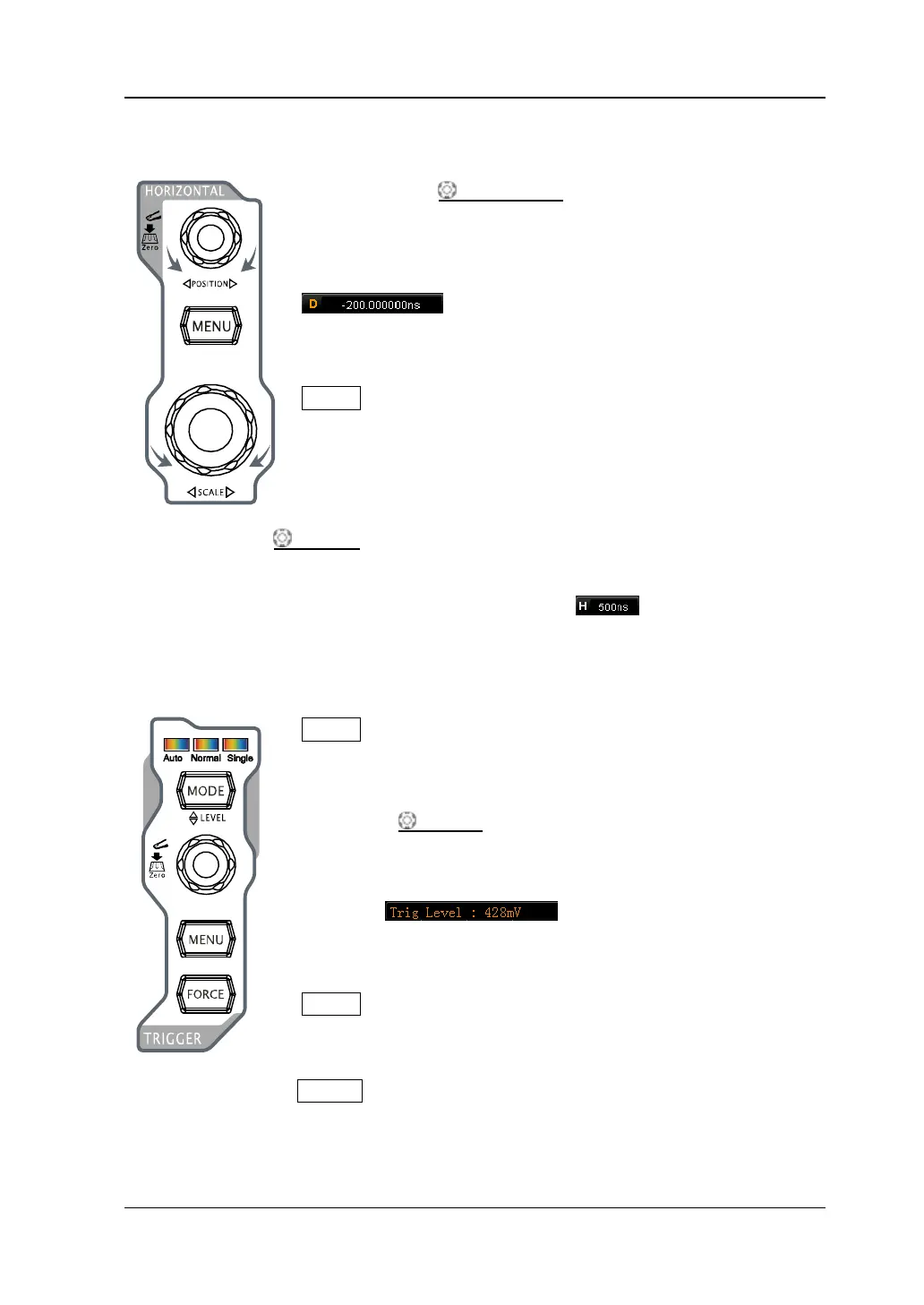

HORIZONTAL
HORIZONTAL POSITION: modify the horizontal
position. The trigger point would move left or right relative to
the center of the screen when you rotate the knob. During the
modification, waveforms of all the channels would move left or
right and the horizontal position message (e.g.
) at the upper-right corner of the screen
would change accordingly. Press down this knob to quickly
reset the horizontal position (or the delayed sweep position).
MENU: press this key to open the horizontal control menu
where you can turn on or off the delayed sweep function and
switch between different time base modes.
HORIZONTAL SCALE: modify the horizontal time base. Turn clockwise to
reduce the time base and turn counterclockwise to increase the time base. During
the modification, waveforms of all the channels will be displayed in expanded or
compressed mode and the time base message (e.g. ) at the upper side of
the screen would change accordingly. Press down this knob to quickly switch to
delayed sweep state.
TRIGGER
MODE: press this key to switch the trigger mode to Auto,
Normal or Single and the corresponding state backlight of
the current trigger mode would be illuminated.
TRIGGER LEVEL: modify the trigger level. Turn clockwise
to increase the level and turn counterclockwise to reduce the
level. During the modification, the trigger level line would
move up and down and the value in the trigger level message
box (e.g. ) at the lower-left corner of the
screen would change accordingly. Press down the knob to
quickly reset the trigger level to zero point.
MENU: press this key to open the trigger operation menu.
This oscilloscope provides various trigger types; for the details,
please refer to the introduction in DS1000Z-E User Guide.
FORCE: press this key to generate a trigger signal forcibly.

Rigol DS1202Z-E Specifications

General

Type	Tabletop
Product type	Digital sampling oscilloscope
Bandwidth	200 MHz
Sampling rate	500 MS/s
Frequency range	0 - 0.001 MHz
Channels quantity	2 channels
Vertical resolution	8 bit
Minimum time base setting (per division)	4 ns
Minimum vertical sensitivity (per division)	1 mV
Display type	LCD
Display diagonal	7 \
Display resolution	800 x 480 pixels
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	50 W
Operating temperature (T-T)	0 - 50 °C
Package weight	3500 g

Weight and Dimensions

Depth	122.4 mm
Width	313.1 mm
Height	160.8 mm
Weight	2900 g
