DS1000Z-E Quick Guide
19
To Use the Built-in Help System
The help system of this oscilloscope provides instructions for all the function keys
(including menu keys) on the front panel. Press Help to open the help interface and
press again to close the interface. The help interface mainly consists of two parts.
The left is "Help Options" and the right is "Help Display Area".

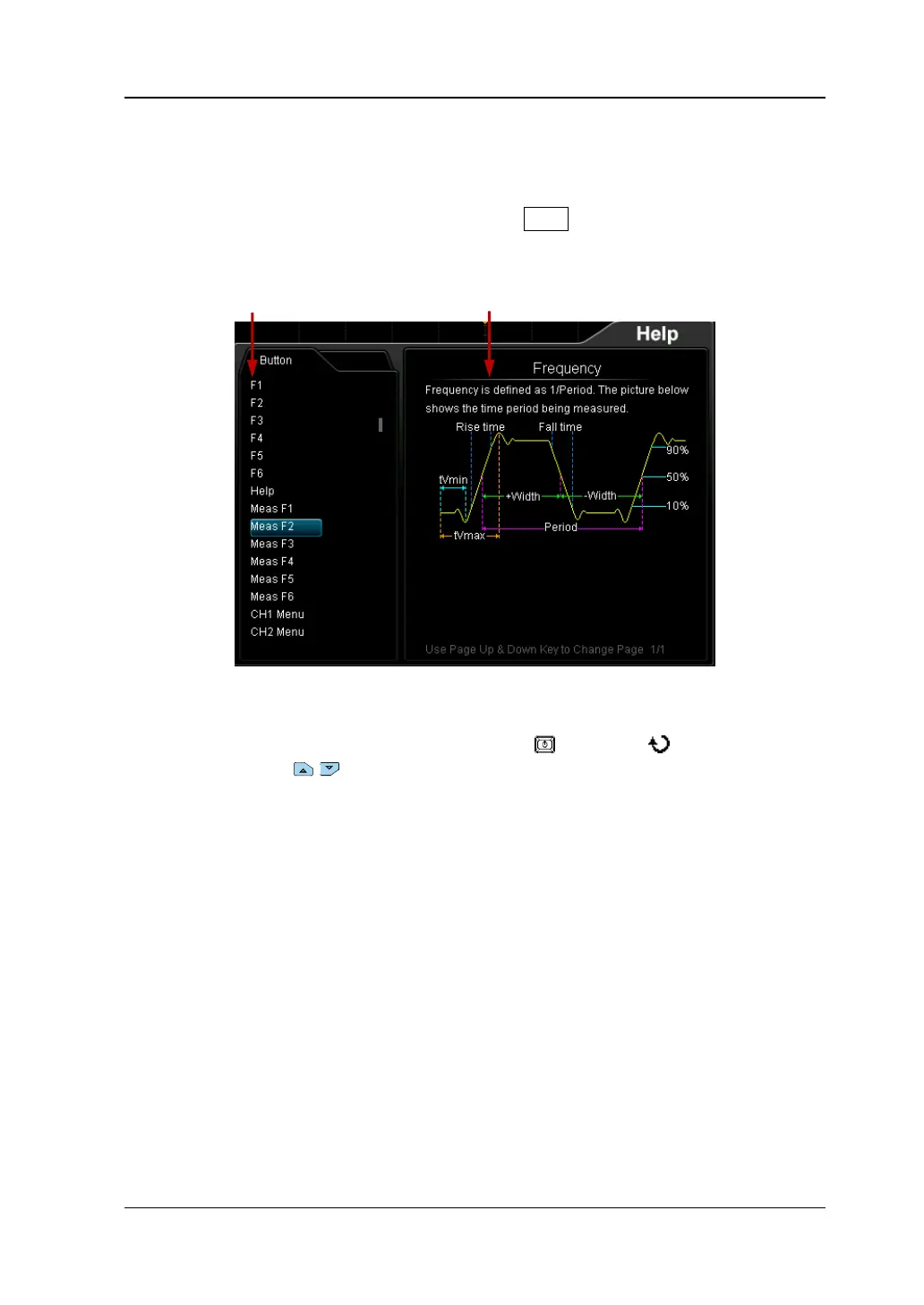

Figure 14 Help Information
You can press the button (except the Power key , the knob and the menu
Page Up/Down key / ) on the front panel directly to get the corresponding help
information in the "Help Display Area".
Help Options Help Display Area

Rigol DS1202Z-E Specifications

General

Type	Tabletop
Product type	Digital sampling oscilloscope
Bandwidth	200 MHz
Sampling rate	500 MS/s
Frequency range	0 - 0.001 MHz
Channels quantity	2 channels
Vertical resolution	8 bit
Minimum time base setting (per division)	4 ns
Minimum vertical sensitivity (per division)	1 mV
Display type	LCD
Display diagonal	7 \
Display resolution	800 x 480 pixels
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	50 W
Operating temperature (T-T)	0 - 50 °C
Package weight	3500 g

Weight and Dimensions

Depth	122.4 mm
Width	313.1 mm
Height	160.8 mm
Weight	2900 g
