Rigol DS1202Z-E Quick Guide

RIGOL
DS1000Z-E Quick Guide
15
User Interface
DS1000Z-E provides 7.0 inch WVGA (800*480) TFT LCD.

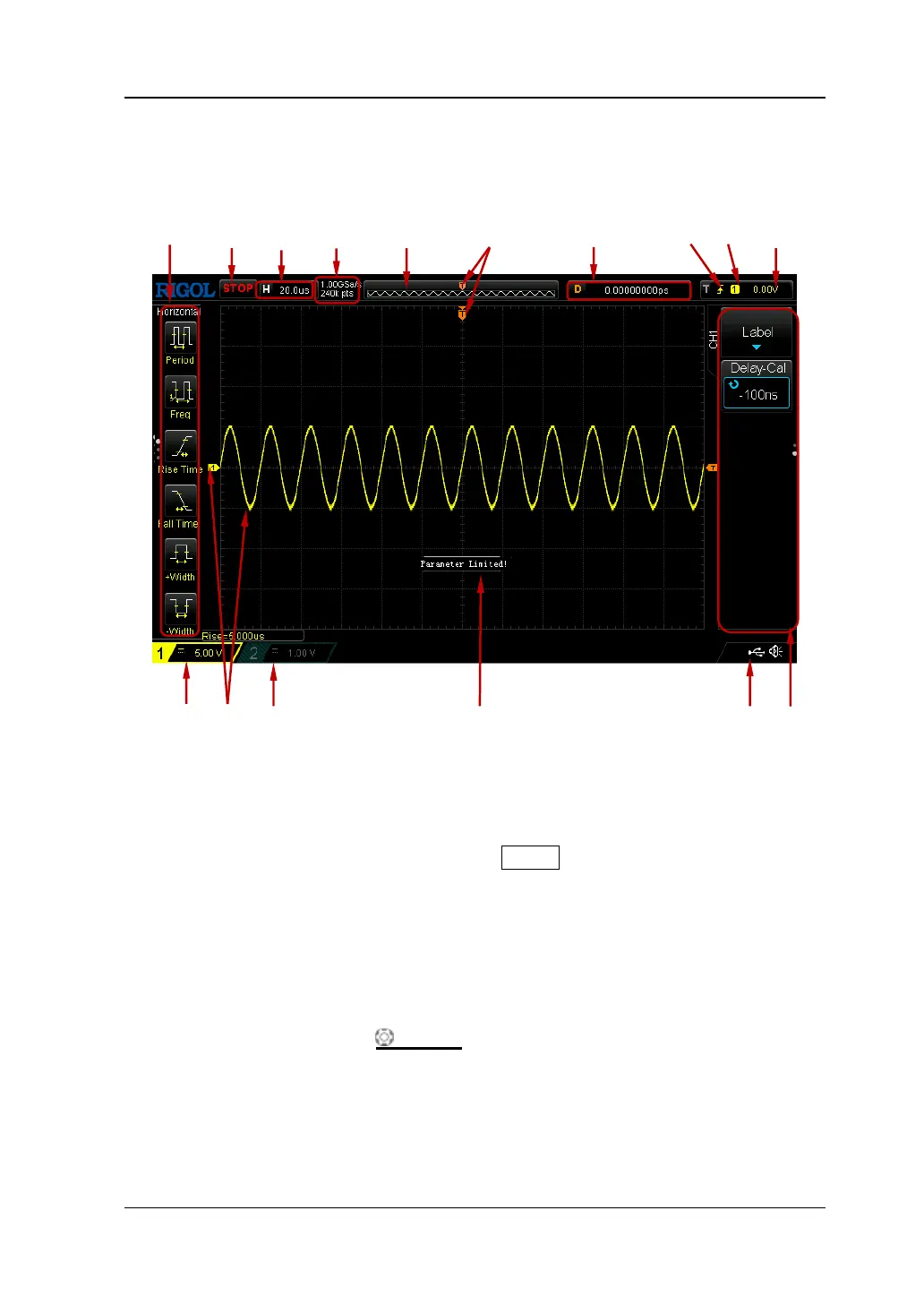

Figure 11 User Interface
1. Auto Measurement Items
Provide 20 horizontal (HORIZONTAL) and 17 vertical (VERTICAL) measurement
parameters. Press the softkey at the left of the screen to activate the
corresponding measurement item. Press MENU continuously to switch between
the horizontal and vertical parameters.
2. Status
Available states include RUN, STOP, T’D (triggered), WAIT and AUTO.
3. Horizontal Time Base
 Represent the time per grid on the horizontal axis on the screen.
 Use HORIZONTAL SCALE to modify this parameter. The range
available is from 5 ns to 50 s.
4. Sample Rate/Memory Depth
 Display the current sample rate and memory depth of the oscilloscope.
 The sample rate and memory depth will change in accordance with the
11 12 13 14 15 16
1 2 3 4 5 6 7 8 9 10

Rigol DS1202Z-E Specifications

General

Type	Tabletop
Product type	Digital sampling oscilloscope
Bandwidth	200 MHz
Sampling rate	500 MS/s
Frequency range	0 - 0.001 MHz
Channels quantity	2 channels
Vertical resolution	8 bit
Minimum time base setting (per division)	4 ns
Minimum vertical sensitivity (per division)	1 mV
Display type	LCD
Display diagonal	7 \
Display resolution	800 x 480 pixels
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	50 W
Operating temperature (T-T)	0 - 50 °C
Package weight	3500 g

Weight and Dimensions

Depth	122.4 mm
Width	313.1 mm
Height	160.8 mm
Weight	2900 g
