To Use Run Control Buttons
The RUN control buttons include AUTO (auto setting) and RUN/STOP.
Auto:
The AUTO features automatic adjustments to produce a stable display of the input
signal. Press AUTO button, the following menu appears.

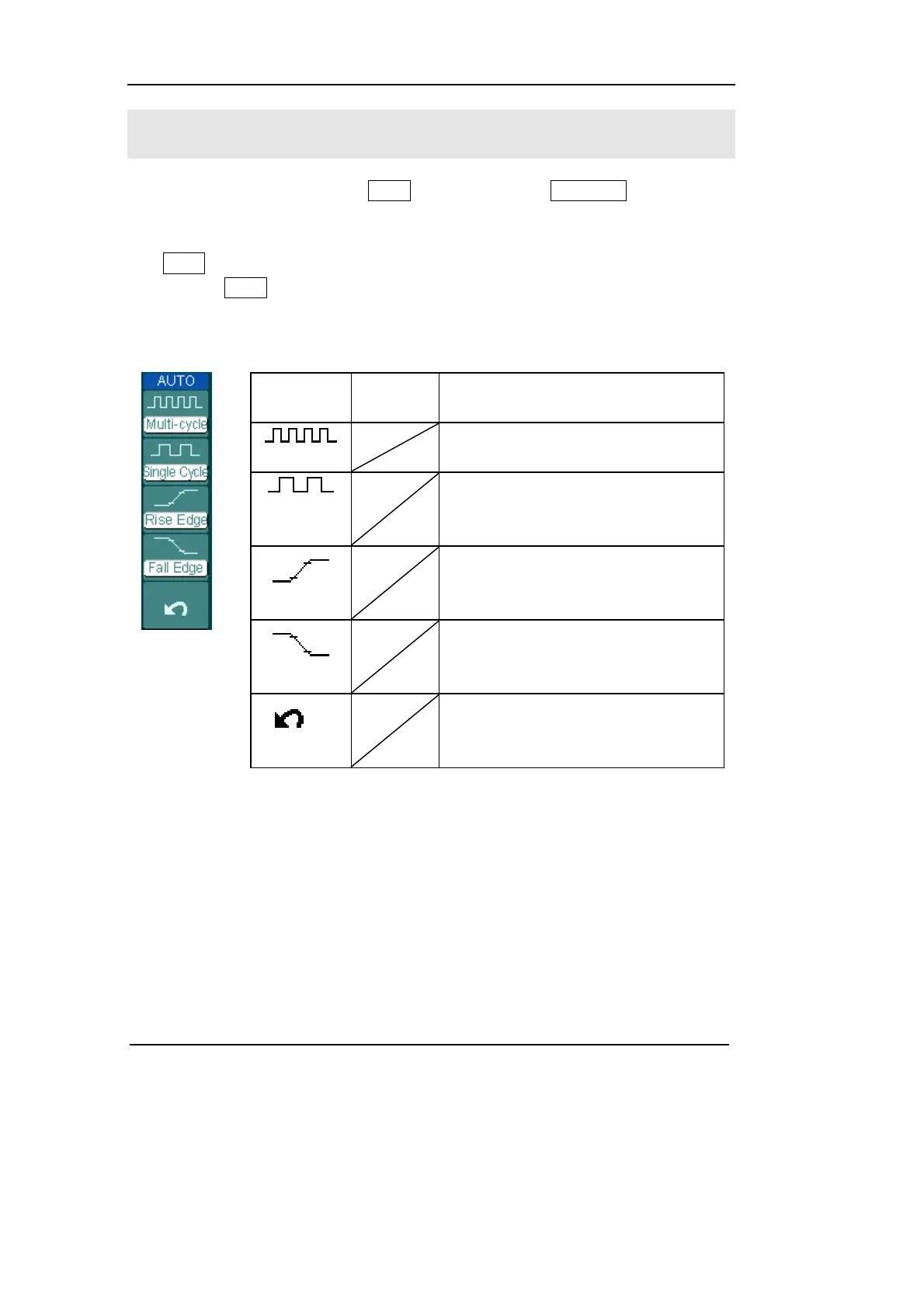

Figure 2-117
Table 2-80 The Auto menu
Menu Settings Comments
Multi-Cycle
Press to display multi-cycle waveform
on the screen.
Single
Cycle
Press to display single cycle
waveform on the screen.
Rise Edge
Press to display the waveform’s rising
edge and measure its rise time
automatically.
Fall Edge
Press to display falling edge of the
waveform and measure fall time
automatically of it.
(Cancel)
Press to cancel all the Auto Set
actions, the oscilloscope will recover
to its previous status.
To Next Page
