RIGOL Chapter 1 Quick Start
1-6 MSO2000A/DS2000A User Guide

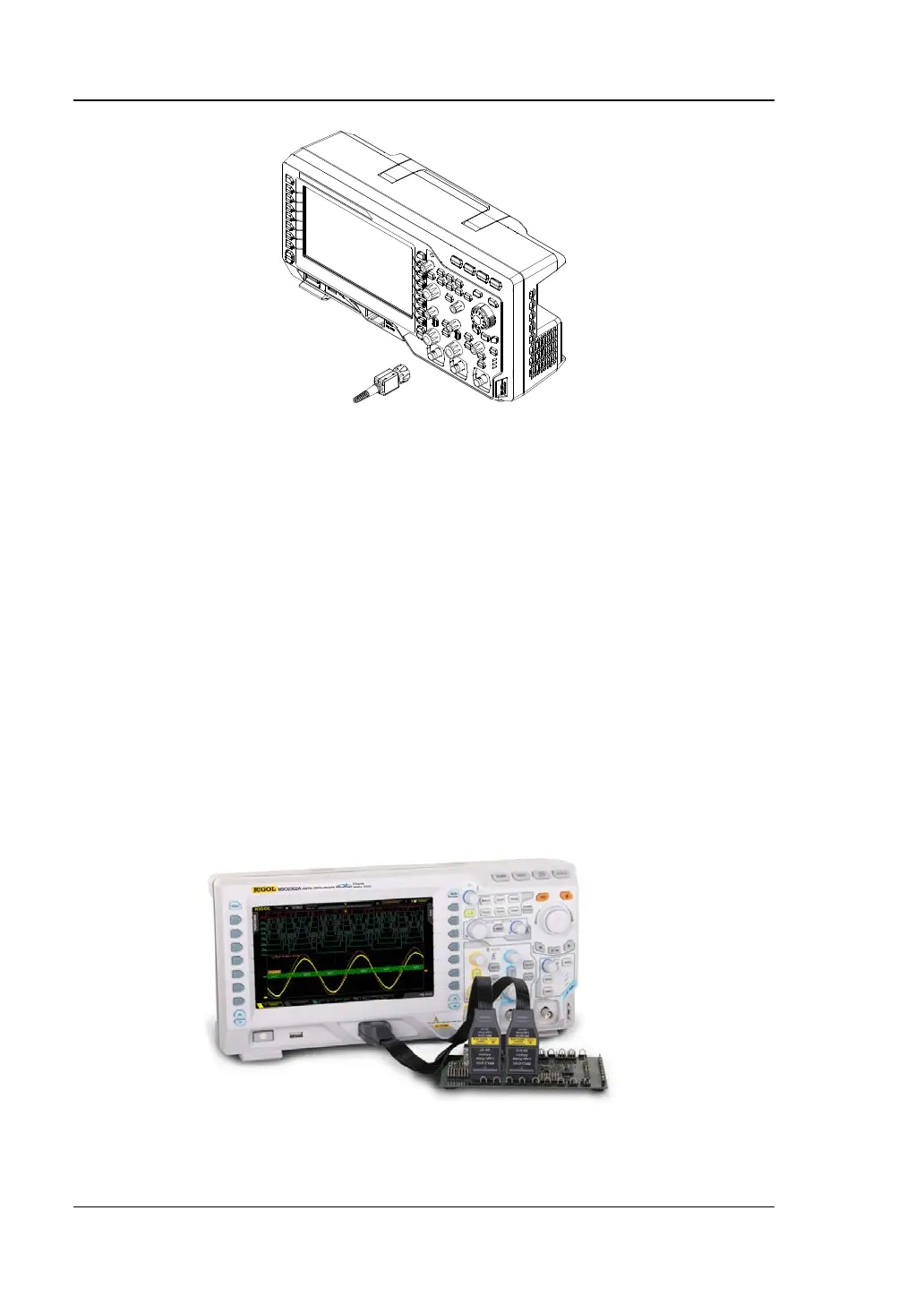

Figure 1-5 To Connect the Passive Probe
After you connect the passive probe, check the probe function and probe
compensation adjustment before making measurements. For detailed procedures,
refer to "Function Inspection" and "Probe Compensation" sections in this
manual.
Connect the logic probe:
1. Connect the single-wire terminal of the logic probe to the [LOGIC D0-D15]
digital channel interface on the front panel of MSO2000A in the correct direction.
2. Connect the signal under test to the other terminal of the logic probe. RIGOL
provides MSO2000A with the standard RPL2316 logic probe. To cater to different
application scenarios, RPL2316 provides three connection methods for the signal
under test. For details, please refer to the
RPL2316 Logic Probe User Guide
.

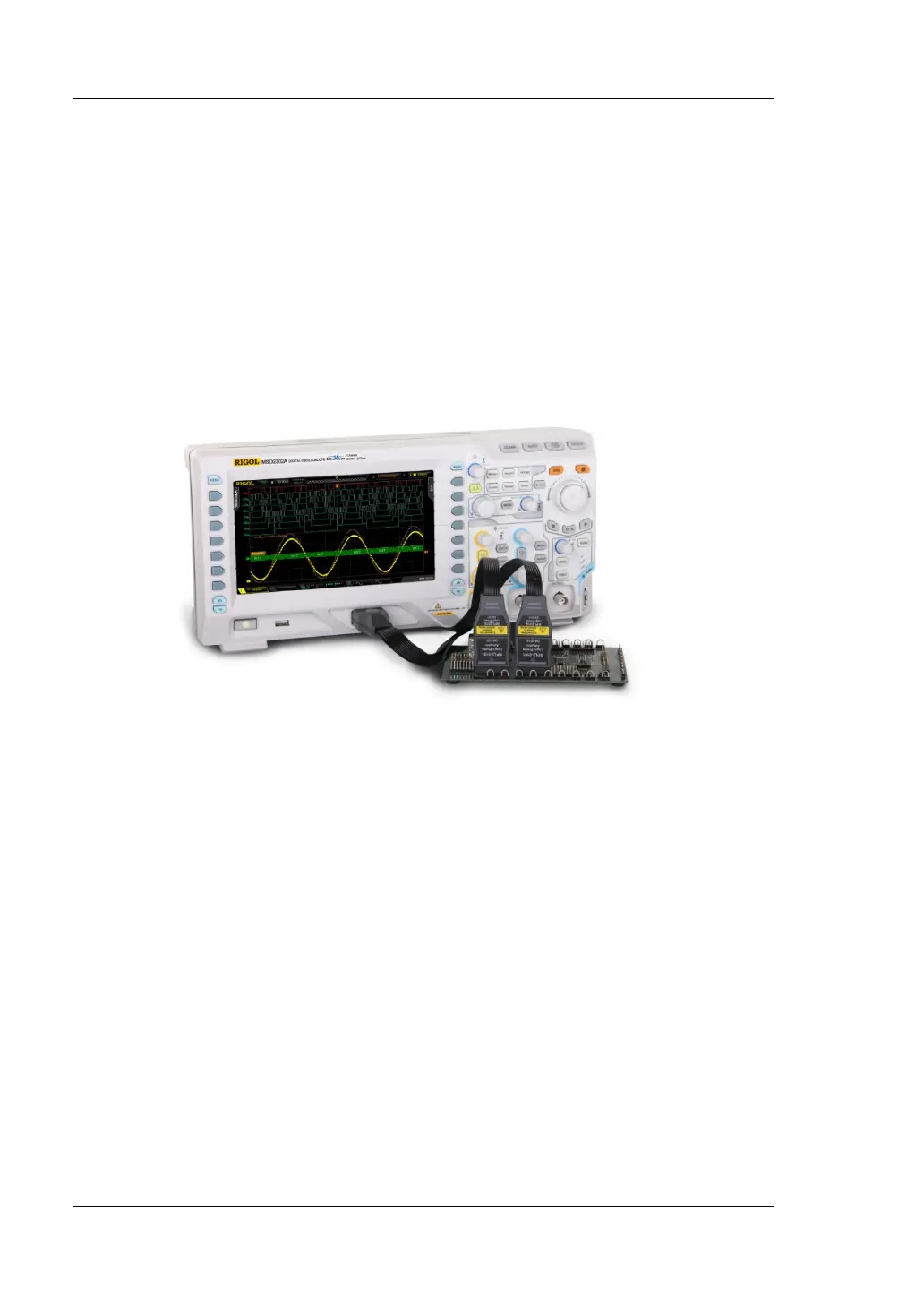

Figure 1-6 To Connect the Logic Probe
