RIGOL Chapter 1 Quick Start

1-4 MSO4000/DS4000 User’s Guide

To Prepare the Oscilloscope for Use

To Remove the Protective Cover

Before using the oscilloscope, remove the front panel protective cover by grasping

the transverse tabs on each side and pull them outward.

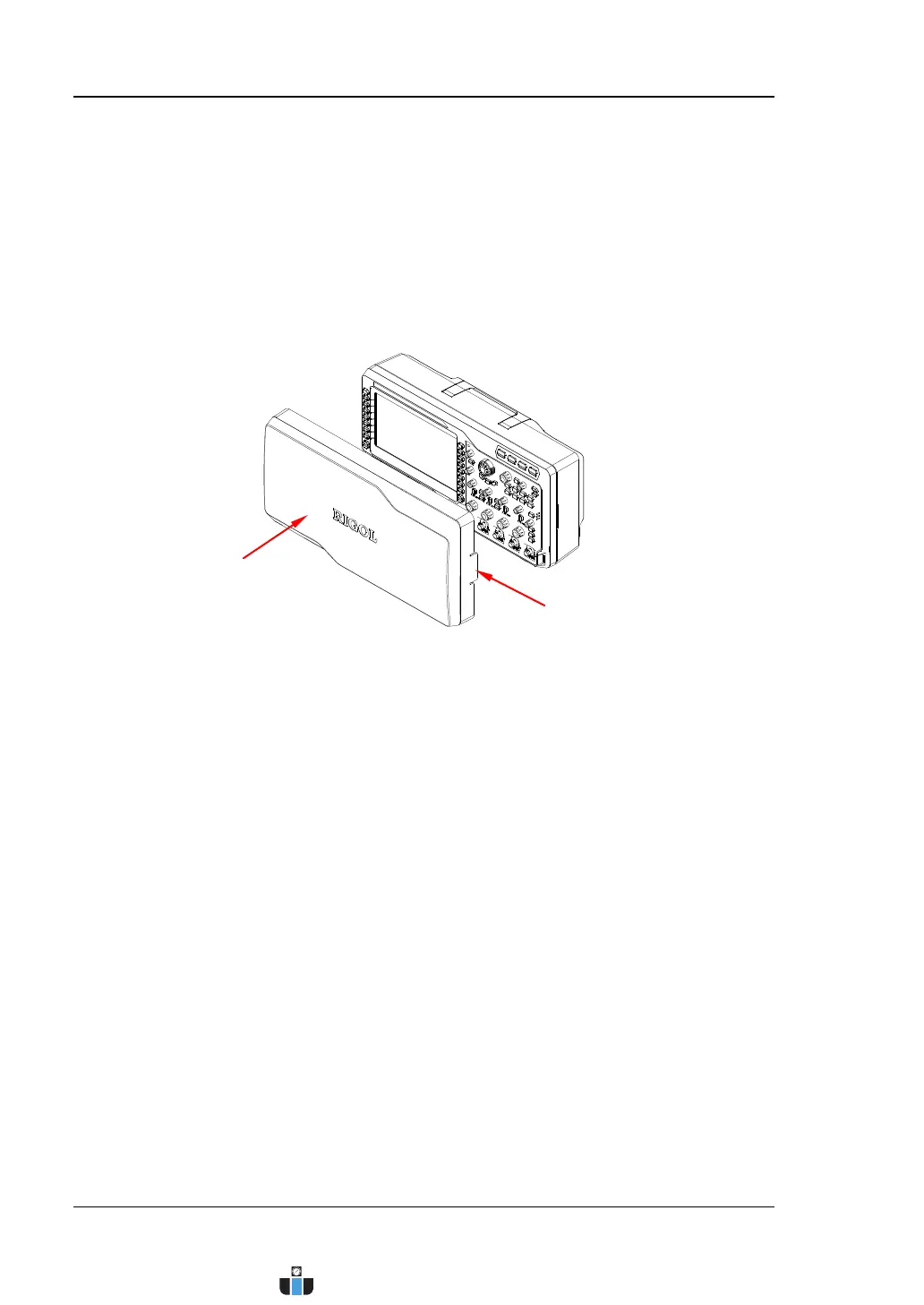

Figure 1-3 To Remove the Protective Cover

Front Panel Protective Cover

Transverse Tab
