RIGOL
DS6000 Quick Guide

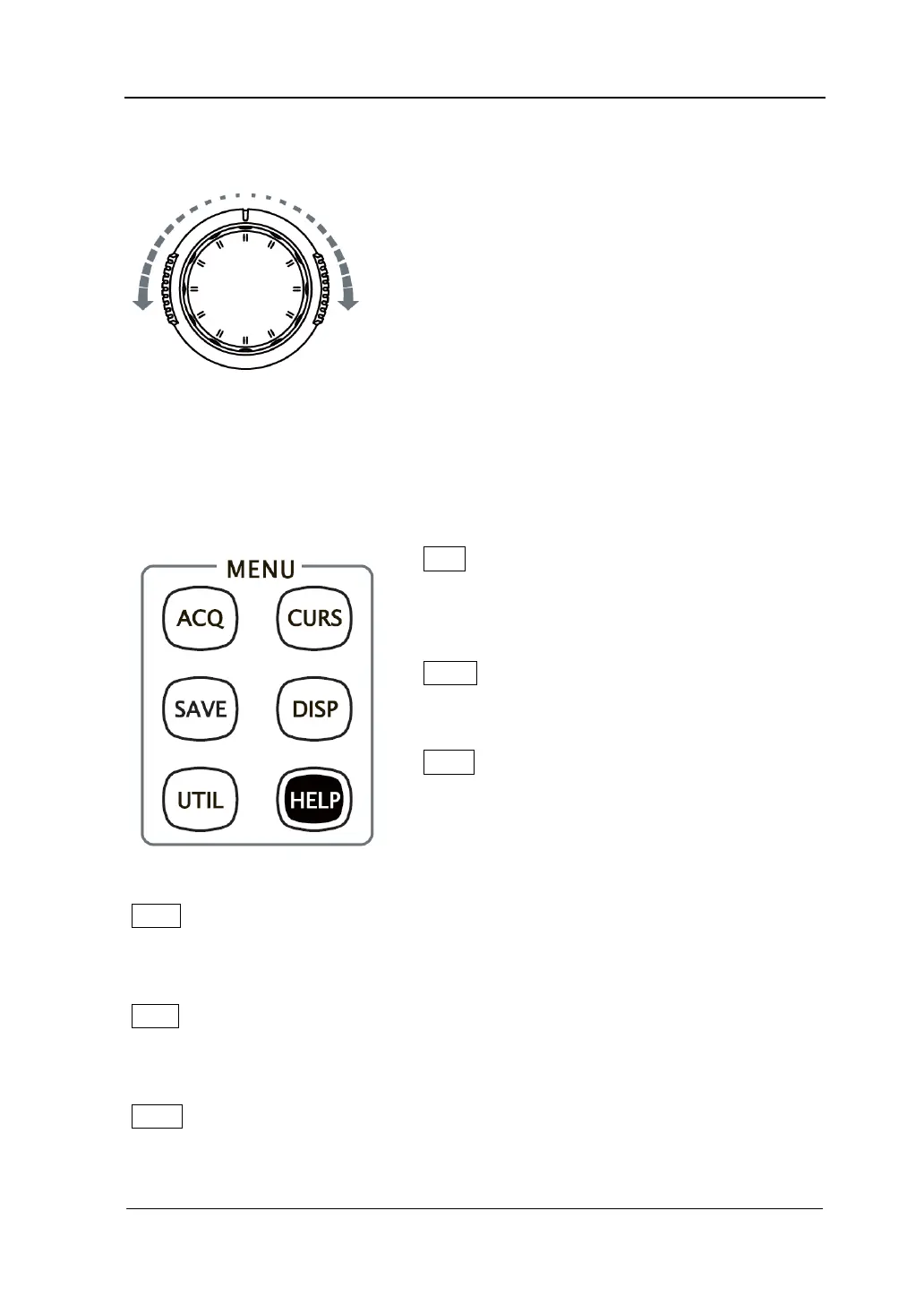

Navigation Knob
This knob provides quick Adjust/Locate function for
numerical parameters with relatively large settable
range. Turn clockwise (counter-clockwise) to increase
(reduce) the value. Note that the inner knob is used
for fine adjustment and the outer knob for coarse
adjustment.
For example, this knob can be used to quickly locate the waveform frame (“Current
Frame” menu) to be played back in the waveform playback function. Similar menus
include: trigger holdoff, pulse width setting, slope time etc.
Menu
ACQ: press this key to enter sample setting
menu to set the acquisition mode, the sampling
mode, the memory depth and the antialiasing
function of the oscilloscope.
CURS: press this key to enter cursor
measurement menu. The oscilloscope provides
three cursor modes: manual, track and auto.
SAVE: press this key to enter file store and
recall interface. The storable file types
including: traces, waveforms, setups, picture
and CSV. Support internal and external storage
as well as disk management.
DISP: press this key to enter display setting menu to set the display type,
persistence time, brightness, grid type, grid brightness and menu display time of
the waveform.
UTIL: press this key to enter the system function setting menu to set the
system-related functions or parameters, such as I/O setting, sound, language.
Support some advanced functions such as pass/fail test, record and print setting.
HELP: press this key to turn on the help interface. For detailed information, please
refer to the introduction in “To Use the Built-in Help System”.
To Next Page
