DS6000 Quick Guide
16

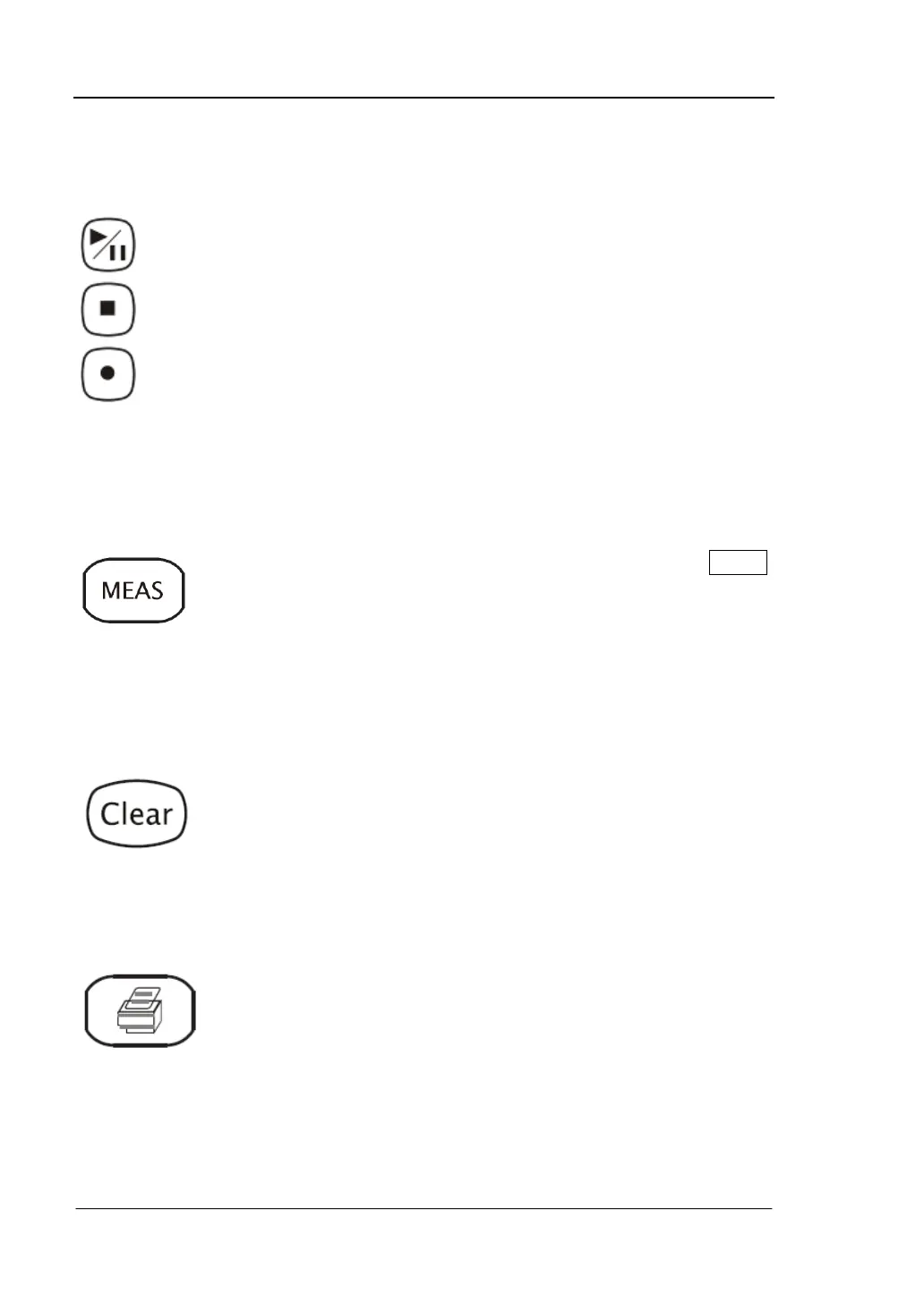

Record
Play/Pause: press this key to play the recorded or paused
waveform and press again to pause the play. The backlight is
illuminated in yellow.
Stop: press this key to stop the waveform in record or play back
mode. The backlight is illuminated in orange.
Record: press this key to start recording the waveform. The
backlight is illuminated in red.
MEAS
Press this key to enter the measurement menu which supports
measure setting, all measure, statistic and counter. Press the MENU
key at the left of the screen to quickly turn on the selecting menu of
the 22 measurement parameters and easily realize “one-key”
measurement of common parameters.
Clear
Press this key to clear all the waveforms on the screen. If the
oscilloscope is in “Run” state, the screen will be refreshed after that
and new waveforms will be displayed.
Print
Press this key to execute print function or save the screen in the
USB flash device. If the oscilloscope is currently connected to a
printer (PictBridge or normal) and the printer is in idle state, press
this key to execute print function. If no printer but an USB flash
device is currently connected, press this key to save the screen to
the USB flash device in “.bmp” format. When printer and USB flash
device are connected at the same time, the printer enjoys higher
priority.
