MSO2000A/DS2000A Quick Guide
To Prepare for Operation
To Adjust the Supporting Legs
Adjust the supporting legs properly to use them as stands to tilt the oscilloscope
upwards for stable placement of the oscilloscope as well as betteroperation and
observation.

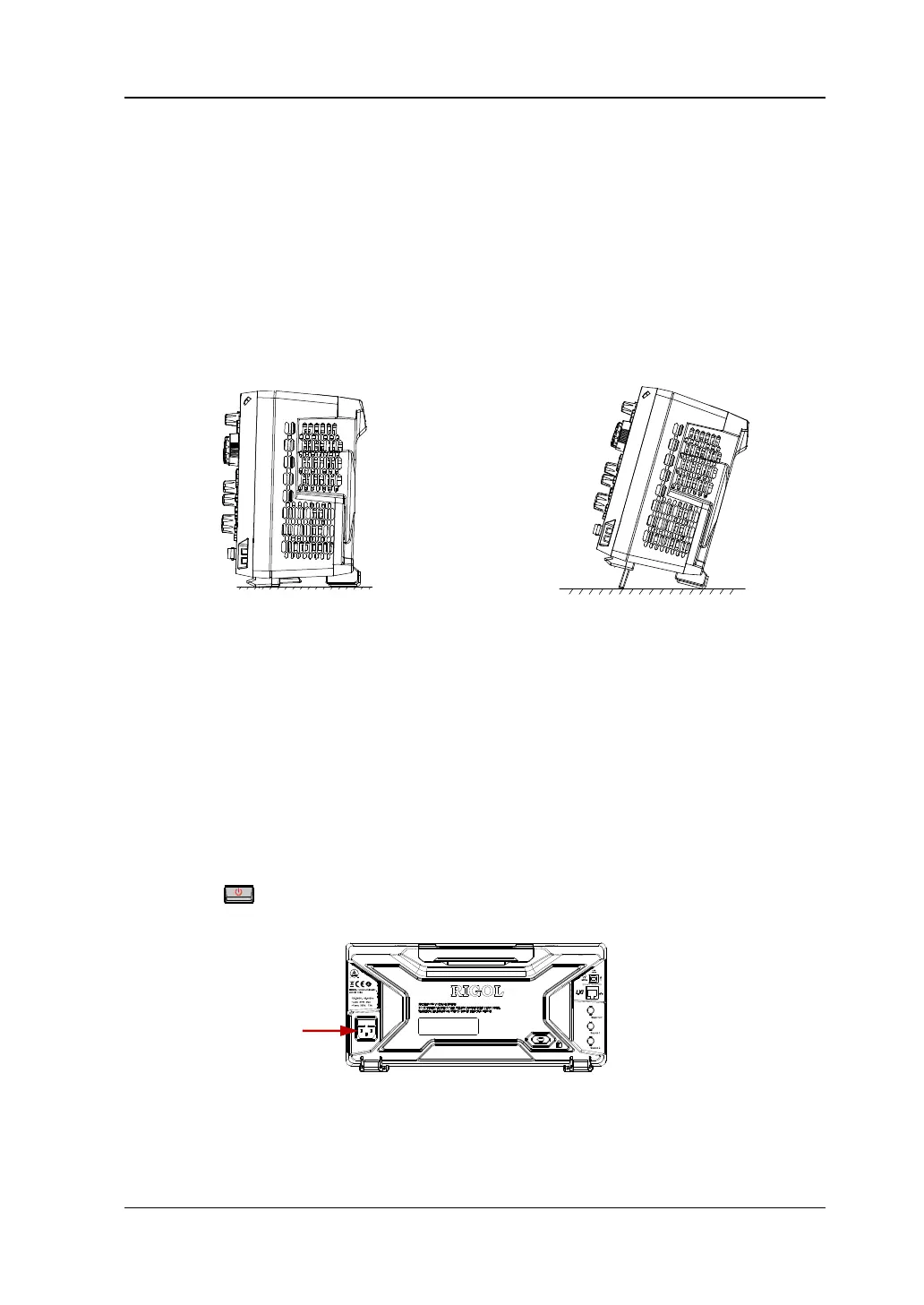

Figure 3 To Adjust the Supporting Legs
To Connect to AC Power Supply
This oscilloscope can accept100-240V, 45-440 Hz AC power supply. Please use the
power cord supplied with the accessories to connect the oscilloscope to the power
supplyas shown in the figure below. Whenthe oscilloscope is powered onand the
Power key at the lower-left corner of the front panel is blinking.
Figure 4 To Connect to AC Power Supply
