MSO2000A/DS2000A Quick Guide
8

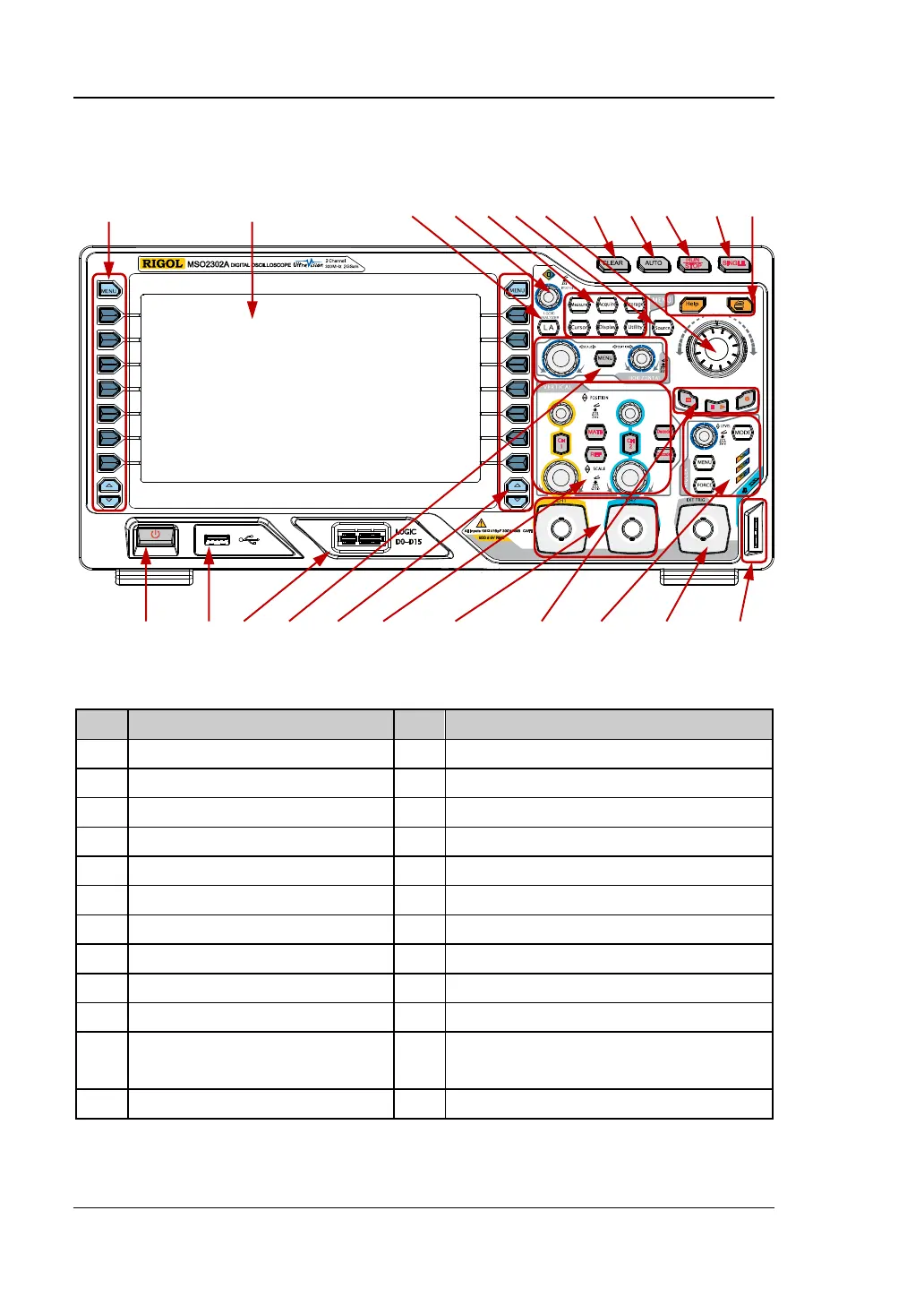

Front Panel Overview
Figure 10 Front Panel Overview
Table 1 Front Panel Description
No.
Description
No.
Description
1
Measurement Menu Softkeys
13
Power Key
2
LCD
14
USB HOST Interface
3
Logic Analysis Control Key
[1]
15
Digital Channel Input Interface
[1]
4
Multifunction Knob
16
HORIZONTAL Control Area
5
Function Menu Keys
17
Function Menu Softkeys
6
Signal Source
[2]
18
VERTICAL Control Area
7
Navigation Knob
19
Analog Channel Input Area
8
CLEAR
20
Waveform Record/Playback Control Keys
9
AUTO
21
TRIGGER Control Area
10
RUN/STOP
22
EXT TRIG Input Terminal
11
SINGLE
23
Probe Compensation Signal Output
Terminal/ Ground Terminal
12
Help/Print
--
--
Note
[1]
: Only applicable to MSO2000A and MSO2000A-S models.
Note
[2]
: Only applicable to the MSO2000A-S model.
3 4 5 6 7 8 9 10 11 12
1 2
(1) (2)
13 14 15 16 17 18 19 20 21 22 23
