RIGOL
MSO2000A/DS2000A Quick Guide
After you connect the passive probe, check the probe function and probe
compensation adjustment before making measurements. For detailed procedures,
refer to "Function Inspection" and "Probe Compensation" sections in this
manual.
Connect the Logic Probe:
1. Connect the single-wire terminal of the logic probe to the [LOGIC D0-D15]
digital channel terminalonthe front panel of MSO2000A in the correct direction.
2. Connect the other terminal of the logic probe tothe signal under test. RIGOL
provides MSO2000A with the standard RPL2316 logic probe. To cater to different
application scenarios, RPL2316 provides three connection methods for the signal
under test. For details, please refer to the
RPL2316 Logic Probe User’s Guide
.

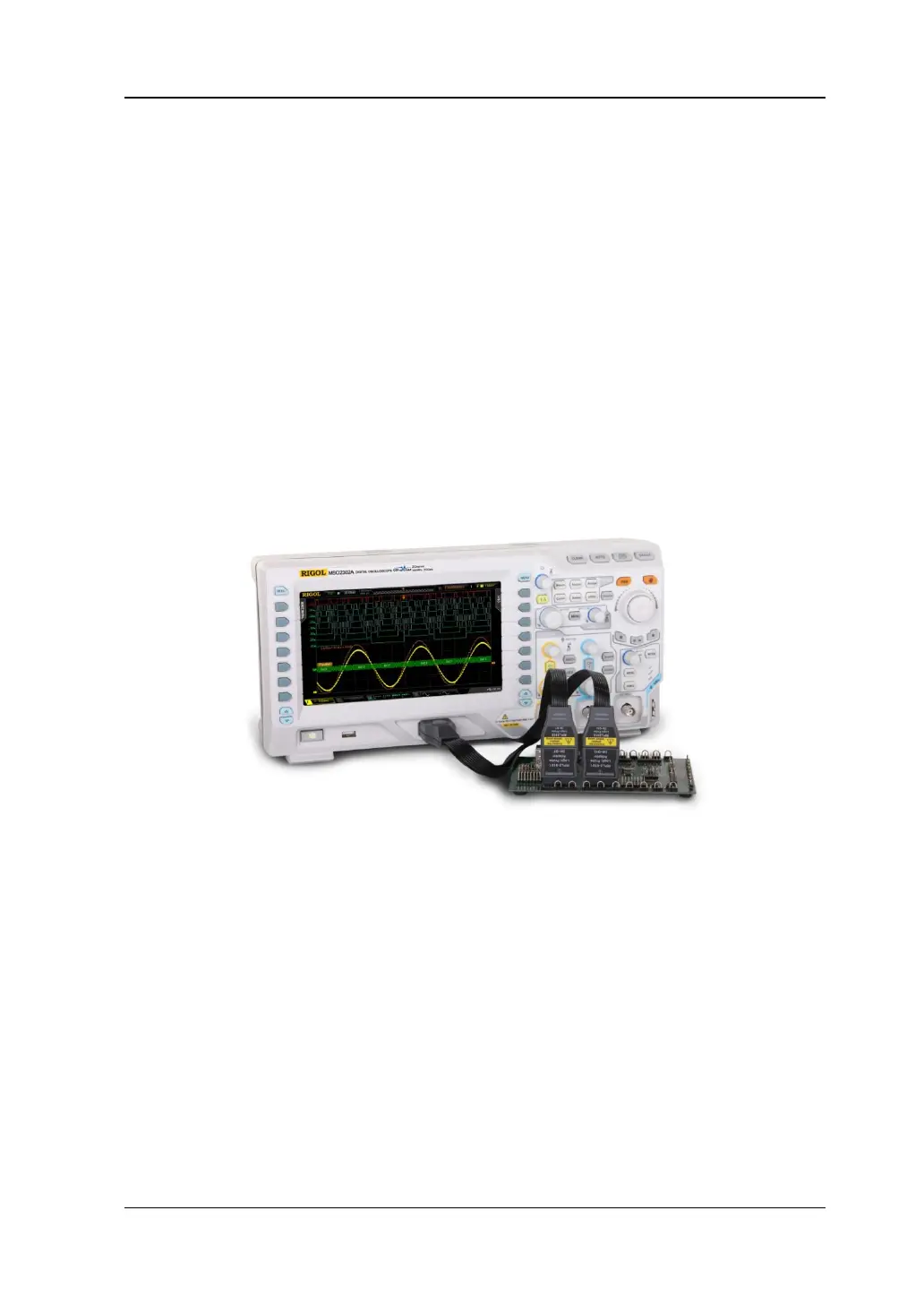

Figure 6 To Connect the Logic Probe
Note: The digital channel input terminal does not support hot plugging. Please do
not insert or pull out the logic probe when the instrument is in power-on state.
