Rigol DS8000-R Series Quick Guide

RIGOL
DS8000-R Quick Guide 17
English

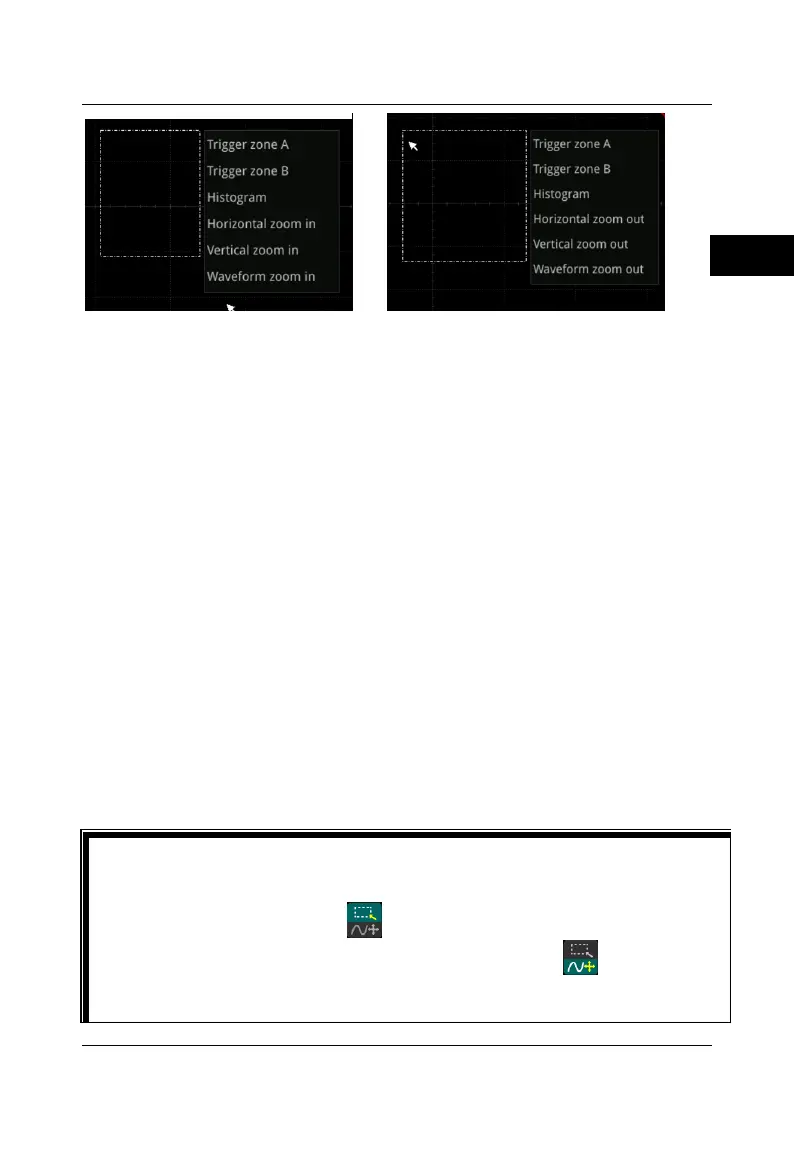

Figure 11 Rectangle Drawing
⚫ Select "Trigger zone A":
➢ Draw the region for Trigger zone A;
➢ Open Trigger zone A:
➢ Open the "Zone Trigger" menu.
⚫ Select "Trigger zone B":
➢ Draw the region for Trigger zone B;
➢ Open Trigger zone B:
➢ Open the "Zone Trigger" menu.
⚫ Select "Histogram":
➢ Draw the region for the histogram;
➢ Open the "Histogram" menu.
⚫ Select "Horizontal zoom in": expands the waveforms in the horizontal
direction. Select "Horizontal zoom out": compresses the waveforms in the
horizontal direction.
⚫ Select "Vertical zoom in": expands the waveforms in the vertical direction.
Select "Vertical zoom out": compresses the waveforms in the vertical
direction.
⚫ Select "Waveform zoom in": expands the waveforms both in the horizontal
and vertical direction. Select "Waveform zoom out": compresses the
waveforms both in the horizontal and vertical direction.
Tip
Click on the "Draw rect" icon to switch between the rectangle drawing and
waveform operation modes.
Click on the "Draw rect" icon, if is displayed, it indicates that the rectangle
drawing mode is enabled. Click on the "Draw rect" icon, if is displayed, it
indicates that the waveform operation mode is enabled. By default, the
waveform operation mode is enabled.
