Waveform Recording
Click or tap Record, then Operation is set to "Record".
After setup, click or tap the
key at the upper-right corner of the front panel to
perform the waveform recording.
Save Group
• Click or tap Save Group, then Operation is set to "Save Group".
• Under Save Group, select one or multiple items from "Save Image", "Save
Wave", and "Save Setup".
After setup, click or tap the key at the upper-right corner of the front panel to
save the selected items based on the settings. The location where the file is saved
depends on the
File Path setting in Storage menu. For details, please refer to
To Save
a File
.
20.9 Self-check
In Utility menu, click or tap Self Check to enter the "Self Check" menu. You can test
the following self-check items for the device.
Key Test
Click or tap Key Test to enter the key test interface (virtual front panel key), as shown
in the figure below.

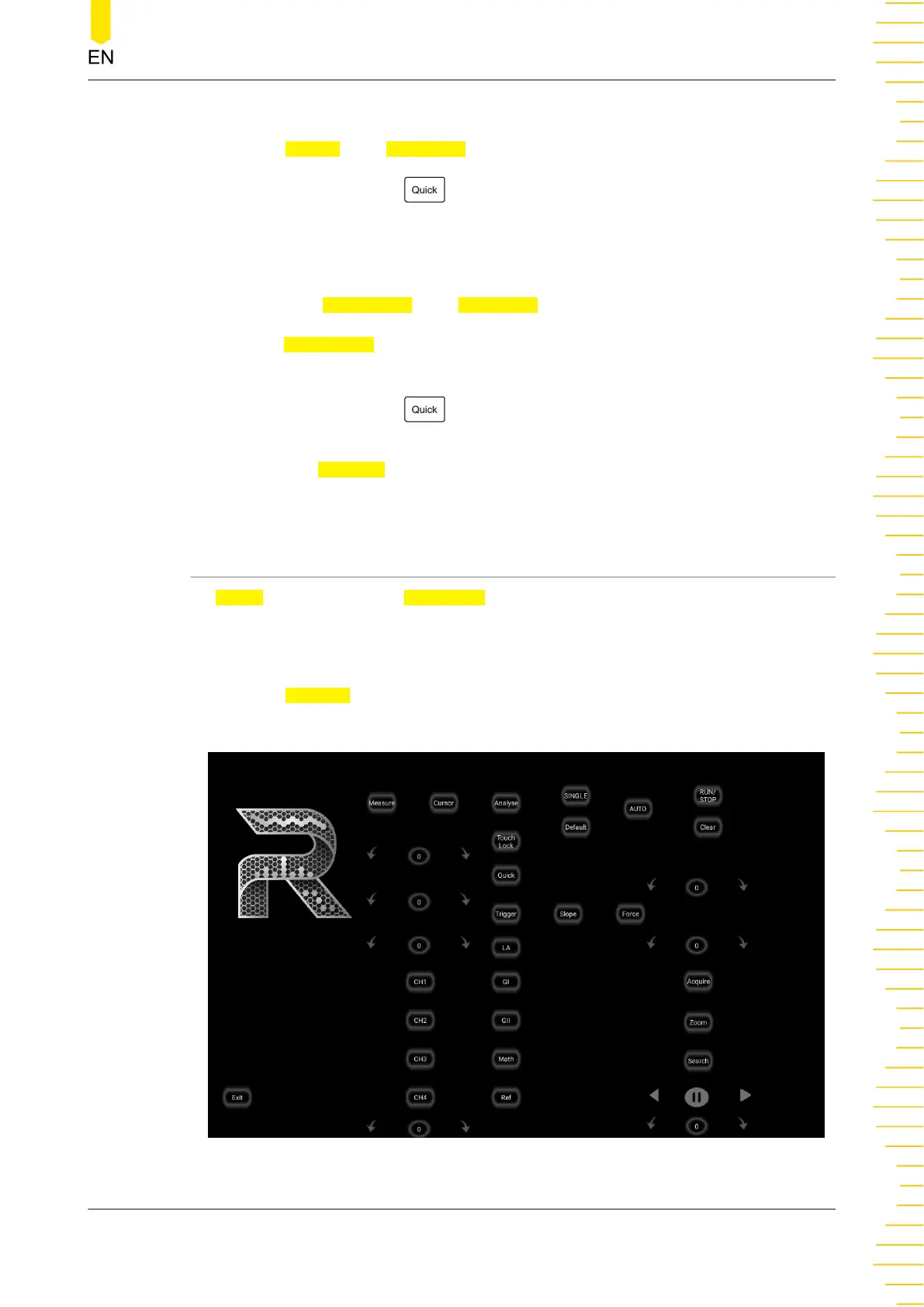

Figure 20.3 Key Test Interface
System Utility Function Setting
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
HDO1000 User Guide
243
