⚫ X Cursor

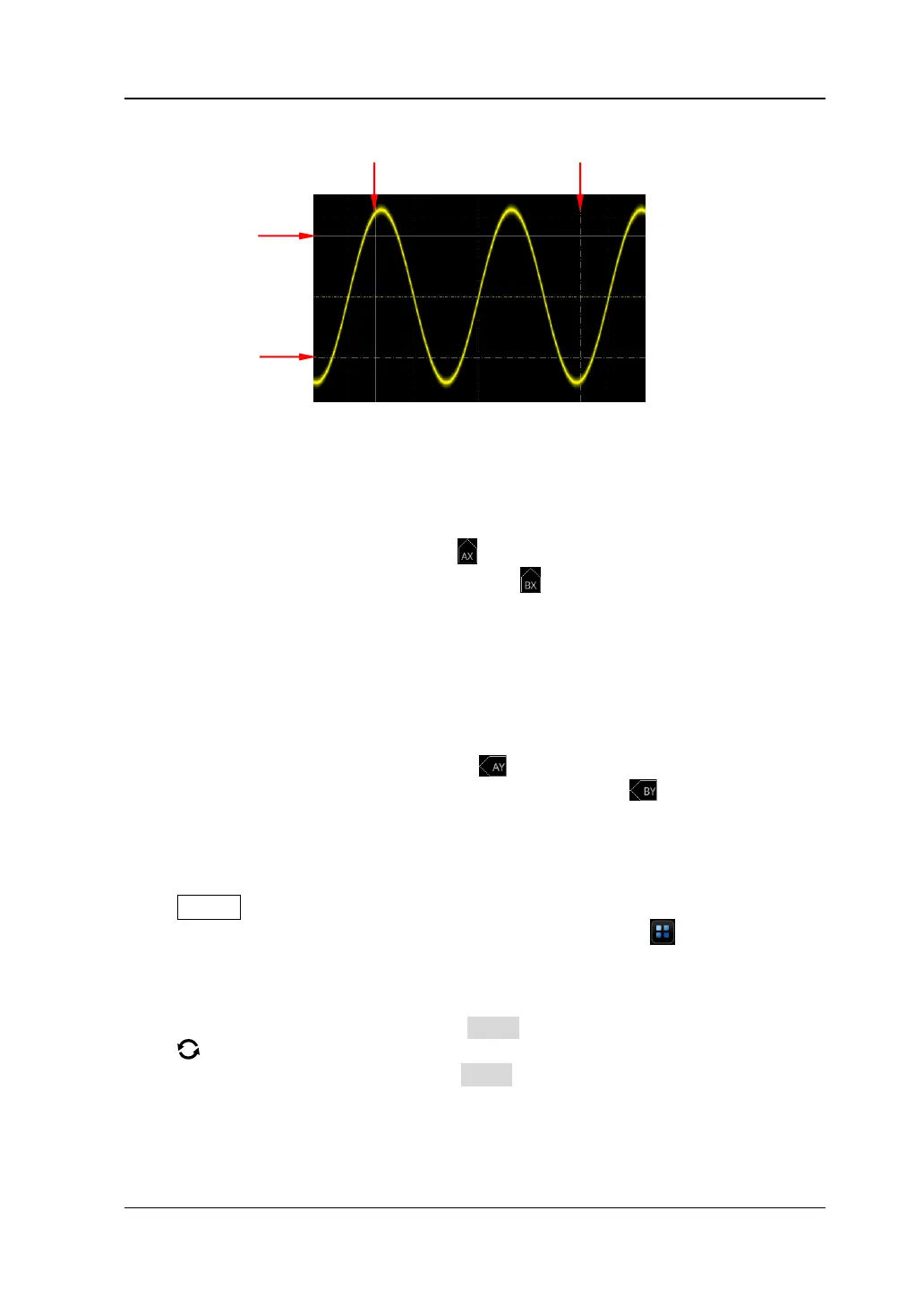

X cursor is a vertical solid/dotted line that is used to make horizontal
adjustments. It can be used to measure time (s), frequency (Hz), phase (°), and
ratio (%).
➢ Cursor A is a vertical solid line ( is displayed at the bottom of the screen),
and Cursor B is a vertical dotted line ( is displayed at the bottom of the
screen).
➢ In the XY cursor mode, X cursor is used to measure the waveform
amplitude of CH1.
⚫ Y Cursor
Y cursor is a horizontal solid/dotted line that is used to make vertical adjustment.
It can be used to measure amplitude (the unit is the same as that of the source
channel amplitude) and ratio (%).
➢ Cursor A is a horizontal solid line ( is displayed at the right section of the
screen), and Cursor B is a horizontal dotted line ( is displayed at the
right section of the screen).
➢ In the XY cursor mode, Y cursor is used to measure the waveform
amplitude of CH2.
Press Cursor on the front panel to open the cursor measurement menu, or enable
the touch screen and then tap the function navigation icon at the lower-left
corner of the screen to open the function navigation. Then, tap the "Cursor" icon to
open the cursor measurement menu.
In the cursor measurement menu, press Mode and then rotate the multifunction
knob to select the desired cursor mode (the default is "OFF"). Press down the
knob to select it. You can also press the Mode key continuously or enable the touch
screen to select the desired mode. The available modes are "Manual", "Track", "XY",
and "Measure". When you select "OFF", the cursor measurement function is
disabled.
