RIGOL Chapter 1 Quick Start
1-8 MSO7000/DS7000 User Guide
methods to connect the signal under test. For details, refer to
RPL2316 Logic
Probe User Guide
.

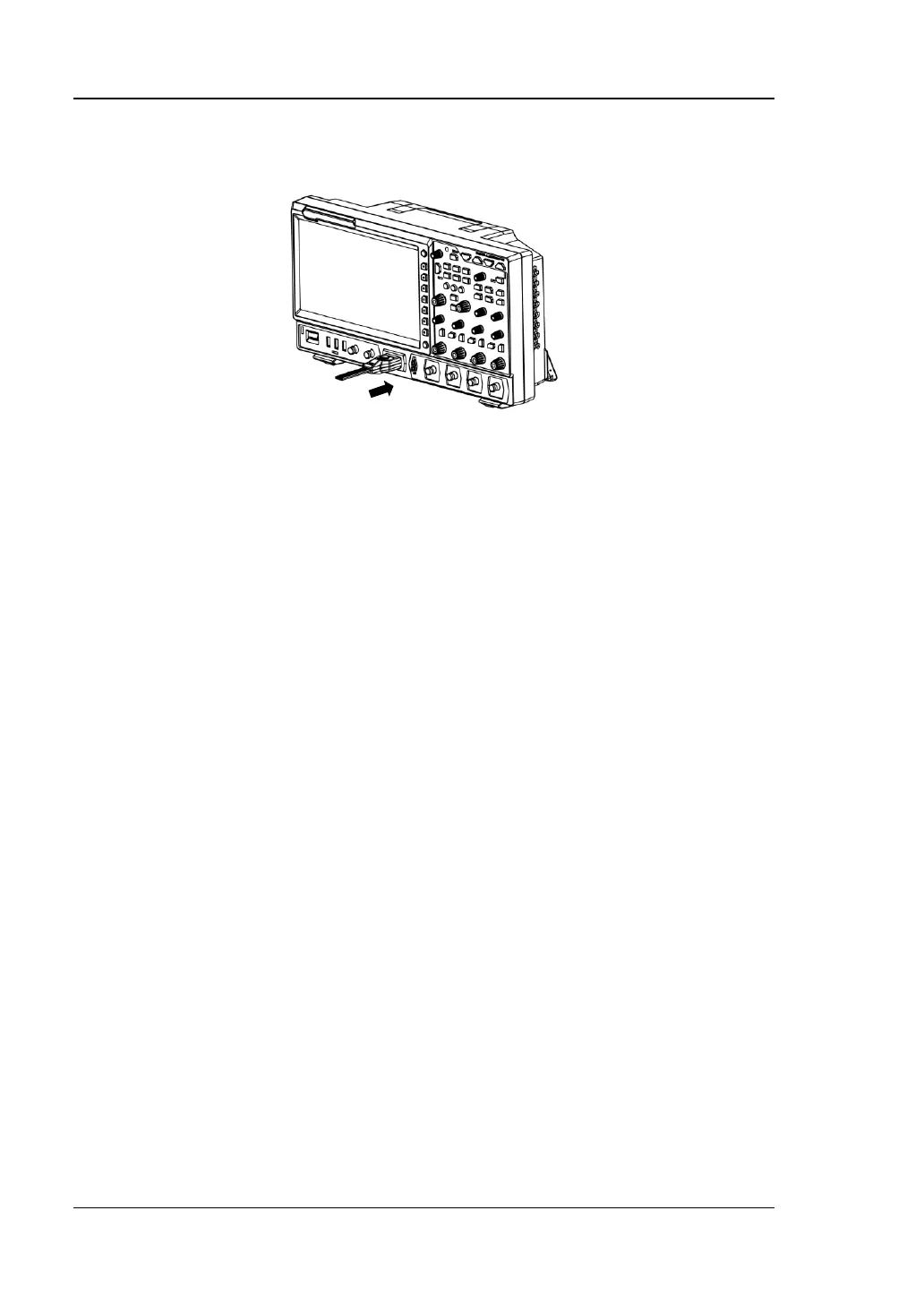

Figure 1-9 To Connect the Logic Probe
Note:
⚫ Before you connect the logic probe to the signal under test, connect logic
probe's adapter provided in the accessories to its corresponding channel group.
⚫ The digital channel input terminal does not support hot plugging. Please do not
insert or pull out the logic probe when the instrument is in power-on state.
