Chapter 20 Remote Control RIGOL

MSO7000/DS7000 User Guide 20-5

5. Control the instrument remotely

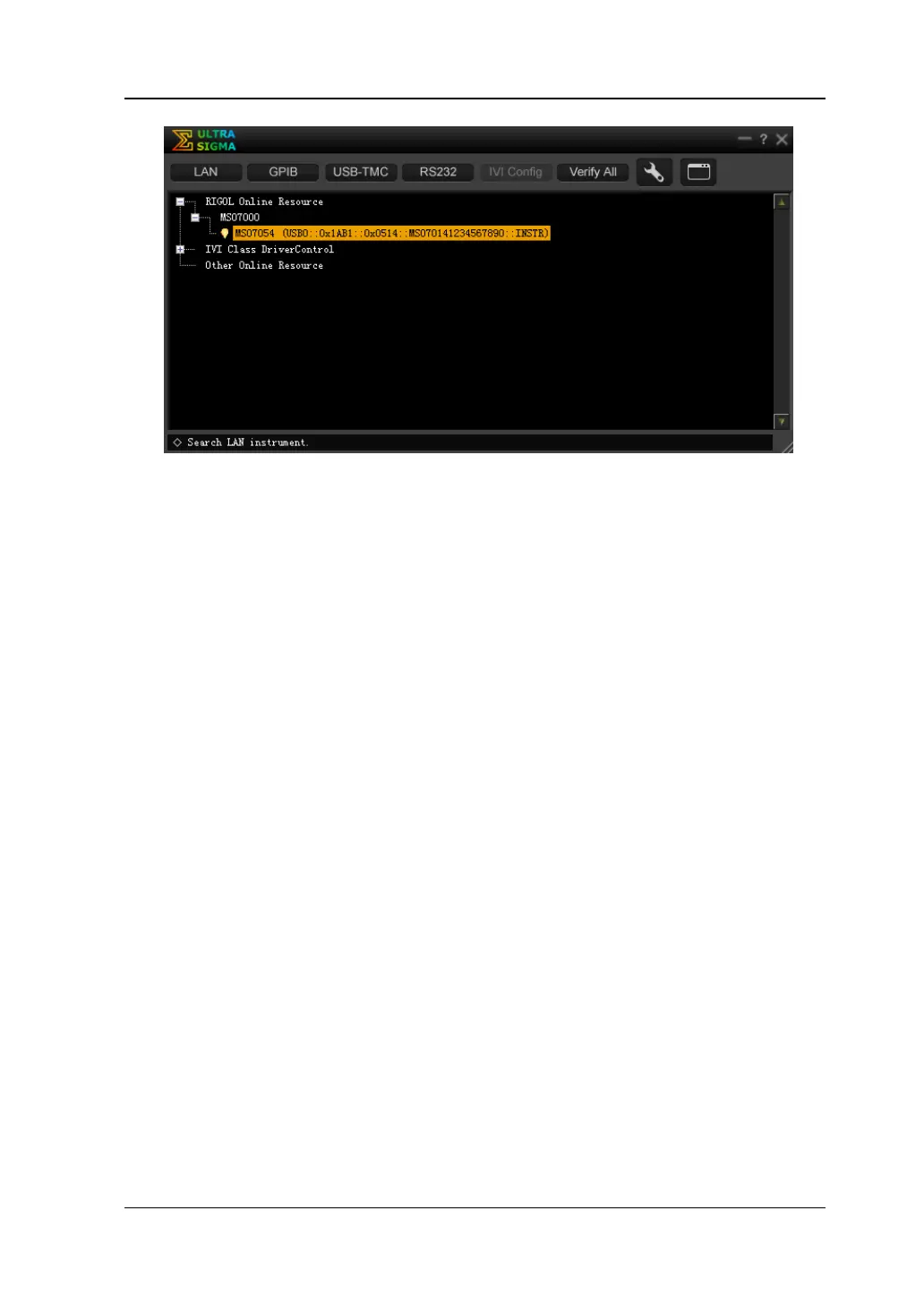

Right-click the resource name "MSO7054

(USB0::0x1AB1::0x0514::MSO70141234567890::INSTR)" and select "SCPI

Panel Control" to turn on the remote command control panel, through which you

can send commands and read data.
