Chapter 21 Remote Control
RIGOL
MSO8000 User Guide
21

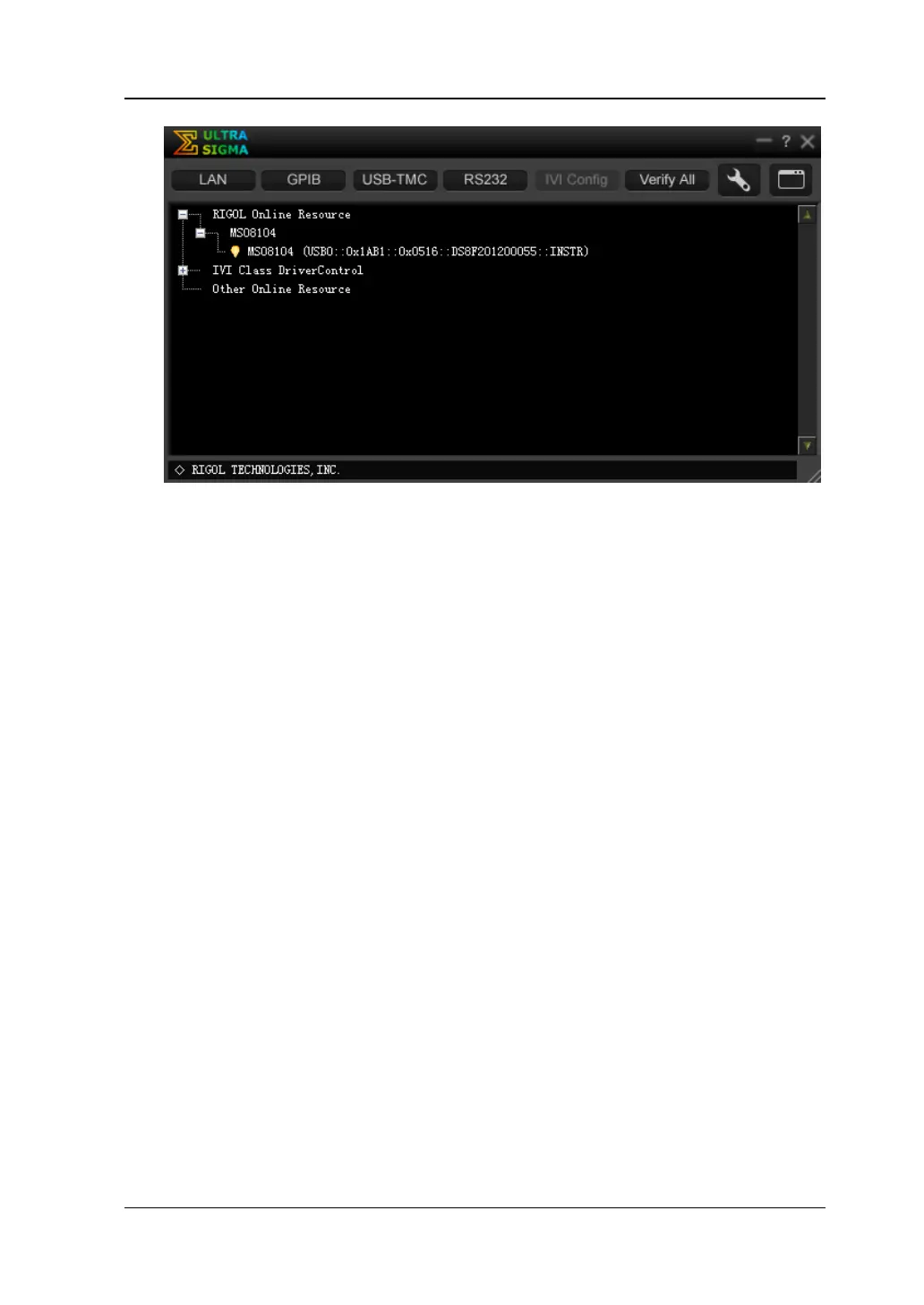

-5
5.
Control
the instru
ment remotel
y
Right
-c
lick the
resour
ce name
"MSO8104
(USB0::0x1
A
B1::0x0516
::
DS8F
20120005
5::INSTR)"
and sele
c
t "SCPI P
anel
Control"
to turn on the
remote comm
and cont
rol pa
nel, thr
ough which
you
can
send com
mands and
read
data.
384
386
