Riken Keiki GX-2009 User Manual

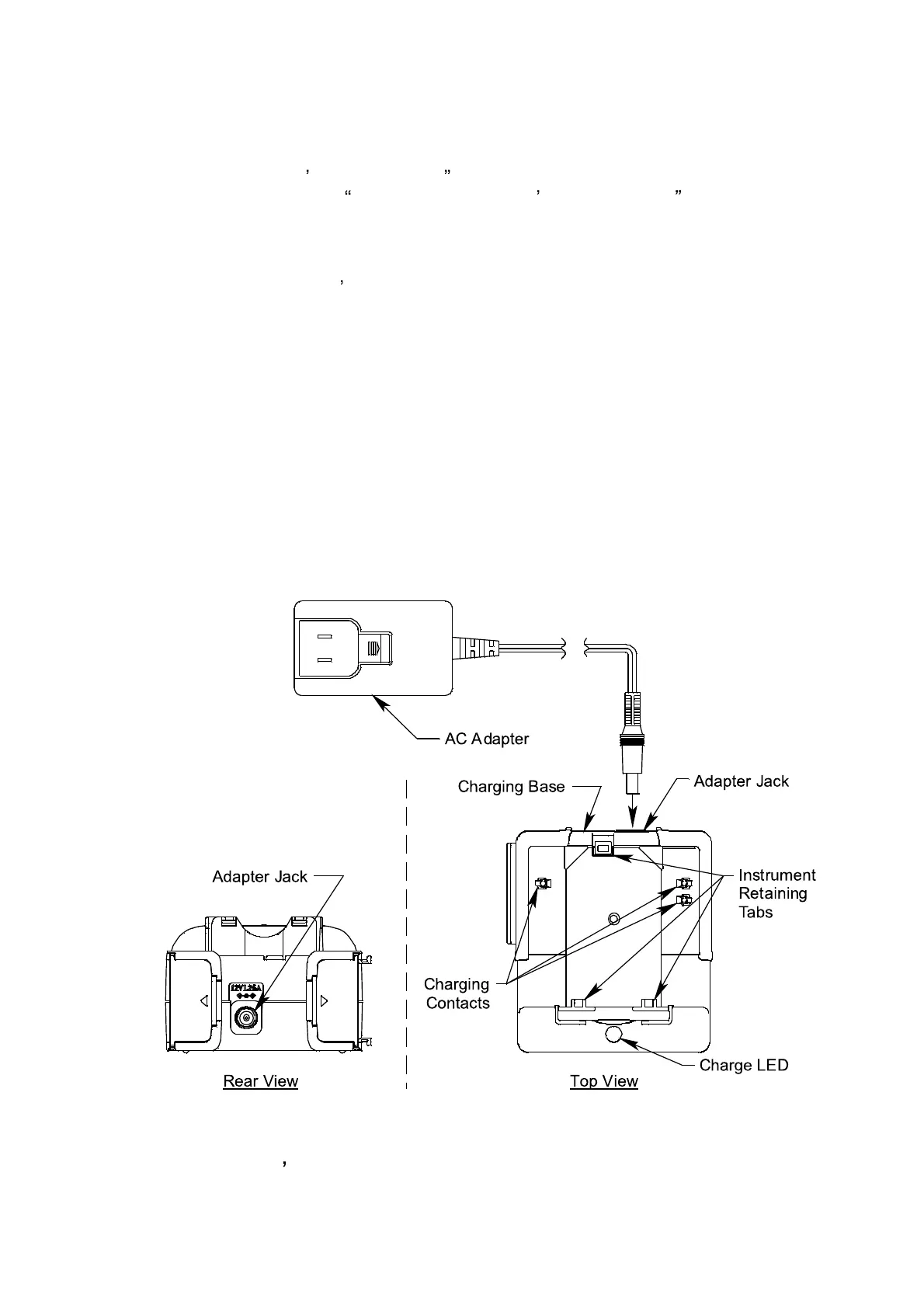

Figure 4 : GX-2009 Charging Station, Single Instrument Station
GX-2009 Operator
s Manual 15De s c riptio n
GX-2009 s NiMH Batteries on page 51 for instructions to recharge the
batteries and Replacing the GX-2009 s NiMH Batteries on page
55 for
instructions to replace the batteries.
Charging Station
The GX-2009 s NiMH batteries are c harged with the GX-2009 Charging
Statio n. There are two types o f c harging statio ns available, the standard
AC powered charging station and the optional vehicle plug DC powered
charging station.
AC Powered Charging Station
The standard AC po wered c harging s tatio n is availab le in c o nfiguratio ns
that charge from one to five instruments at a time. The single instrument
charging station consists of one instrument charging base and an AC
adapter. The AC adapter for the standard c harging station plugs into a
115 VAC wall outlet and connects to the charging station with a jack on
the end of a five foot DC output cable. The AC adapter will also work for
100 VAC or 220 VAC if an appropriate plug adapter is provided. The single
instrument AC charging station is shown in Figure 4.
12
48
52
